Supervisor with "NSX + CTGW/Edge/T0"

This section describes the procedures for provisioning and managing Network Services within a VKS Namespace utilizing an "NSX + CTGW/Edge/T0" architecture inside a vSphere environment.

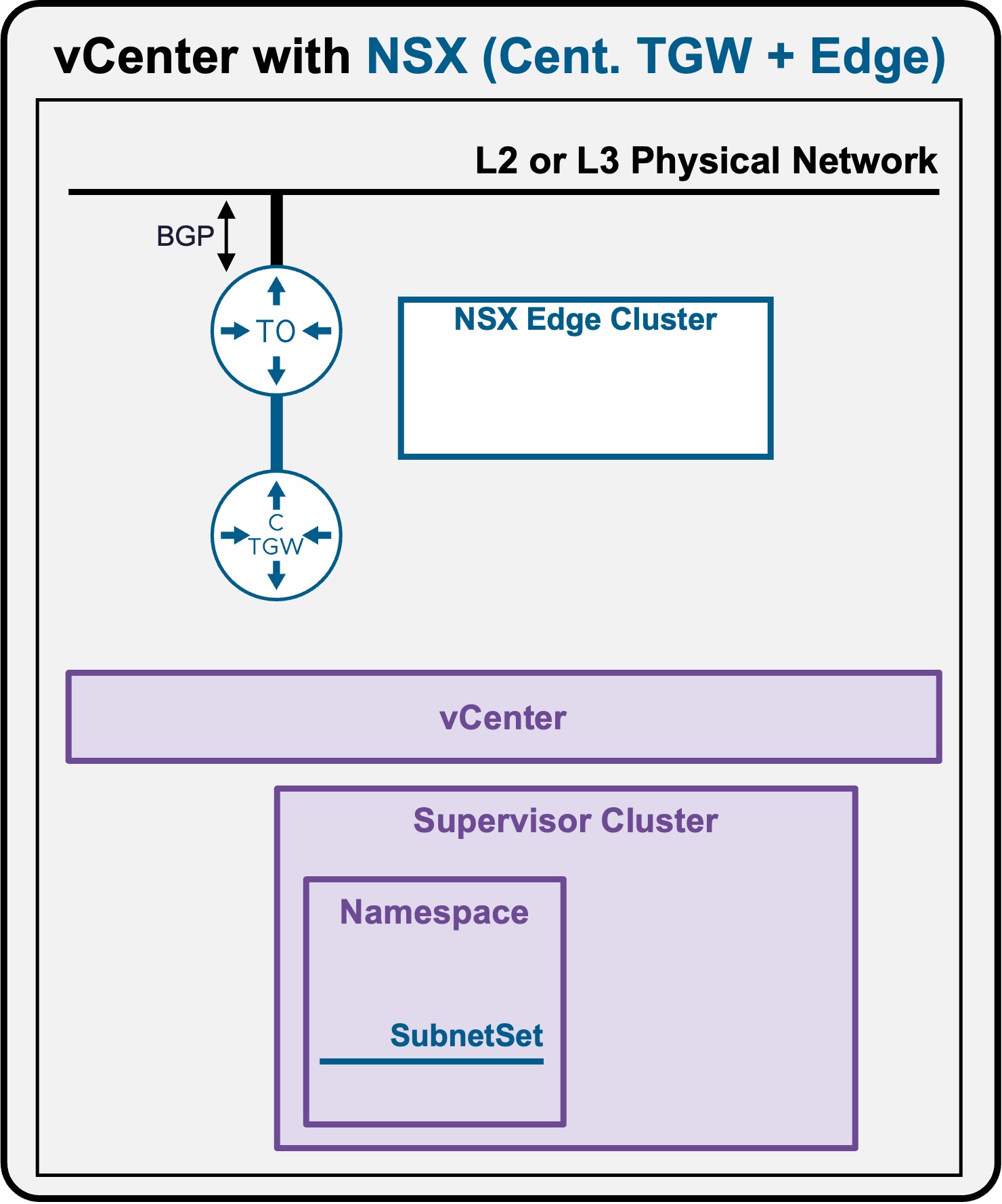

VDS Architecture

Network Services - Subnetsets

A SubnetSet provides dynamic, automated scaling functionality for subnets:

  • Scale Out: As soon as a subnet within the SubnetSet consumes its available IP capacity, a new subnet is automatically provisioned.
  • Scale In: Conversely, when a subnet becomes completely empty (no workload attached to it), it is automatically deleted.

For more information about Subnets settings review the VPC Subnet Overlay page.

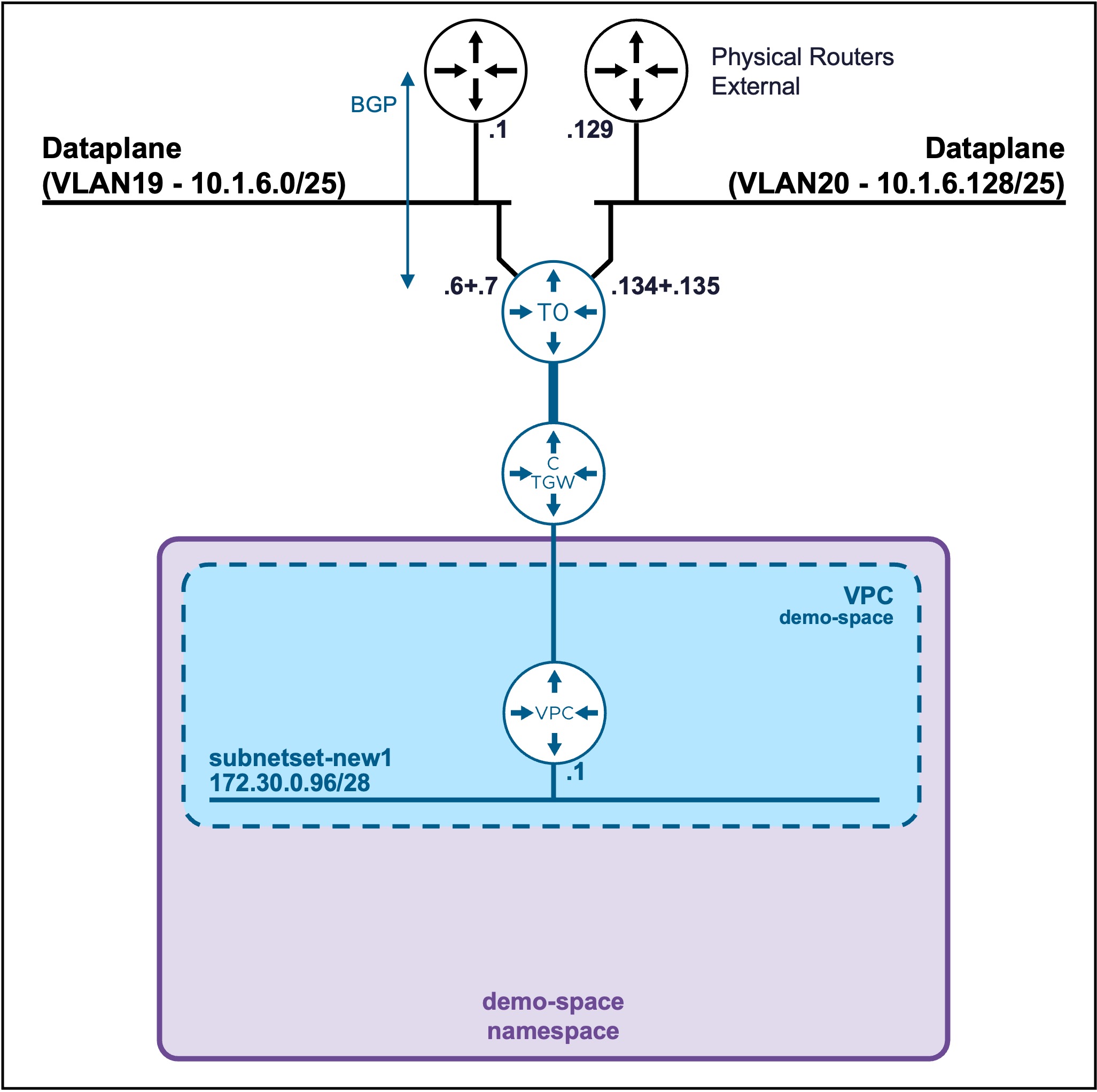

Topology

Create SubnetSet

Navigate to vCenter > Supervisor Management > Supervisors, select your target Supervisor, click the Namespaces tab, and select your specific Namespace.
Under the Resources card, click Network - Go to Service.
Network Service

  1. Create New SubnetSet
    Navigate to SubnetSets, and click New SubnetSet.
    Create Subnet

Validate Subnetset

Click on the newly created Subnetset, and navigate to Subnets to view its current subnets CIDR and VPC Gateway. Created Subnet

Subnet list empty

SubnetSets automatically scale in/out the subnets.
To have a subnet in a SubnetSet, you need to deploy first at least 1 VM / K8s in the SubnetSet.
