Supervisor with "NSX + DTGW/VNA"

This section describes the procedures for deploying an application (VMs/K8s) into the VKS Namespace utilizing an "NSX + DTGW/VNA" architecture inside a vSphere environment.

VDS Architecture

Deploy App (VMs)

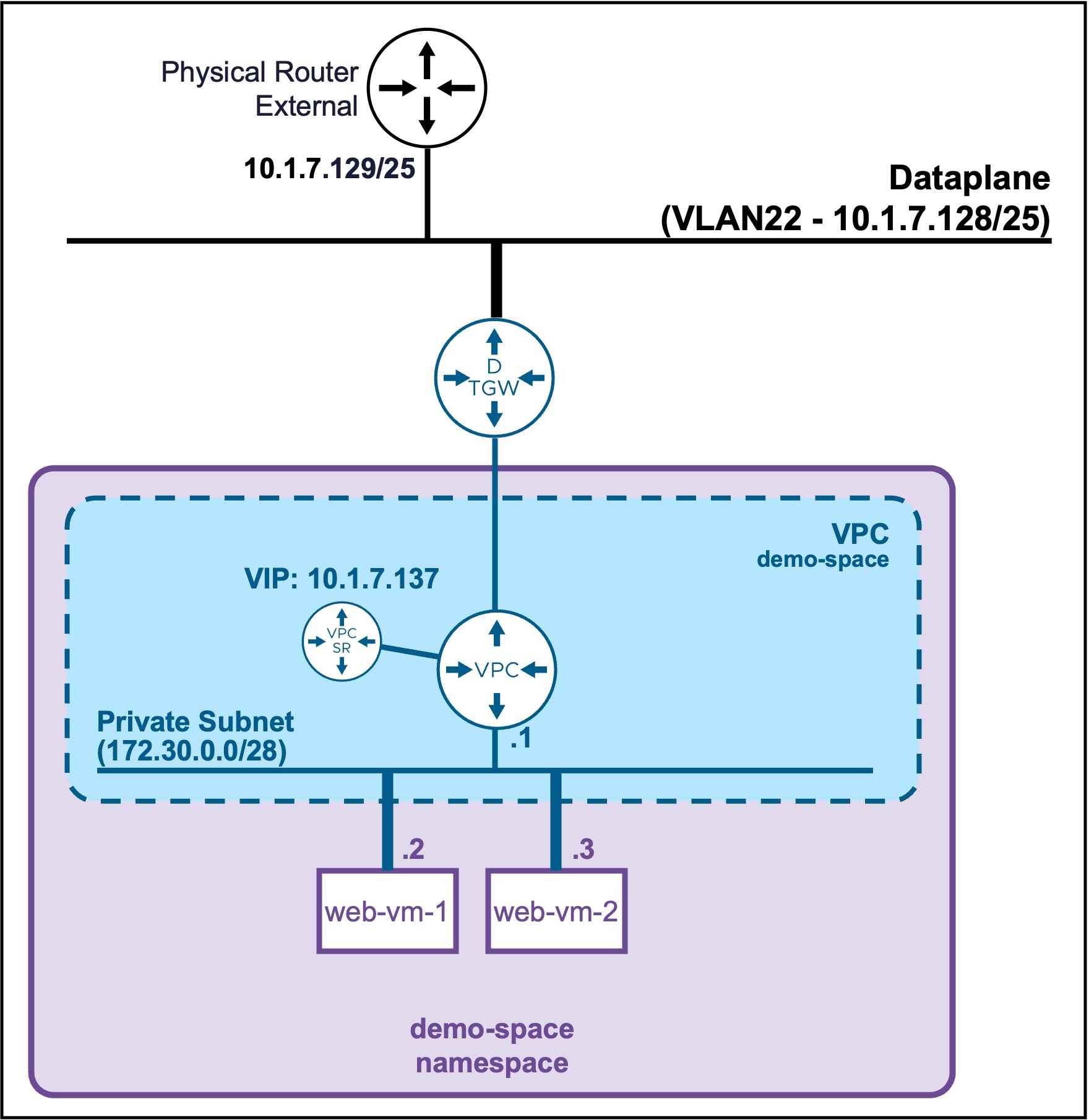

Topology

Client Operating System

While the command outputs below are captured from a Windows client, the vcf and kubectl CLI tools operate identically across Linux and macOS environments.

Deploy a Full Application (Load Balancer + VMs)

Connect to Supervisor Namespace

See Namespace Access via CLI

Create application (LB + 2 VMs apache) yaml file

Create file "my-web-farm.yaml"

my-web-farm.yaml file
apiVersion: v1
kind: Secret
metadata:
  name: ubuntu-cloud-init
  namespace: demo-space
stringData:
  user-data: |
    #cloud-config
    package_update: true
    packages:
      - apache2
      - unzip
      - open-vm-tools
      - net-tools
      - php
      - libapache2-mod-php

    # Create the user and add to sudo group
    users:
      - default
      - name: demouser
        groups: sudo
        shell: /bin/bash
        lock_passwd: false

    # Set the plain-text password and prevent it from expiring immediately
    chpasswd:
      list: |
        demouser:VMware123!VMware123!
      expire: false

    # Allow password authentication over SSH
    ssh_pwauth: true

    # Overwrite the default Apache page to show the VM hostname
    runcmd:
      - echo "<h1>Hello from $(hostname)</h1>" > /var/www/html/index.html
      - systemctl enable --now apache2
      - iptables -I INPUT 1 -p tcp --dport 80 -j ACCEPT

---
apiVersion: vmoperator.vmware.com/v1alpha5
kind: VirtualMachine
metadata:
  name: web-vm-1
  namespace: demo-space
  labels:
    app: web-pool                  # <-- The label tying it to the Load Balancer
spec:
  className: best-effort-small
  imageName: noble-server-cloudimg-amd64
  storageClass: vsan-default-storage-policy
  powerState: PoweredOn
  bootstrap:
    cloudInit:
      rawCloudConfig:
        name: ubuntu-cloud-init
        key: user-data

---
apiVersion: vmoperator.vmware.com/v1alpha5
kind: VirtualMachine
metadata:
  name: web-vm-2
  namespace: demo-space
  labels:
    app: web-pool                  # <-- The label tying it to the Load Balancer
spec:
  className: best-effort-small
  imageName: noble-server-cloudimg-amd64
  storageClass: vsan-default-storage-policy
  powerState: PoweredOn
  bootstrap:
    cloudInit:
      rawCloudConfig:
        name: ubuntu-cloud-init
        key: user-data

---
apiVersion: vmoperator.vmware.com/v1alpha5
kind: VirtualMachineService
metadata:
  name: web-lb-vip
  namespace: demo-space
spec:
  type: LoadBalancer
  ports:
    - name: http
      port: 80
      targetPort: 80
      protocol: TCP
  selector:
    app: web-pool

Deploy the application (LB + 2 VMs apache)

kubectl apply -f my-web-farm.yaml
Output example

PS C:\Users\Administrator\Documents> kubectl apply -f my-web-vm.yaml
secret/ubuntu-cloud-init created
virtualmachine.vmoperator.vmware.com/web-vm-1 created
virtualmachine.vmoperator.vmware.com/web-vm-2 created
virtualmachineservice.vmoperator.vmware.com/web-lb-vip created

Validate deployment of the application (LB + 2 VMs apache)

  • Check application VIP

    kubectl get service web-lb-vip

    Output example

    PS C:\Users\Administrator\Documents> kubectl get service web-lb-vip
NAME         TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
web-lb-vip   LoadBalancer   172.29.143.82   10.1.7.137    80/TCP    24s

    Load Balancer VM pool status

    The Load Balancer does not offer VM pool member healthchecks.
    If the VM or the application within the VM crashes, the load balancer will still use that member.

  • Check application VMs

    kubectl get virtualmachines -o wide

    Output example

    PS C:\Users\Administrator\Documents> kubectl get virtualmachines -o wide
NAME       POWER-STATE   CLASS               IMAGE                   PRIMARY-IP4   AGE
web-vm-1   PoweredOn     best-effort-small   vmi-4143a3379f59e4a48   172.30.0.3    46s
web-vm-2   PoweredOn     best-effort-small   vmi-4143a3379f59e4a48   172.30.0.4    46

Access the application (LB + 2 VMs apache)

curl http://10.1.7.137
Output example

PS C:\Users\Administrator\Documents> curl http://10.1.7.137
<h1>Hello from web-vm-1</h1>

PS C:\Users\Administrator\Documents> curl http://10.1.7.137
<h1>Hello from web-vm-2</h1>
