Supervisor with "NSX + DTGW/VNA"

This section describes the procedures for provisioning and managing Network Services within a VKS Namespace utilizing an "NSX + DTGW/VNA" architecture inside a vSphere environment.

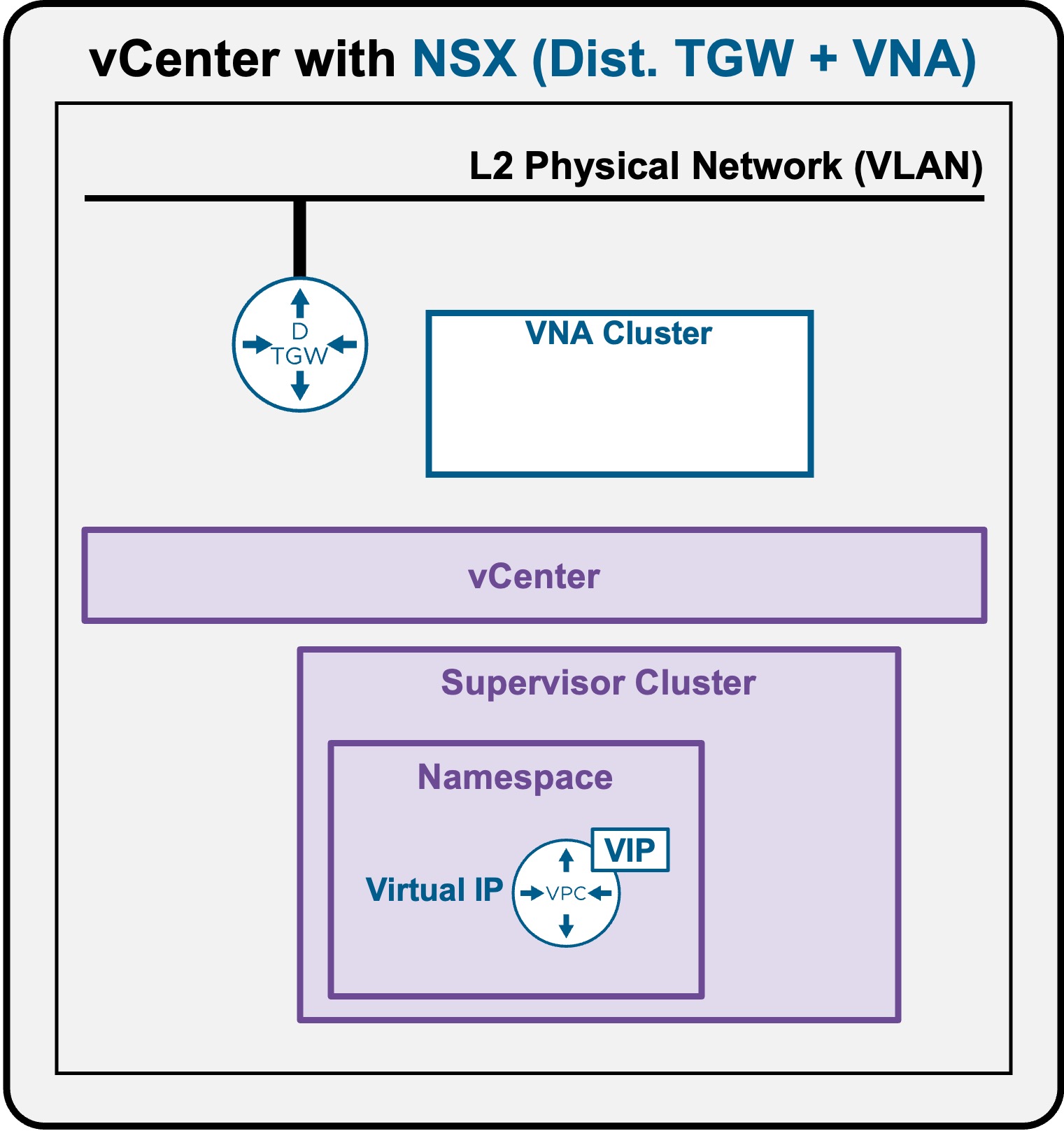

VDS Architecture

Network Services: VM Load Balancers

The primary use case for configuring a VM Load Balancer is to efficiently distribute inbound network traffic across a designated pool of backend Virtual Machines.

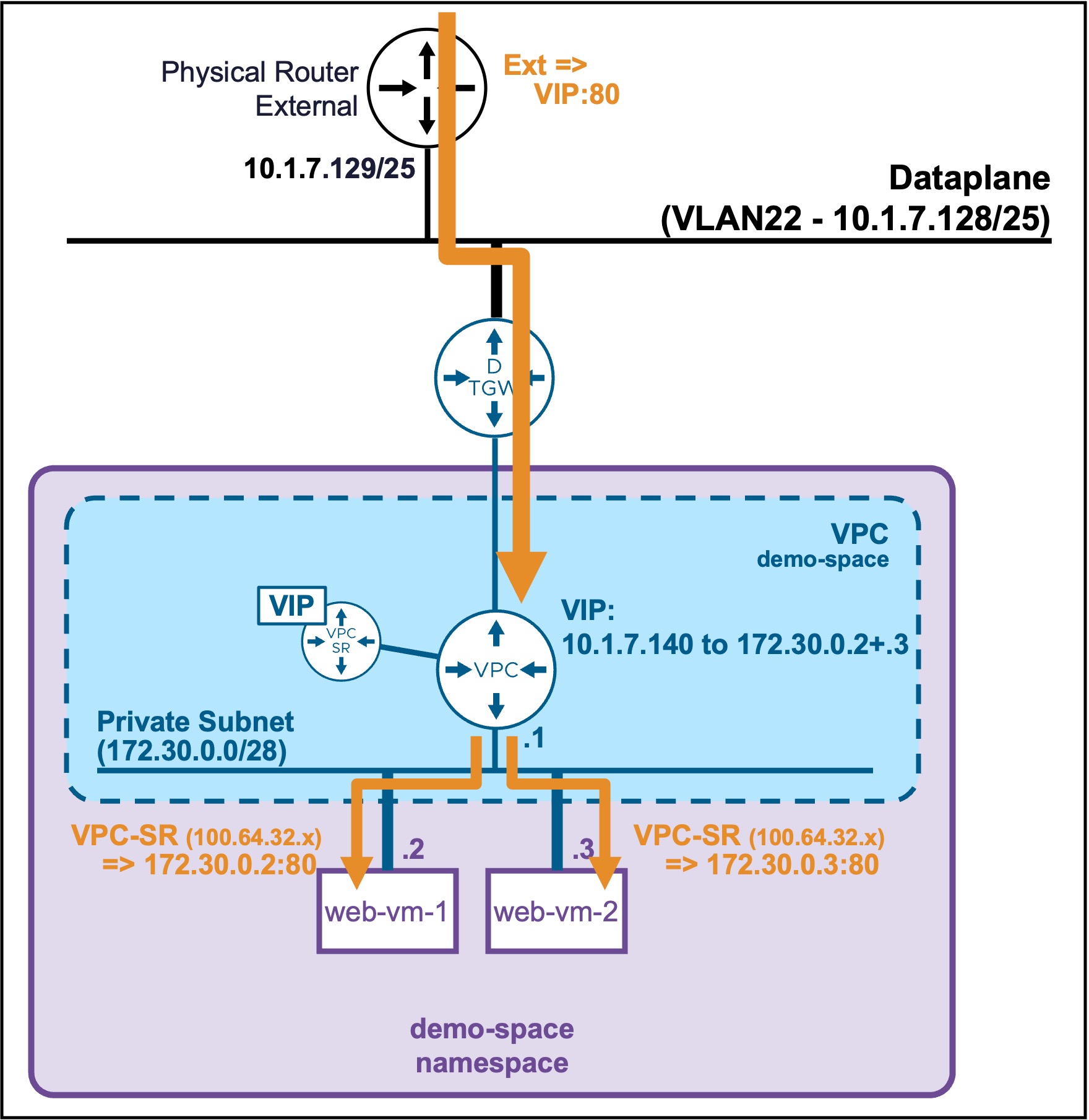

Topology

Current Limitation: No Application Health Checks

Currently, the vCenter Namespace VM Load Balancer does not perform application-level health checks on backend VMs.
If a backend VM goes down, the load balancer VIP will continue forwarding traffic to it.
This section will be updated once active health monitoring becomes officially available.

Create a VM Load Balancer

Navigate to vCenter > Supervisor Management > Supervisors, select your target Supervisor, click the Namespaces tab, and select your specific Namespace.
Under the Resources card, click Network - Go to Service.
Network Service

1. Create New VM Load Balancer

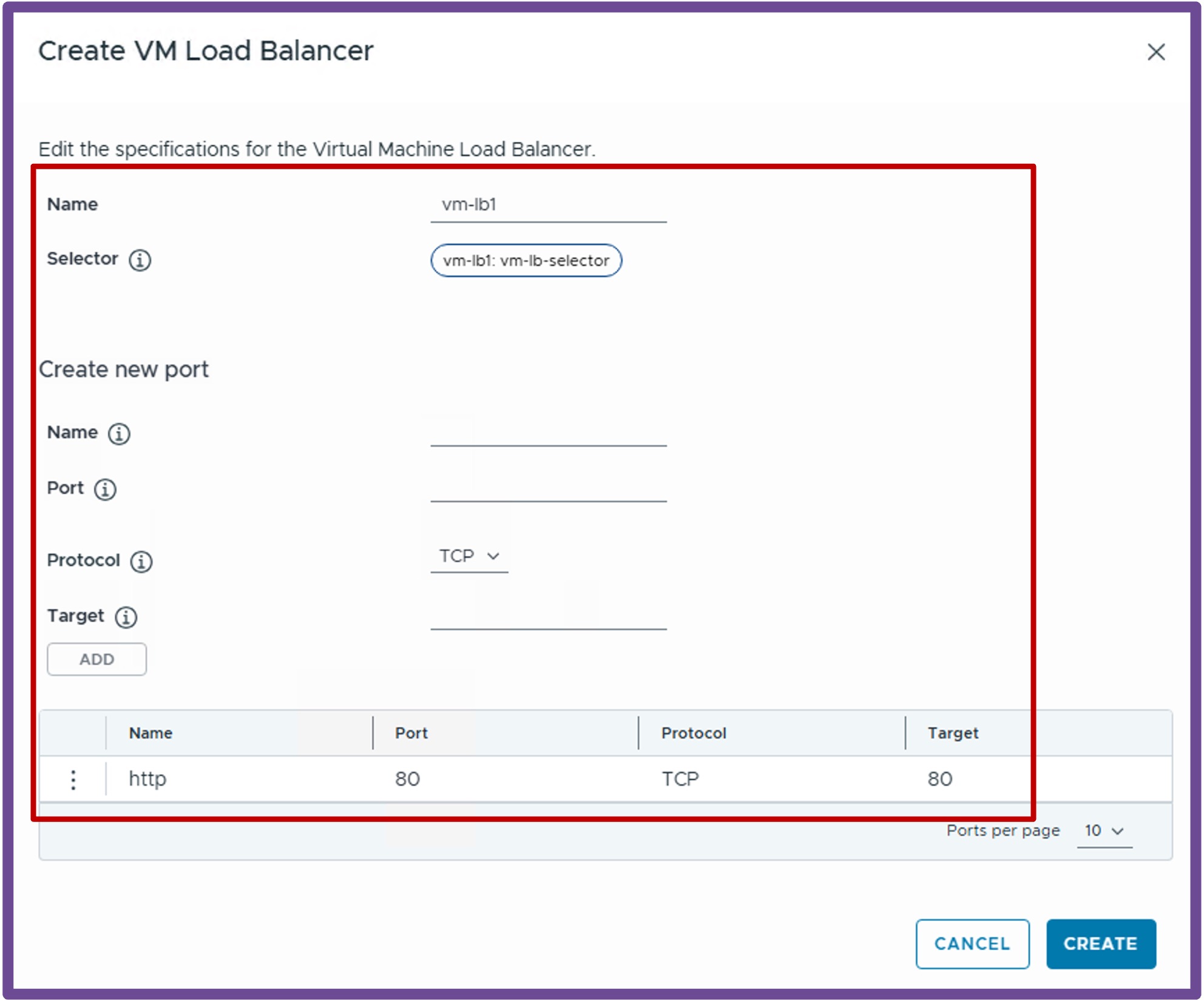

Navigate to the VM Load Balancers tab, and click Create.
Create LB

2. Apply Selectors (Labels) to the Backend VMs
The load balancer identifies which VMs to send traffic to based on Kubernetes labels. If you deploy a new VM from the vCenter UI, you can apply this label during creation. If the VM is already deployed, you can apply the label using kubectl.

How to label an existing VM via kubectl

Step A: Connect to Supervisor Namespace

vcf context use <supervisor>:<namespace>

Output example

PS C:\Users\Administrator\Documents> vcf context use supervisor-mgt:demo-space
Logged in successfully.

Step B: Add the label to the VM

kubectl label virtualmachine <vm> <label_key>=<label_value> -n <namespace>

Output example

PS C:\Users\Administrator\Documents> kubectl label virtualmachine web-vm-1 vm-lb1=vm-lb-selector -n demo-space
virtualmachine.vmoperator.vmware.com/web-vm-1 labeled

Validate VM Load Balancer

  1. Locate the Load Balancer VIP
    Navigate back to vCenter > Supervisor Management > Supervisors > target Supervisor > Namespaces > specific Namespace > Resources > Network - Go to Service.

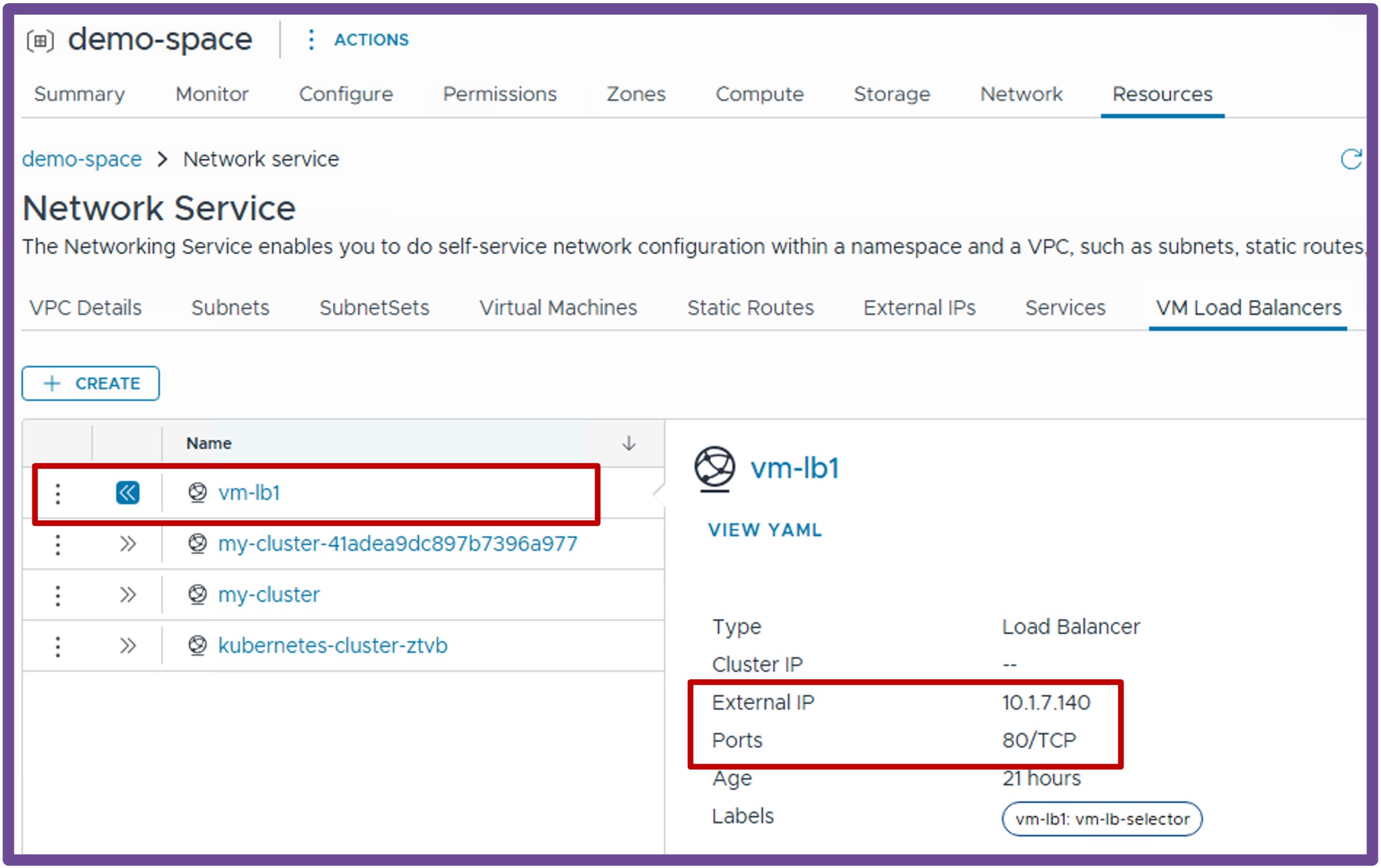

    Go to the VM Load Balancers tab and expand the newly created VM Load Balancer to view its assigned IP address.
    Check LB

  2. Test Connectivity
    To verify connectivity, connect to a VM within the VPC and use curl to directly access the Load Balancer's Virtual IP (VIP).

    root@vm-public:~# curl http://10.1.7.140
<h1>It works - web-vm-1</h1>
