Supervisor with "VDS + FLB"

This section describes the procedures for deploying the Supervisor Namespace utilizing a "VDS + FLB" architecture inside a vSphere environment.

VDS Architecture

Namespace Access

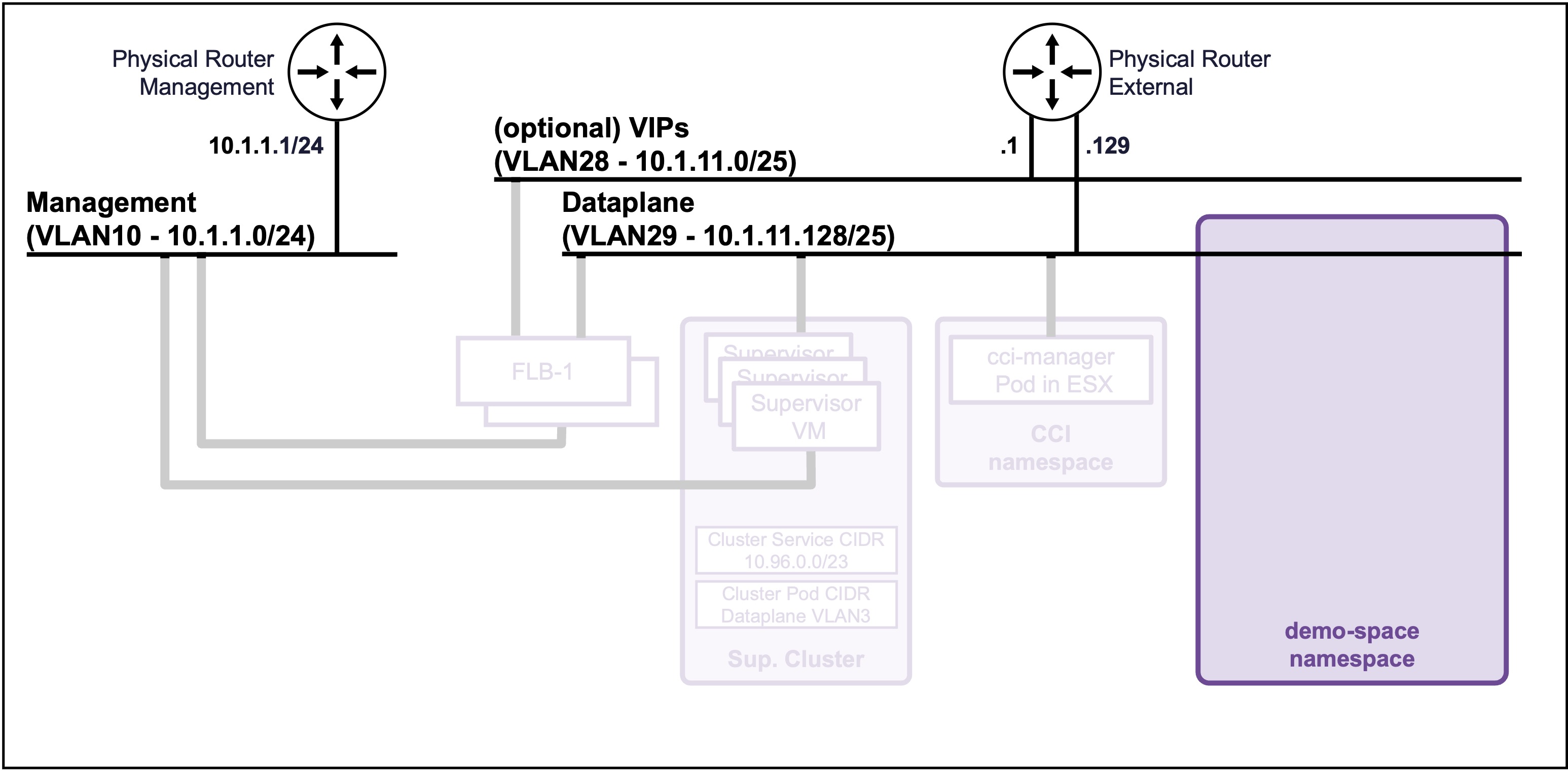

Topology

Client Operating System

While the command outputs below are captured from a Windows client, the vcf and kubectl CLI tools operate identically across Linux and macOS environments.

Connect to Namespace

Connect to the Supervisor

See Supervisor Access

Connect to the Supervisor Namespace

  • List the Supervisor Namespaces

    vcf context list

    Output example

    PS C:\Users\Administrator\Documents> vcf context list
NAME                             CURRENT  TYPE
supervisor-mgt                   true     kubernetes
supervisor-mgt:demo-space        false    kubernetes
supervisor-mgt:svc-cci-ns-hzbv0  false    kubernetes
supervisor-mgt:svc-tkg-m829h     false    kubernetes
supervisor-mgt:svc-velero-xqgz5  false    kubernetes

    If the namespace has been created recently (after the Supervisor connection), it may not be listed.
    In that case, refresh the context list:

    PS C:\Users\Administrator\Documents> vcf config set env.VCF_CLI_CONTEXT_REFRESH_EXPIRY_CHECK_SKIP true
PS C:\Users\Administrator\Documents> vcf context refresh

  • Connect to the Supervisor Namespace

    vcf context use supervisor-mgt:demo-space

    Output example

    PS C:\Users\Administrator\Documents> vcf context use supervisor-mgt:demo-space
[ok] Token is still active. Skipped the token refresh for context "supervisor-mgt:demo-space"
[i] Successfully activated context 'supervisor-mgt:demo-space' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-mgt:demo-space'...
[i] Installing the following plugins recommended by context 'supervisor-mgt:demo-space':
  NAME                INSTALLING
  addon               v3.6.1
  cluster             v3.6.1
  kubernetes-release  v3.6.1
  namespaces          v9.1.0
  package             v3.6.1
  registry-secret     v3.6.1
  vm                  v9.1.0
[i] Installed plugin 'addon:v3.6.1'
[i] Installed plugin 'cluster:v3.6.1'
[i] Installed plugin 'kubernetes-release:v3.6.1'
[i] Installed plugin 'package:v3.6.1'
[i] Installed plugin 'registry-secret:v3.6.1'

Validate Namespace Access

Validate the current Supervisor Namespace Connection

vcf context list
Output example

PS C:\Users\Administrator\Documents> vcf context list
  NAME                             CURRENT  TYPE
  supervisor-mgt                   false    kubernetes
  supervisor-mgt:demo-space        true     kubernetes
  supervisor-mgt:svc-cci-ns-hzbv0  false    kubernetes
  supervisor-mgt:svc-tkg-m829h     false    kubernetes
  supervisor-mgt:svc-velero-xqgz5  false    kubernetes

[i] Use '--wide' to view additional columns.

Validate the access to the Supervisor Namespace context

To test the connection, you can check the worker nodes on that Supervisor Namespace (these are the ESX hosts).

kubectl get nodes

Output example

PS C:\Users\Administrator\Documents> kubectl get nodes
NAME                               STATUS   ROLES                  AGE   VERSION
421fc1eaaae9d72dee945e941a9d76e9   Ready    control-plane,master   2d    v1.32.9+vmware.2-fips
esx-01a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-02a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-03a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-04a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
