Edge Configuration in vCenter

This section describes the procedures for configuring NSX Edge Clusters and Nodes using the vSphere Client.

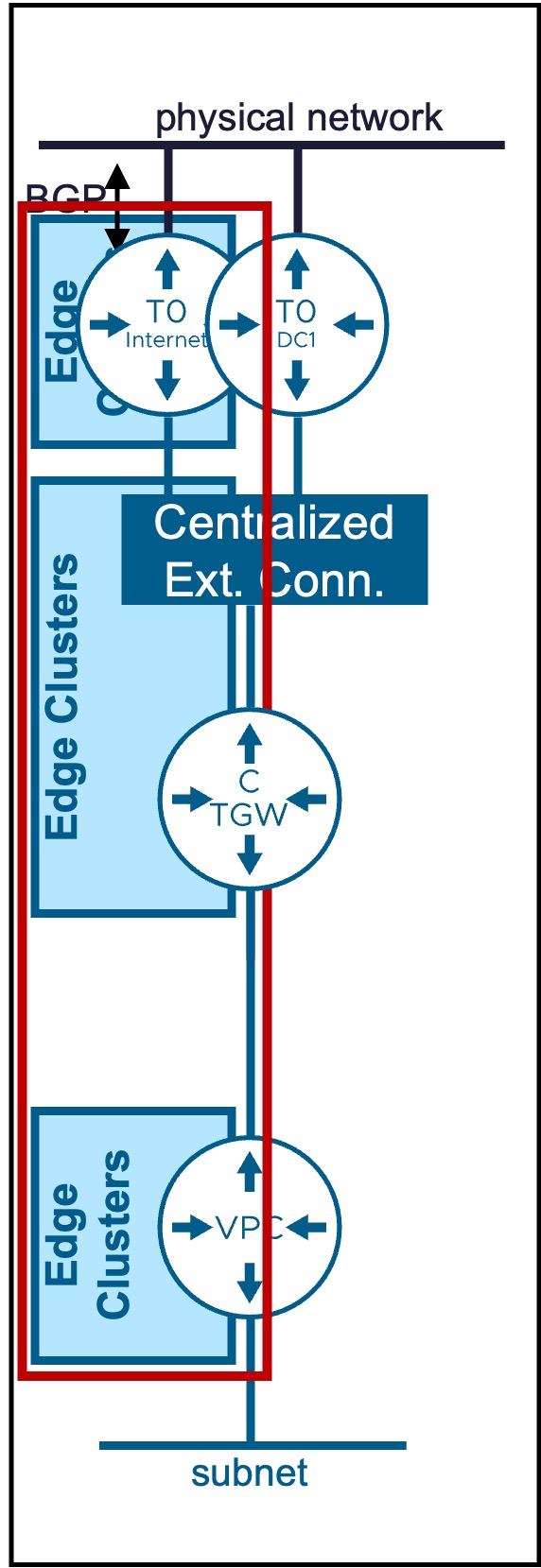

NSX Edge Nodes provide the centralized network services required for Centralized Transit Gateway (CTGW) designs within the VPC architecture.

vCenter Edge

Edge Cluster / Edge Nodes

Configuration

Deep Dive: Blogs & Video Demonstrations

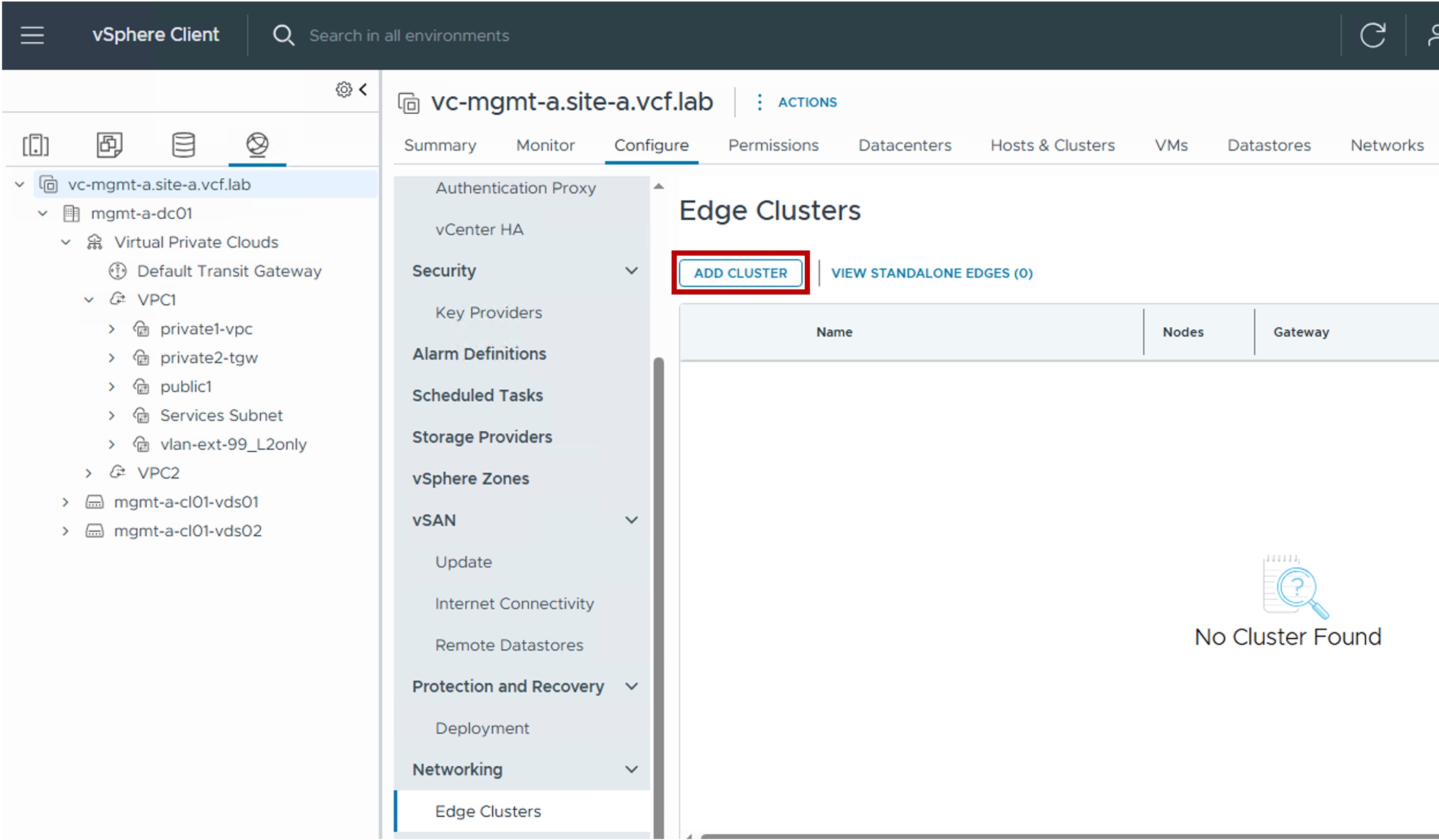

  • Step1. Create new Edge Cluster / Edge Nodes vCenter Edge Cluster

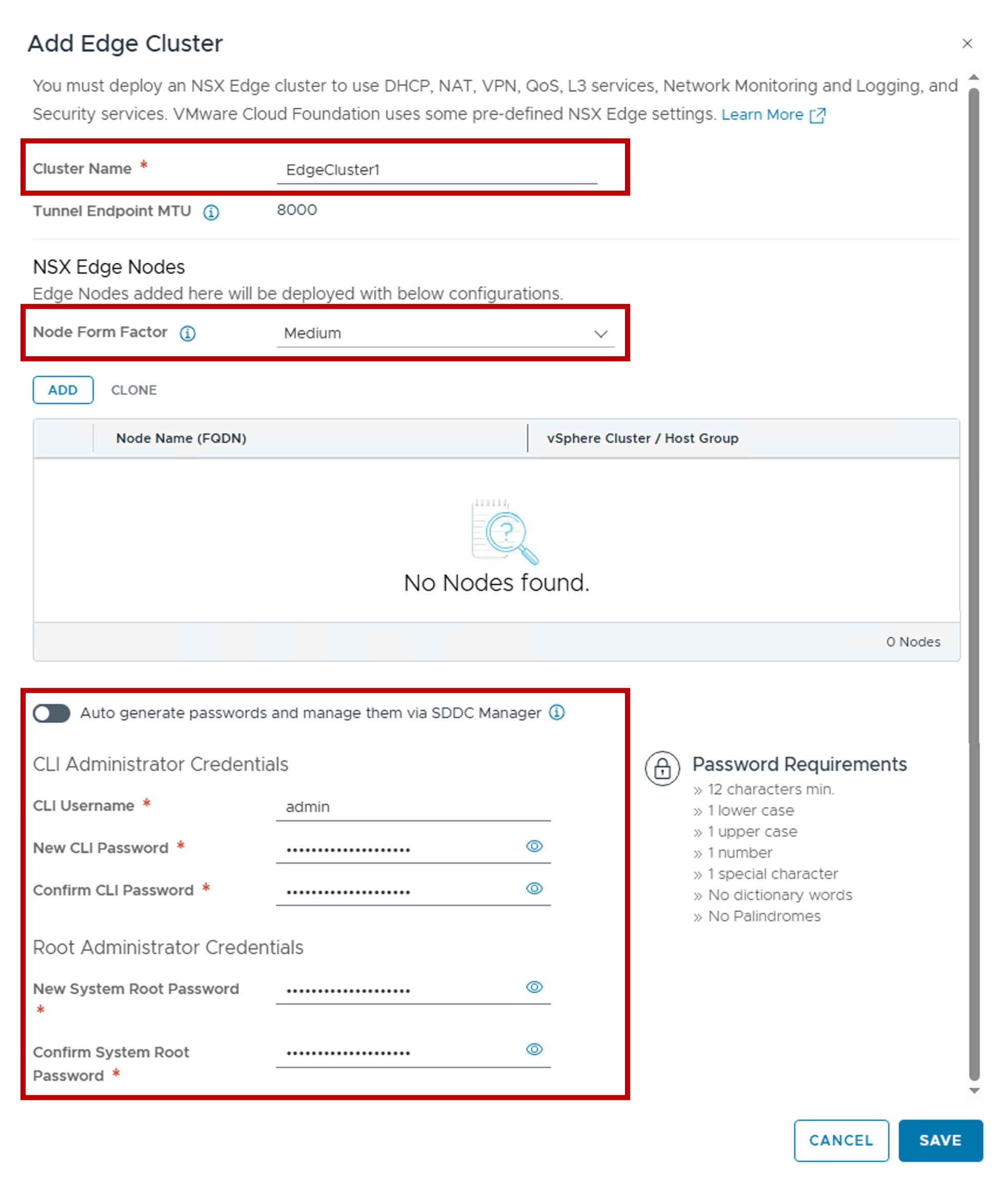

  • Step2. Configure Edge Cluster vCenter Edge Cluster config

    • Node Form Factor:
      Select the appliance size (vCPU / Memory) of the Edge Nodes.
      This determines the scale and performance limits for the logical routers (Tier-0, CTGW, and VPC) hosted on the node.
      More information on VMware NSX Configmax.

    • Auto generate passwords and manage them via SDDC Manager
      Enabling this option automates password generation and allows SDDC Manager to handle credential lifecycle management.

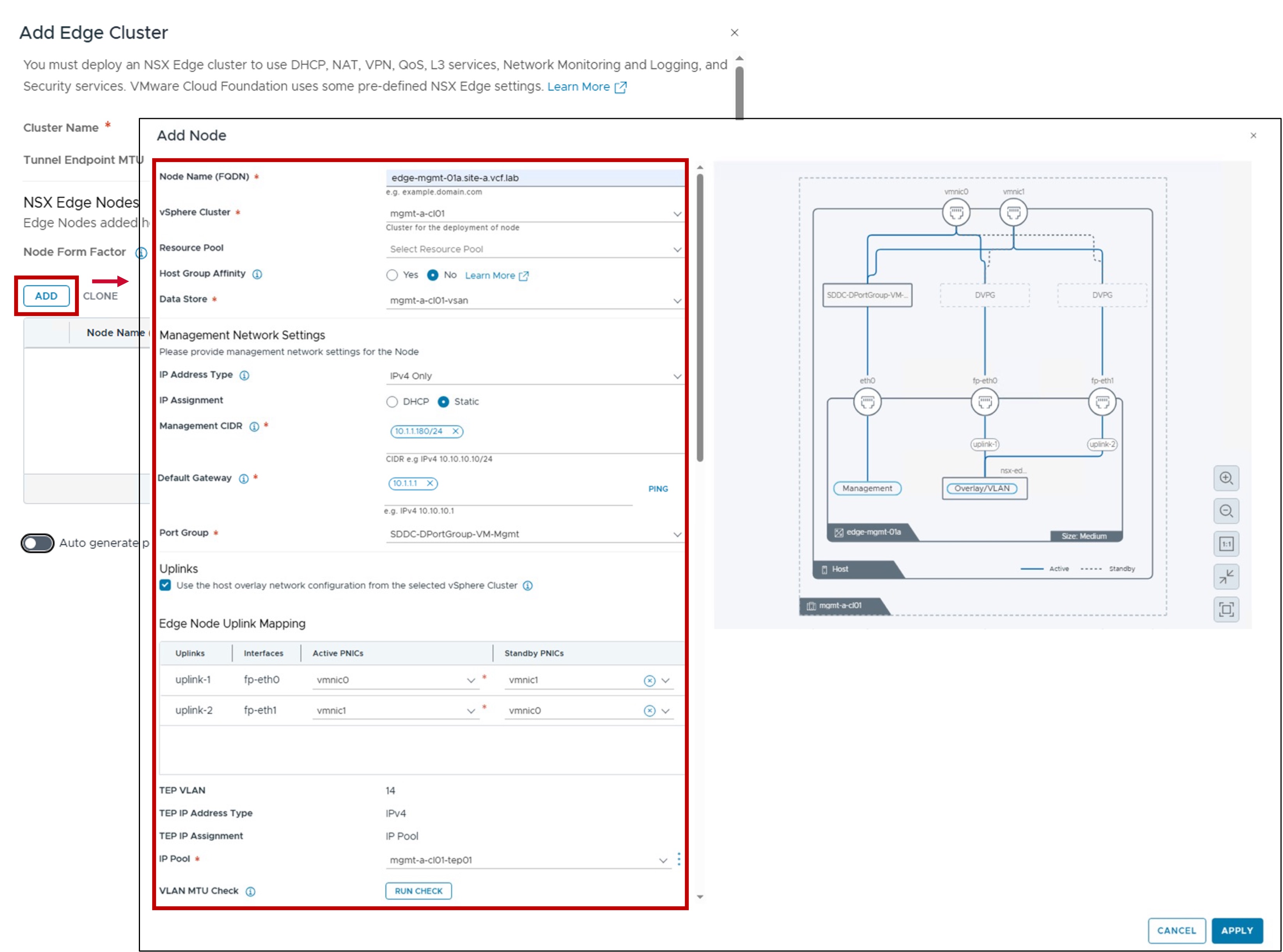

  • Step3. Configure Edge Nodes Placement and Networking vCenter Edge Node

    • vSphere Cluster / Resource Pool / Host Group Affinity / Data Store:
      Defines the physical placement of the Edge Node VM.
      You can optionally specify Resource Pools and Host Group Affinity to control where the VM resides within the cluster.

    • Management Network Settings (IP Address Type / IP Assignment / Port Group)
      Configures the IP assignment and Port Group for the Edge Node management interface.

    • Uplinks (Edge Node Uplink Mapping / TEP VLAN)
      Defines vNIC connectivity and Overlay TEP configuration.
      Note: To share the same VLAN for both ESX TEPs and Edge Node TEPs, you must enable "Use the host overlay network configuration from the selected vSphere Cluster."

      In case "Use the host overlay network configuration from the selected vSphere Cluster" is greyed out

      If this option is greyed out, follow these steps:

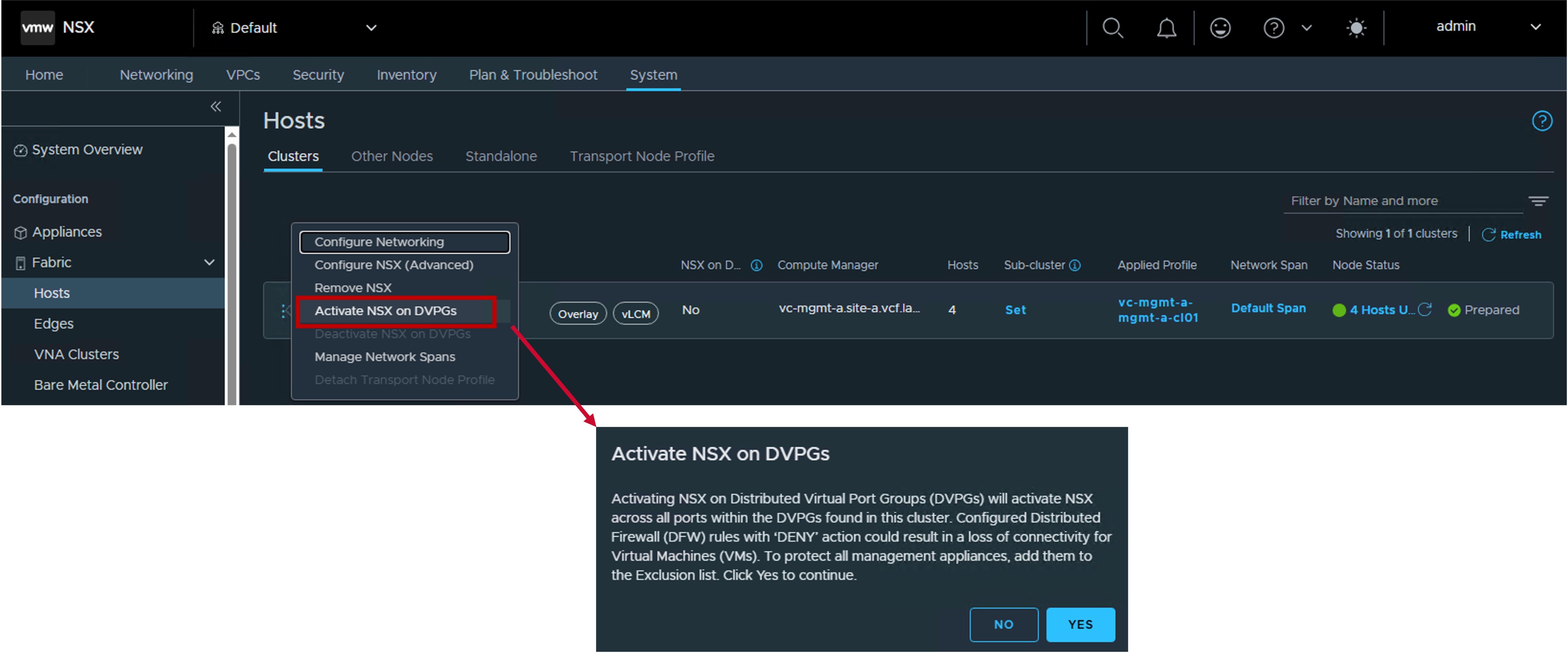

      1. Go to NSX Manager.
      2. Navigate to System > Fabric > Host > Clusters.
      3. Activate NSX on DVPGs.
      NSX on DVPGs

      Security Consideration: Microsegmentation / DFW

      Enabling "NSX on DVPG" activates the Distributed Firewall (DFW) for all VMs connected to VDS Port Groups. Critical: Ensure no "Deny All" rules are active in your DFW policy before enabling this, as it may immediately block traffic to existing workloads on those Port Groups.

    • VLAN MTU Check
      (Optional) Validates the MTU settings on the selected VLAN to ensure overlay traffic is not fragmented.

Repeat these steps for the remaining Edge Nodes (2+ nodes recommended).

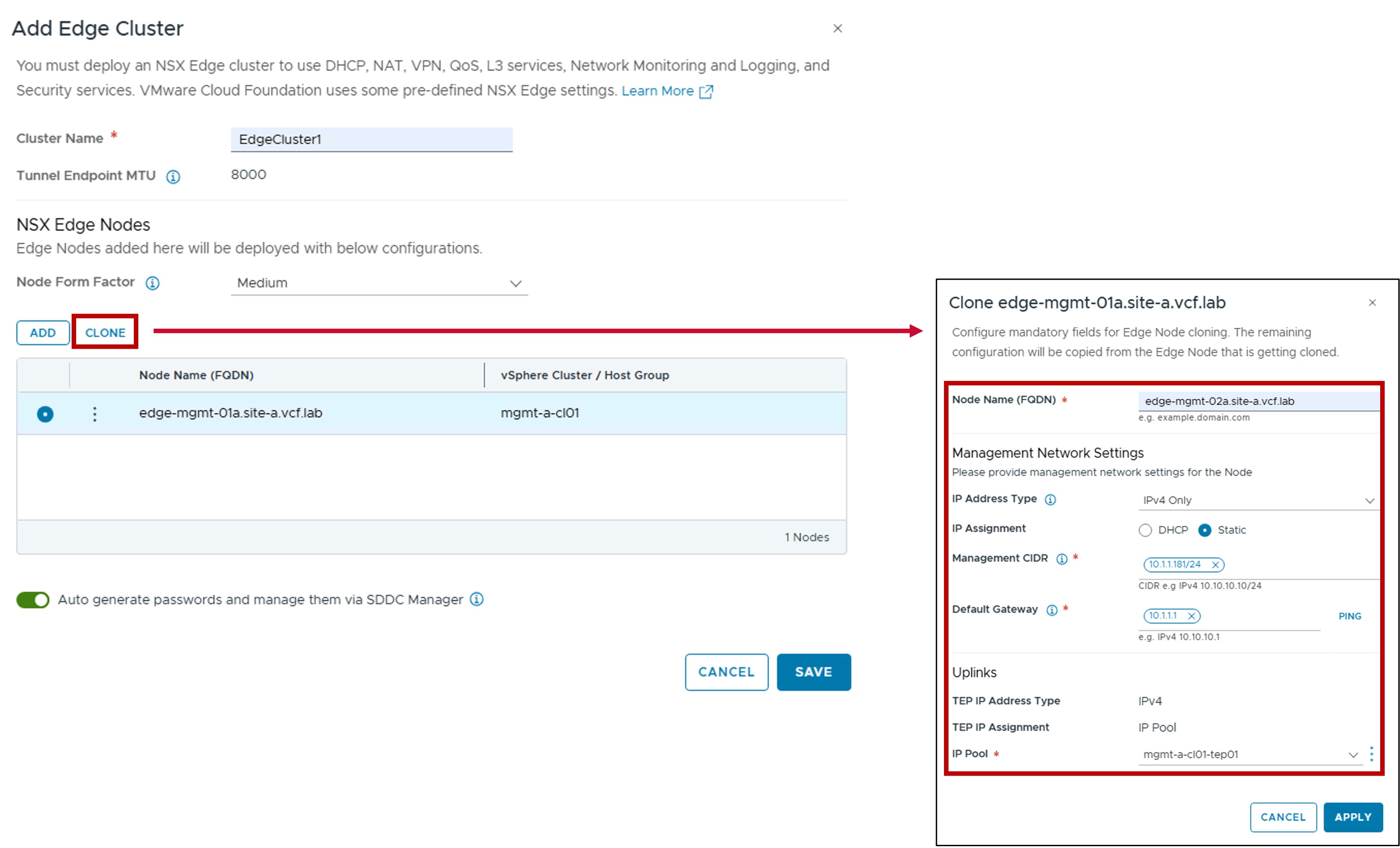

Cloning option

In case other Edge Nodes have the vSphere Cluster and Uplink settings, use the cloning option. Add Edge Node2

Monitoring

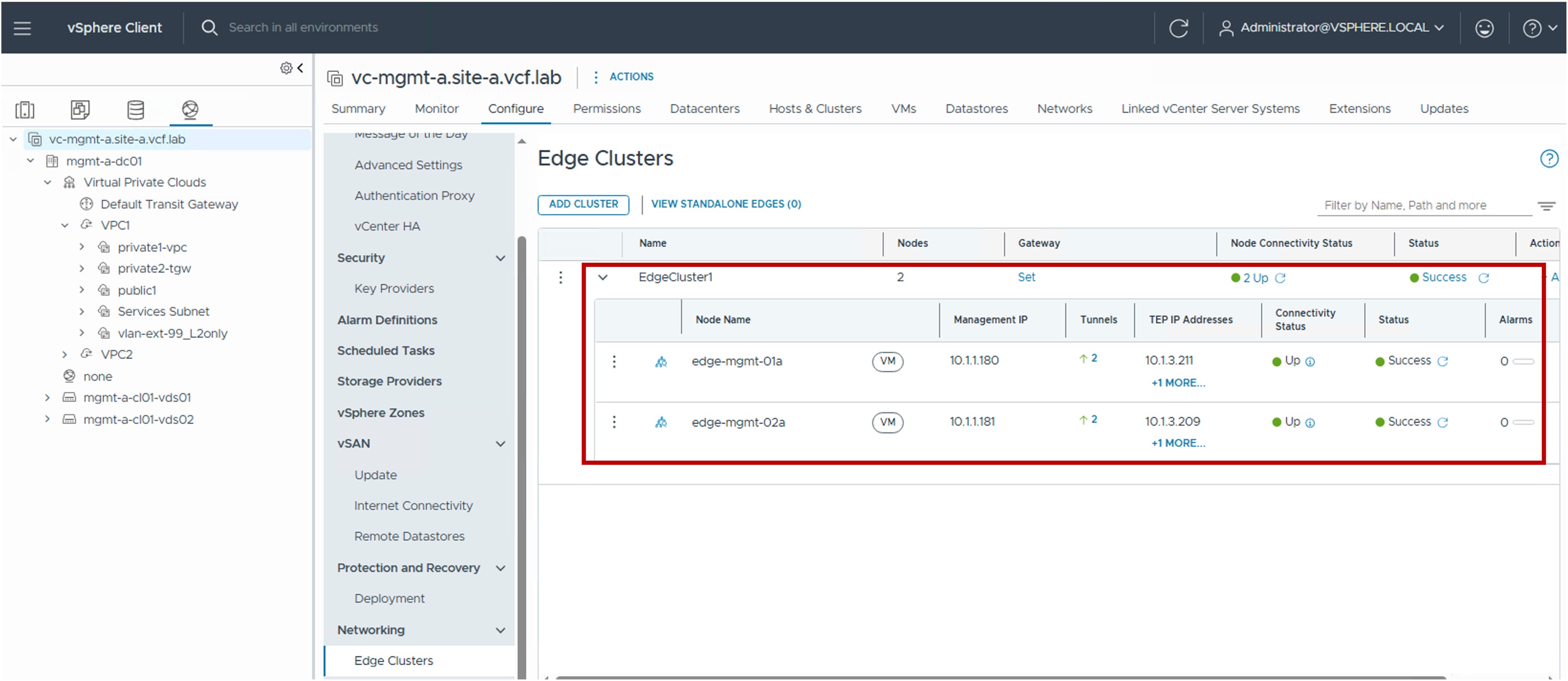

  • Status The status reflects the successful application of the configuration. vCenter Edge Status
