Supervisor with "NSX + DTGW/VNA"

This section describes the procedures for deploying a K8s Cluster in a Namespace utilizing an "NSX + DTGW/VNA" architecture inside a vSphere environment.

VDS Architecture

K8s Cluster Access

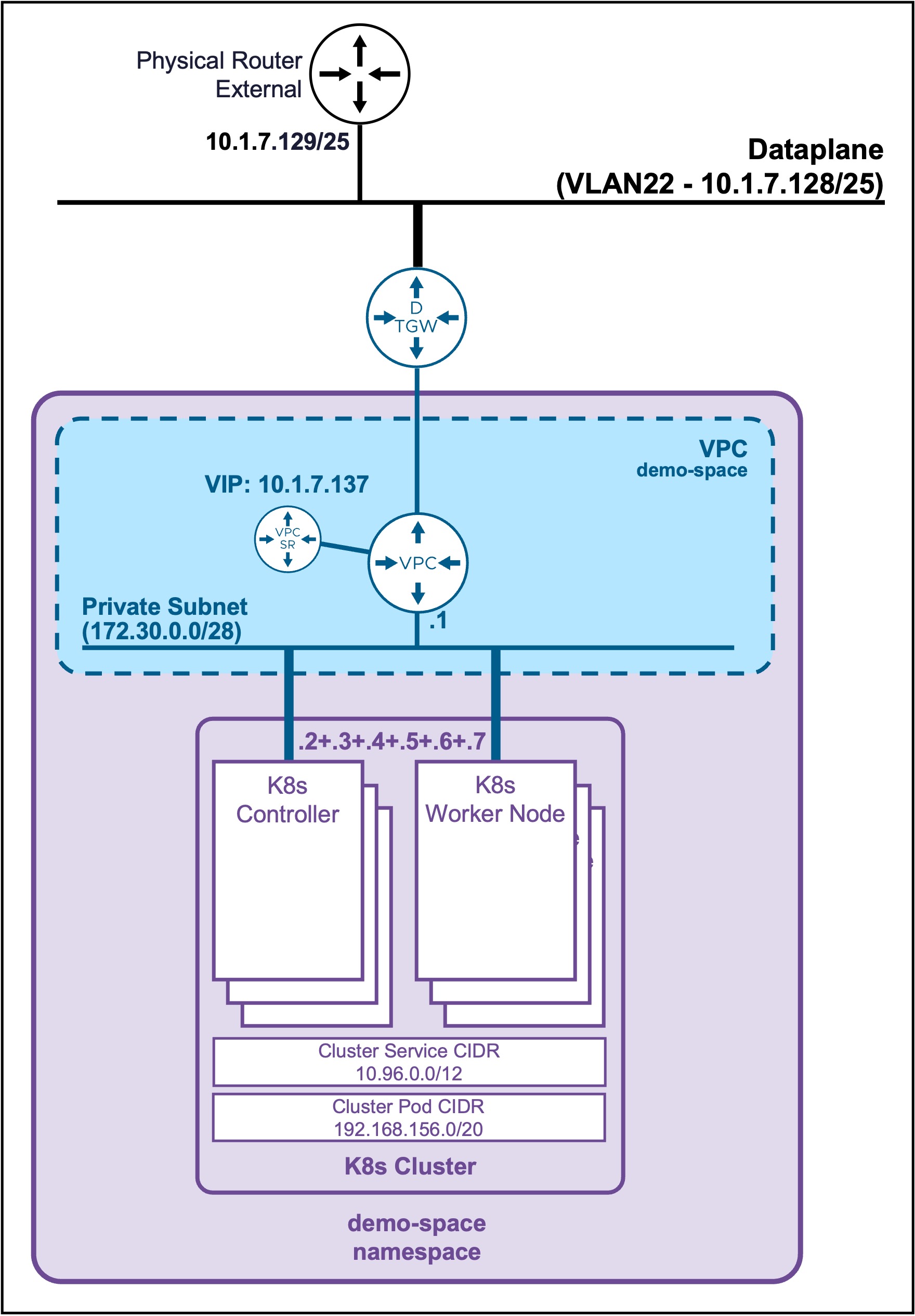

Topology

Client Operating System

While the command outputs below are captured from a Windows client, the vcf and kubectl CLI tools operate identically across Linux and macOS environments.

Connect to K8s Cluster

Retrieve K8s Kubeconfig file

  • Option1 vCenter UI

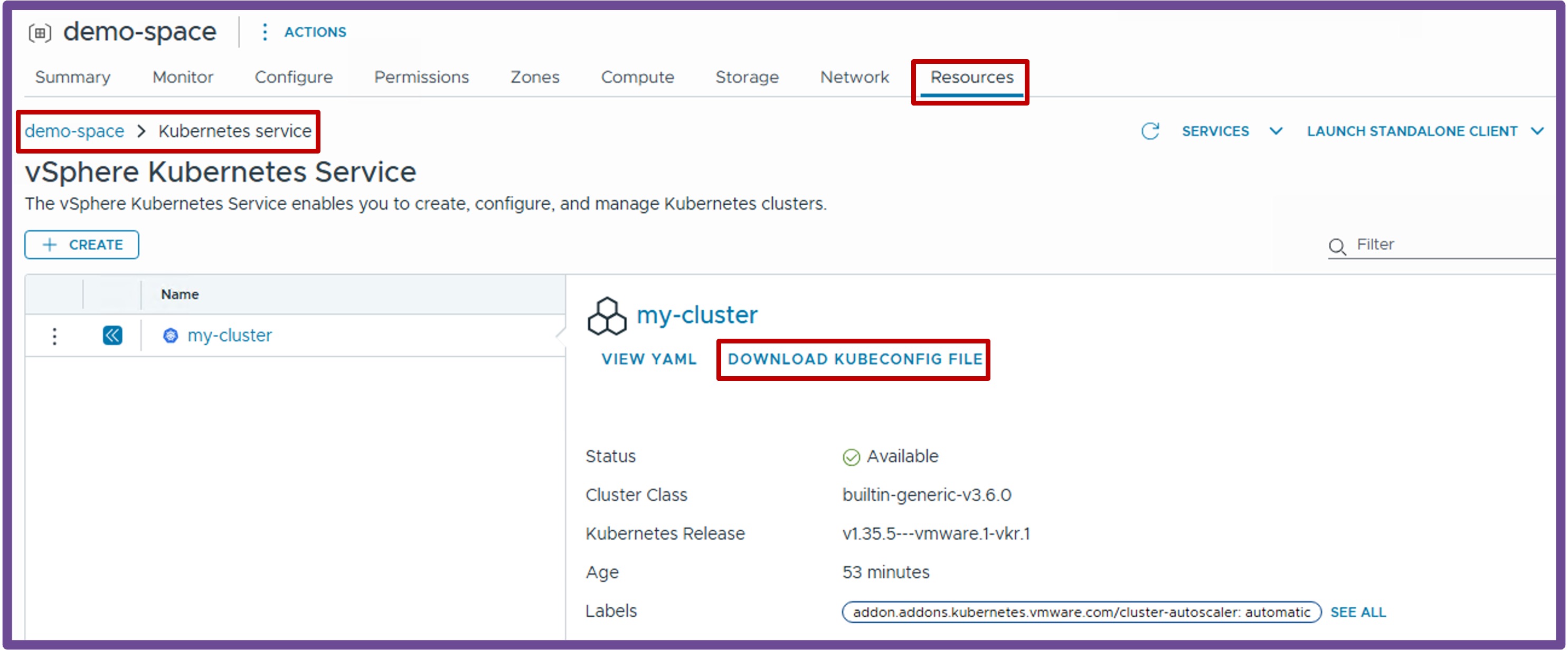

    Download the K8s Cluster kubeconfig file "my-cluster-kubeconfig.yaml" navigating to vCenter > Supervisor Management > Supervisors, select [your supervisor], navigate to Namespaces, select [your namespace], navigate to Resources, click on Kubernetes - Go to Service, click on Download Kubeconfig File.

Find K8s Kubeconfig

  • Option2 CLI
    Create the K8s Cluster kubeconfig file "my-cluster-kubeconfig.yaml".

    [System.IO.File]::WriteAllBytes("$pwd\my-cluster-kubeconfig.yaml", [System.Convert]::FromBase64String((kubectl get secret my-cluster-kubeconfig -n demo-space -o jsonpath='{.data.value}')))

    Output example

    PS C:\Users\Administrator\Documents> [System.IO.File]::WriteAllBytes("$pwd\my-cluster-kubeconfig.yaml", [System.Convert]::FromBase64String((kubectl get secret my-cluster-kubeconfig -n demo-space -o jsonpath='{.data.value}')))

File "my-cluster-kubeconfig.yaml" created
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM2akNDQWRLZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJMk1EWXlPREUyTXpZeE9Gb1hEVE0yTURZeU5URTJOREV4T0Zvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTE43Cjd2Z0ttTGxlYnVYd3FxNGUrUXJHTWhQWHEwMVhCcnpLc0tySjRqWEc1Zkc3TU8xalltaFk0cmxMMHNqeDl6U2oKcStZcnZKQ1I5TWFTRFJpZWxSU3craDQ3ejFuQ20yYjMzN1grSmxCYStYT0ZhZXFYTFZybHBlSy9FejNaM01HZApSWERMeENQS2tFN2VaZmRmVVA2Mld2K3JmVDYvai82T2RBOTY1ZmpxdVU3aTVaa2ZMQnRmRDFlZTRpSUJ6TjBTCnhxK2pmSml6ZUZDVFdmV296cjJXREpPM0pQNWZ2Q0J2b0xoeHVRMm92MWdyR3p3VHpYMytSekxZV00raGJXeXUKZFdyMnBqWGx4eUl4dDgrVzdWeHJiaU9PTVc2Z254N0V3RTNXTXB1UjNBM2R6TE5yblVHRC9HWVdjbVhVUkcrcQpYNnpxTDdpZGJURll3OTJlWElVQ0F3RUFBYU5GTUVNd0RnWURWUjBQQVFIL0JBUURBZ0trTUJJR0ExVWRFd0VCCi93UUlNQVlCQWY4Q0FRQXdIUVlEVlIwT0JCWUVGSUlwR3ljNTUzNTRyQ0h6ckE1R1NsT1VIclRpTUEwR0NTcUcKU0liM0RRRUJDd1VBQTRJQkFRQ1RWN1kvRjNhS21vMVRKN2E4WUdsN3lYNVRiRHlERjRydTJEMitUL2FjN1dyKwptd0tGcVIyQnJYdENxeFM1d0JhclRYQklpb1V5aGhlVFBkYUxuNit0Q0twVzFlanVpckNyT3pONUN1YXEvdVdWCkVVMzhEcS9raVdOTlE0ajA0Sm9tRERBZlRsd2tTdzVSZWZqbXFVL0k3ZDgwNjRseDRacDZjSkJEREN3NmRkYisKUXFTN0F3UWpnL0tUUmUxbjhJNjlERGZ1NmRSUDEvKzlmall0ajUzYWR3RnJ6R0ZIWXhtQmdEeENBUGdpM1Y0Ngp6M2UwOVJjUWdRVzdRblRWWXdoRjhFTThEMUl2T2RKNnkzeWtoN2JYTCtWc1BLY2JsYnFIczFicXU2TUFDekY2Cmx3dWY2STQ3WUpHQ1dzQnJ0UnNXSXhxUy9ISjRlZC9iRkZ2S3o0Rm4KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    server: https://10.1.7.137:6443
  name: my-cluster
contexts:
- context:
    cluster: my-cluster
    user: my-cluster-admin
  name: my-cluster-admin@my-cluster
current-context: my-cluster-admin@my-cluster
kind: Config
users:
- name: my-cluster-admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURFekNDQWZ1Z0F3SUJBZ0lJWFBEQU5XVFAzQ3N3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TmpBMk1qZ3hOak0yTVRoYUZ3MHlOekEyTWpneE5qUXhNVGxhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTRMeHpKL1hCRExIWE85d0gKSk1Zem5IcXd6Vm1hd1M1bWdMQ0luUFB6dkNscUtjS3RRemZZRnNjMnQreVBTTHpoTkkyMko0SGU3Q1ptM2p2eQpqYitwemhMenQ2cUh0ZnBTZUdVRTlGaWU0NmJ0UDJXdFBNS2dkd3ZYNkR1ZnNxMDlDZzJLTWRTVXFTa2hGOVdMCndoWUMwTldwNHh0MHRtOFlWc09hM3JPMmpnR1pzcVVjclJSMkFEOVgwaUlKa3d5YVd0Ky9BbW94M3IvTzkxQVMKTU82eElIVmsyVUwwdUh5QkJZUFVTUFFFbTFOVHRYODRBeHZYakZCNDMyK3FUUkNBcXptK3B6RmJHWllCSUtNegp0QklLSmpUK3hoYXJlR1o4OWhyK1F0WTZ3dW9VN2RsRjdCZFBzaWlIalQwQlIyU0E2L1hmSEJnTGQ0SExQb1dhCmlPM2NxUUlEQVFBQm8wZ3dSakFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0h3WURWUjBqQkJnd0ZvQVVnaWtiSnpubmZuaXNJZk9zRGtaS1U1UWV0T0l3RFFZSktvWklodmNOQVFFTApCUUFEZ2dFQkFBdk40bU5ZUzFDTzZhSGNxd3cxTElySWNNaEQ3T0pHTjc1ZGVETFc3bTRJUUsxa2tXK2dzbFpLCkROaUtOTkx3ak45bVBaUzZIVlViTDQ2MkNXemZCMGVPMWorR1NzR2lYVzJFSzNlUmNiYmpka2RYblZEcWdhNzYKWndWVkUrMEZaaVVmVmJLck00QnNzSjJheWl5QmNFUmFyMVArMVpFNUczQ1hQd3VpeVZpUG9IVW92YmVqalBPSwo1QjVBZ3ZNb0I0QlFPZUdlRmR5ZW5EQnlDUHhLczJRR25qOEFYbGxma2J0NnZMQ1RUYTZNZUIvVWMvb284TU5JClNXZDdjc2MxcUlaWFozTm5DMjlHdFZpaUROTUFNVFplWm1qTEgrNzRmZmsyVzJXZzlCNWJObnFVK3BVTzgxblUKSVNmeWpONVNpSWlVc2k5c2Zuek5xWko4OW1uQ2IrYz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBNEx4ekovWEJETEhYTzl3SEpNWXpuSHF3elZtYXdTNW1nTENJblBQenZDbHFLY0t0ClF6ZllGc2MydCt5UFNMemhOSTIySjRIZTdDWm0zanZ5amIrcHpoTHp0NnFIdGZwU2VHVUU5RmllNDZidFAyV3QKUE1LZ2R3dlg2RHVmc3EwOUNnMktNZFNVcVNraEY5V0x3aFlDME5XcDR4dDB0bThZVnNPYTNyTzJqZ0dac3FVYwpyUlIyQUQ5WDBpSUprd3lhV3QrL0Ftb3gzci9POTFBU01PNnhJSFZrMlVMMHVIeUJCWVBVU1BRRW0xTlR0WDg0CkF4dlhqRkI0MzIrcVRSQ0Fxem0rcHpGYkdaWUJJS016dEJJS0pqVCt4aGFyZUdaODlocitRdFk2d3VvVTdkbEYKN0JkUHNpaUhqVDBCUjJTQTYvWGZIQmdMZDRITFBvV2FpTzNjcVFJREFRQUJBb0lCQUE3Q0JxU05kek9ZaTNRZwpoYzQ4dnhvNzFhMFdnUEFiVmtYYkp6Z2tybEVoUGNSODhVTWthLzlLN21WSTYrYUY2TVZsRFBJdWpXOWYzTjk1CkpsRE5VUFJQRUV3ZVdiSng1c1V3aW1acXIyY1pzM2kzVDVkWmh6b1V3QVU5d25DZS93N1FSczZia1haRHFpc0EKMktCU2htQWxEU0ZKMEp5WS9Rc3RrSUpSWU4vcTlzYXFxVVZzb0RzY1N2bnk0bllsN2RWZTN4S0ZSeDdiaW9FWAo4cWFBaUpqOTNSYWtlb2N6eThuaHhEN01UZ2NMMkczSEh5RmgzSjZUa2k5cjhKVzJ3amJDNFI5VUtZWnlrRVpUCkpIRlhWKyt2K1hkRW1INzBGbjFmWUkxR3lOK1o0MXEveWwrV1F1a2RSWDNXbk5EQVE3YXROWXQ5TjAxU2dGdVUKL0l3d1U5RUNnWUVBL0hXYzJzaGpZeDdQWlZpcHRYTUpVVll1R3p6TjFFajZrVytvMWIzeWN1aEgrNDcwT2trdgpUL2NsQzI5OVh0dDJ4emdEd2VrMEFyQVl0K0daNldLQysydDBiUkp3TjZtTUR5NU1PTFNvaEtERi9qckRKVFpxCkliZ0hzK3FsL2lqZkNTeER5OE00YnBMZFlJRnpYaFlud0hTMHBudU12K2JDRndadGZCMmJqVDBDZ1lFQTQrTk4KMjRrcjZNTDlha2Z5cEs4Nk90ZmhWdW8yWHgraW5tNTI3aTVQVVJDRGYvdXM1ci9uTWxnaklsdi9uRFlMVmFYNgpZdHViTnoya09qMlRJWVR1OWJqNVg4NGp4WmhJMWgxY2xmYi9mQVdSV3VMaUh6ejVaVCtDeWIyUnJzUy9SQWVxCjNVY0g3dnJDYkFCaFhNMEttVThXZFhBWlBKOXAyUVBZdlp1MW05MENnWUJLR0s3djI2Nm44ZXdISDgyM2pzcm0KVDNmNjBJN014cHFjUXZ4M3QyZElhSHB3RDlZSW9XQThoUm9mVUJxbzA1cjUvNnZDcHhKMzAzMTl3cjRzckpncQorSy9VTDN3MktoSU1ocGNpY1l1Z1dadWk4VlpEUHNSSm56ekxob3d2bTRsU3BPWkZFTWdvVS95YmpZTHgwMmpaCmFLZDQwWHhPK29odXY1azB1Mi9qTlFLQmdFRTJVSmRjSDRhU0ZmYU45QytRUFRlTmcxeGQxWVZQQmpnVUlGQjAKVEJwRWdYemtSa3daNmswTHo3SUxaWkFNSHg0NVN2ZHpKRzJnWkJpT2VrWURSbVptc21YcUZXNTc3NHZtQnhLYgpCZTAxb3F6QmREZkFPUlh5SUxrZVdFd00zVGJZZ3RxamN1KytMbGk5bXg3MVJlMHRKcDRnbi9nckhoME43cjRECml1cTVBb0dBSWpyRXdySVFJVDh6a1llSy9XcUVFTlJTSlBkT3RXWjArdXhabTZOd2ZLY1Nzb1Nud1FFeVFLSjgKTW8zSjd4dVlmNEZnbkhsMFlXODhTTXVRVEN0ZzF3OW9IVkhxaEh0a2s4b043YUFaTmhNeXlSSTNoRUIyOXE3ZQprQk5xYTc5WVFkQzBtSlE2UkVKeEZNQ3NKdlhsZHFGM0pSS0NlMTZ5cjM2c1ZsSHJoa1E9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

Connect to the K8s Cluster

  • Create KUBECONFIG variable

    $env:KUBECONFIG="$pwd\my-cluster-kubeconfig.yaml"

    Output example

    PS C:\Users\Administrator\Documents> $env:KUBECONFIG="$pwd\my-cluster-kubeconfig.yaml"
    Note: To connect back to the Supervisor Namespace (such as "demo-space")
    PS C:\Users\Administrator\Documents> $env:KUBECONFIG = $null

  • Change context to the K8s Cluster

    kubectl config use-context my-cluster-admin@my-cluster

    Output example

    PS C:\Users\Administrator\Documents> kubectl config use-context my-cluster-admin@my-cluster
Switched to context "my-cluster-admin@my-cluster".

Validate Namespace Access

Validate Context is the K8s Cluster

kubectl config get-contexts
Output example

The current context is:
. Cluster: my-cluster
. Namespace: default (empty)

PS C:\Users\Administrator\Documents> kubectl config get-contexts
CURRENT   NAME                          CLUSTER      AUTHINFO           NAMESPACE
*         my-cluster-admin@my-cluster   my-cluster   my-cluster-admin

Validate K8s Cluster connection

kubectl get nodes
Output example

PS C:\Users\Administrator\Documents> kubectl get nodes
NAME                                   STATUS   ROLES           AGE   VERSION
my-cluster-wglt6-dlpqm                 Ready    control-plane   49m   v1.35.5+vmware.1
my-cluster-wglt6-jv9t5                 Ready    control-plane   47m   v1.35.5+vmware.1
my-cluster-wglt6-n9m25                 Ready    control-plane   45m   v1.35.5+vmware.1
my-cluster-workers-qjq5s-xj695-2kt4z   Ready              48m   v1.35.5+vmware.1
my-cluster-workers-qjq5s-xj695-dff4g   Ready              48m   v1.35.5+vmware.1
my-cluster-workers-qjq5s-xj695-p55n8   Ready              48m   v1.35.5+vmware.1
