Supervisor with "NSX + CTGW/Edge/T0"

This section describes the requirements for deploying the Supervisor utilizing an "NSX + CTGW/Edge/T0" architecture inside a vSphere environment.

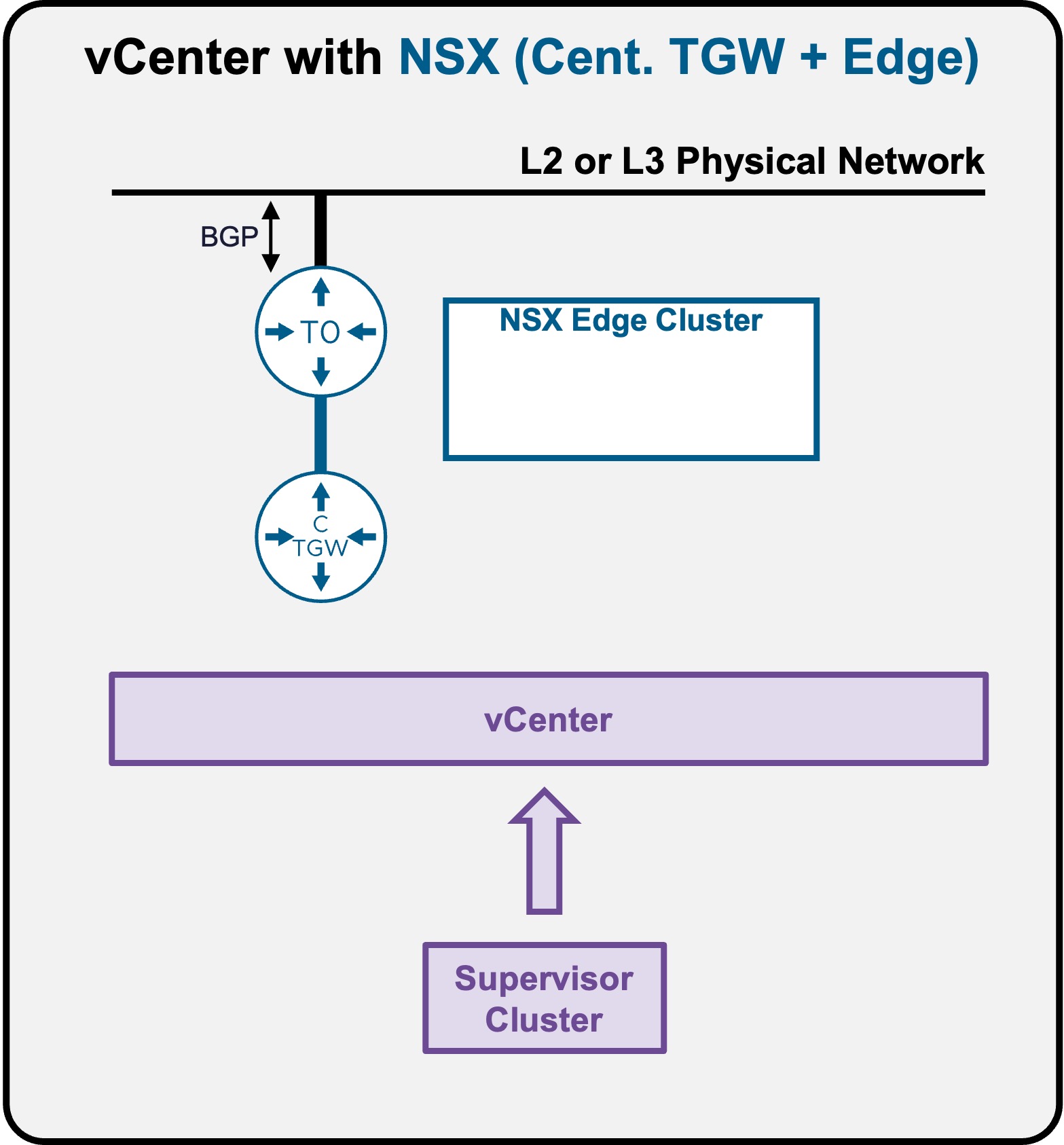

CTGW Architecture

Requirements

Supervisor with "NSX + CTGW/Edge/T0" has the following networking requirements:

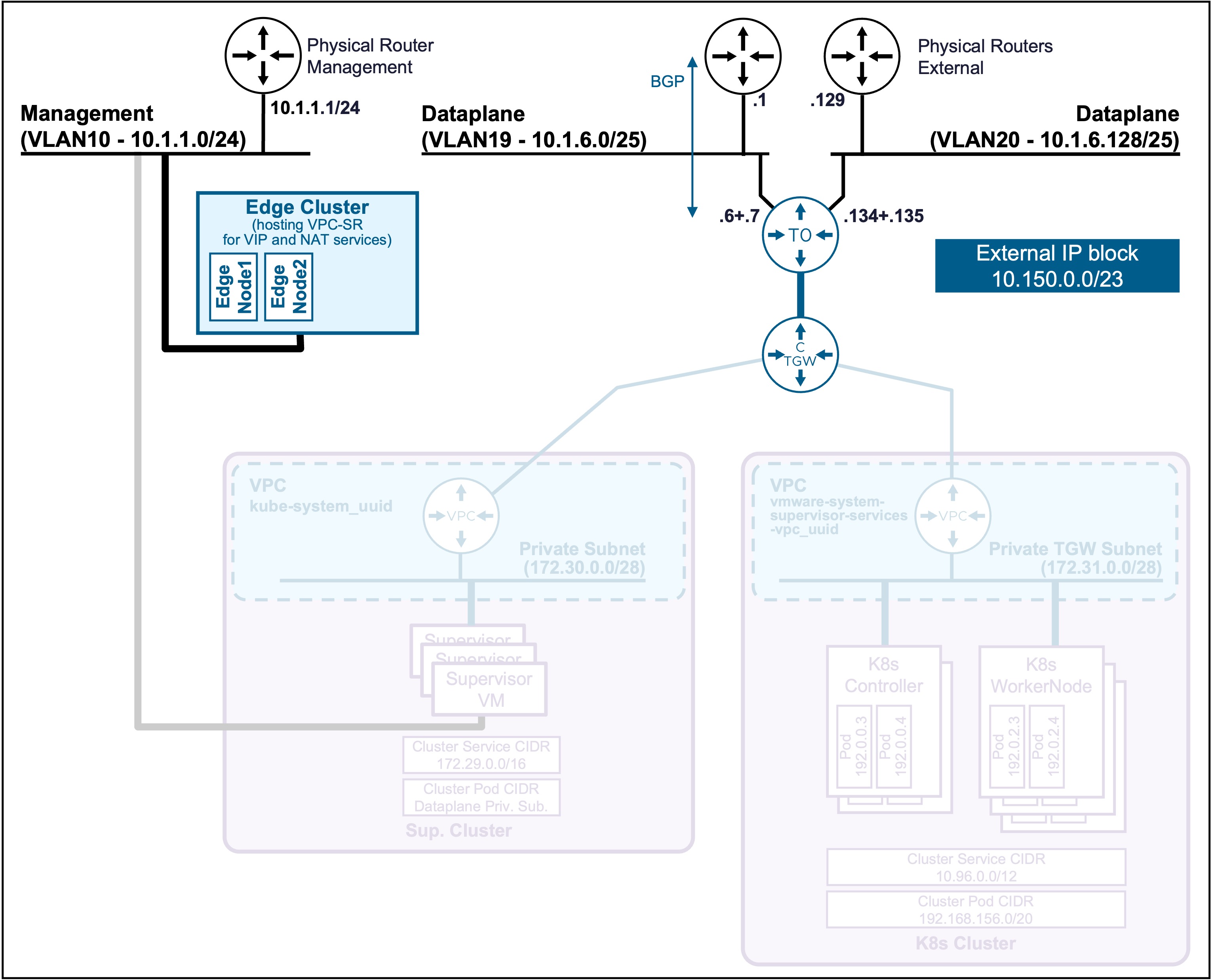

Topology

Physical Fabric

1 Subnet/VLAN

  • Management:
    Can be an existing Management subnet/VLAN that already hosts other components (such as vCenter).
    Requires 5 consecutive IPs (for the Supervisor Cluster).

BGP Dynamic Routing Protocol

  • BGP configured between the physical routers and T0 with:
    • The physical routers advertising themself as default gateway to the T0
    • The T0 advertising the future VPC Subnets public, VIP and NAT

vCenter

VDS Port Group

  • Management:
    VDS Port Group VLAN for the Management traffic.

    Status Validation

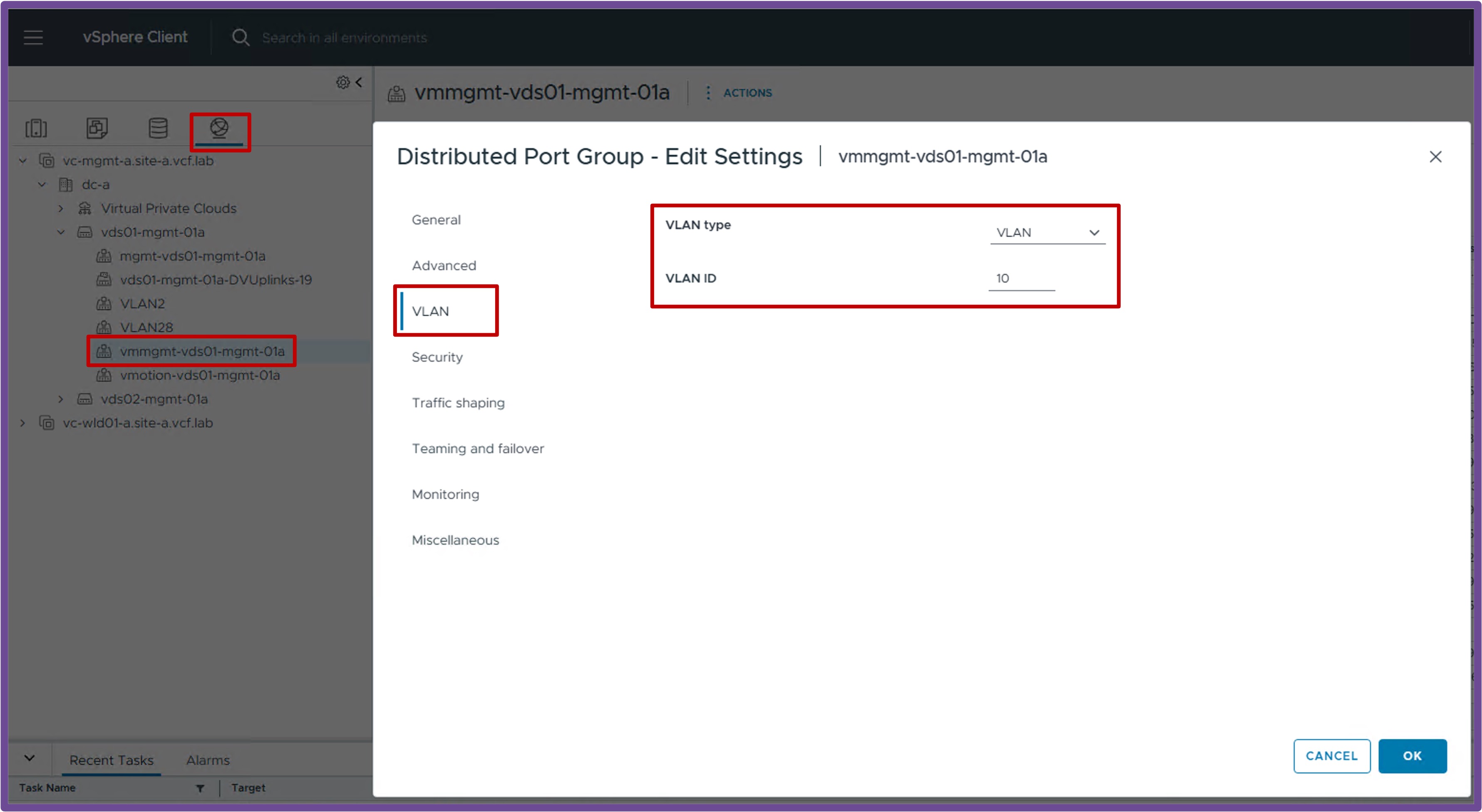

    Navigate to vCenter > Networking > VDS-PortGroup > Edit Settings > VLAN.
    Ensure the VLAN Type is "VLAN" with the right "VLAN ID": VDS Port Group Settings

NSX

Missing NSX Requirements?

If your environment is not yet configured with the NSX prerequisites below, please refer to:

vCenter Cluster "VCF Networking ready (NSX Overlay)"

  • vCenter Cluster with NSX Prepared
    The vCenter Cluster must be prepared for VCF Networking so the future Supervisor Cluster can connect to the VPC.

    Status Validation

    Navigate to vCenter > Host and Clusters > [your vCenter Cluster] > Configure > Networking > Network Configuration.
    Ensure "Cluster Status" and "Host Status" are "Green", and ESX have at least 1 TEP IP Address:

    Note: If no workloads have been deployed on logical networks yet, it is normal to have zero tunnels established on the ESX hosts.

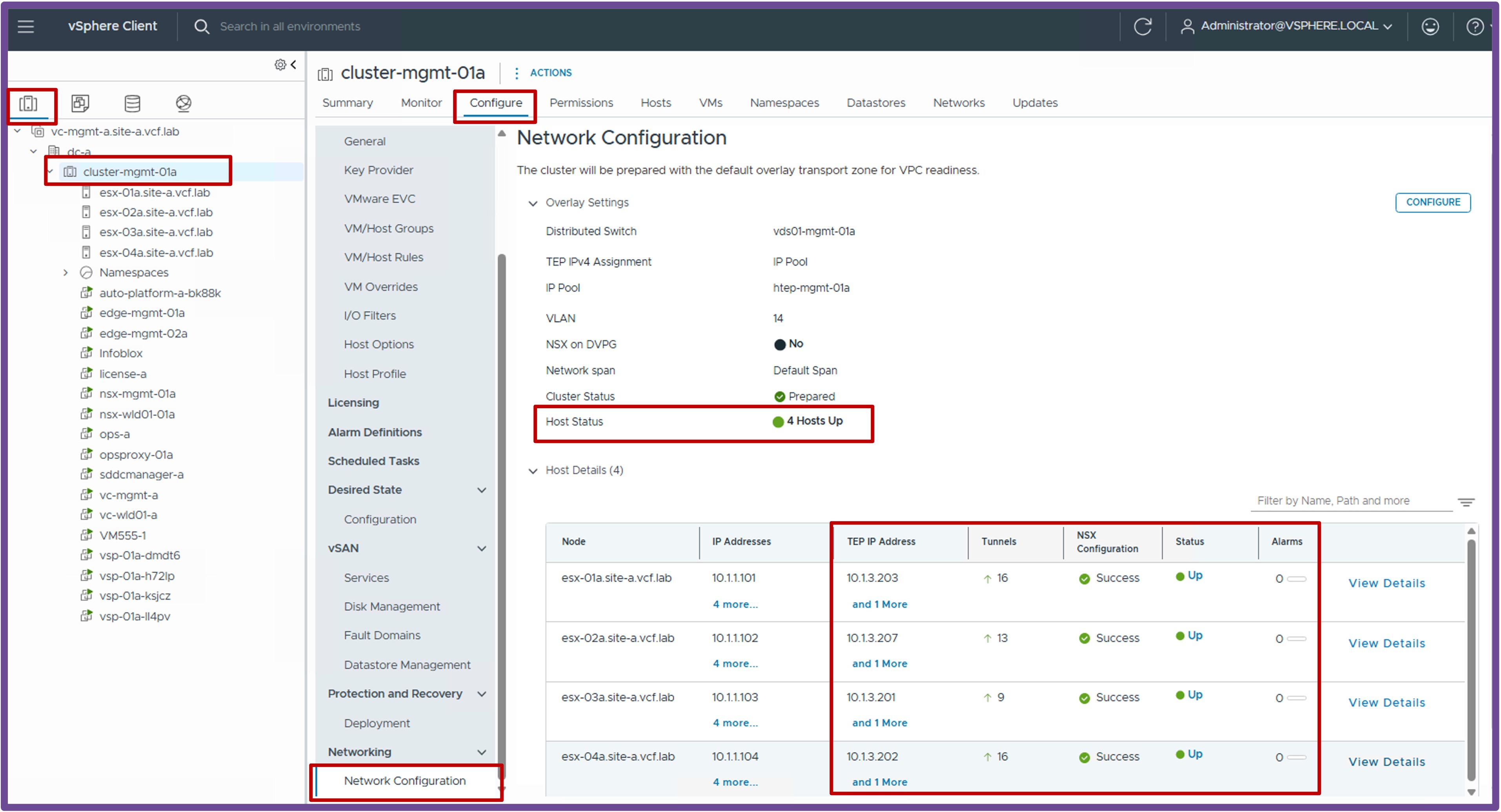

    NSX Host Preparation Status

vCenter with "CTGW + Edge + T0 ready"

  • Edge Cluster
    The Edge Cluster hosts the Load Balancing and Outbound-NAT services (providing NAT for Supervisor / K8s Clusters communicating with the physical network).

    Status Validation

    Navigate to vCenter > Networking > vCenter > Configure > Networking > Edge Clusters.

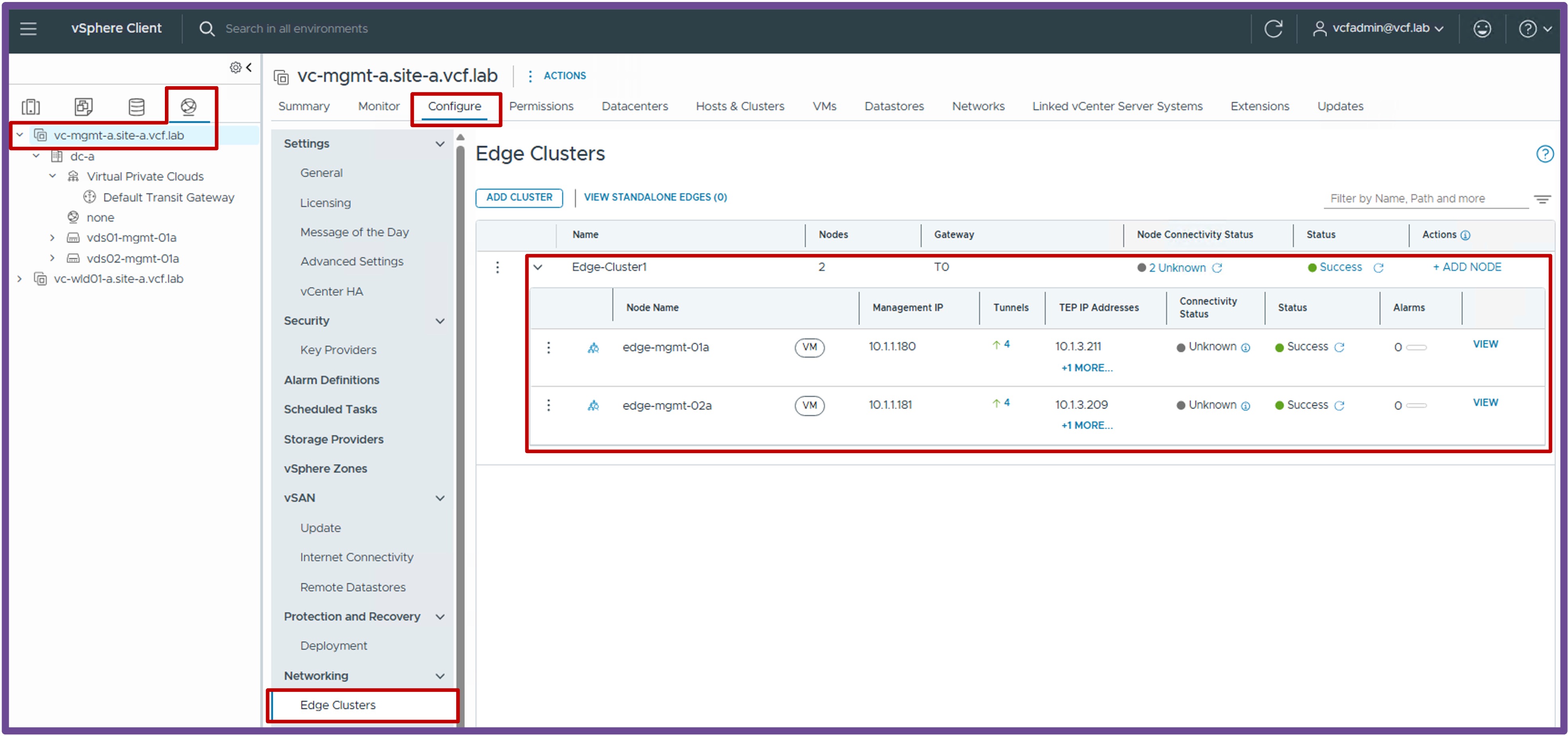

    Ensure the Edge Cluster with its Nodes is deployed and shows a Green status. Edge Cluster Status

  • Centralized External Connection
    A Centralized External Connection is the VLAN and physical router used by logical networks (such as Transit Gateways and VPCs) to connect to the physical network.

    Status Validation

    Navigate to vCenter > Networking > vCenter > Configure > Networking > External Connection.

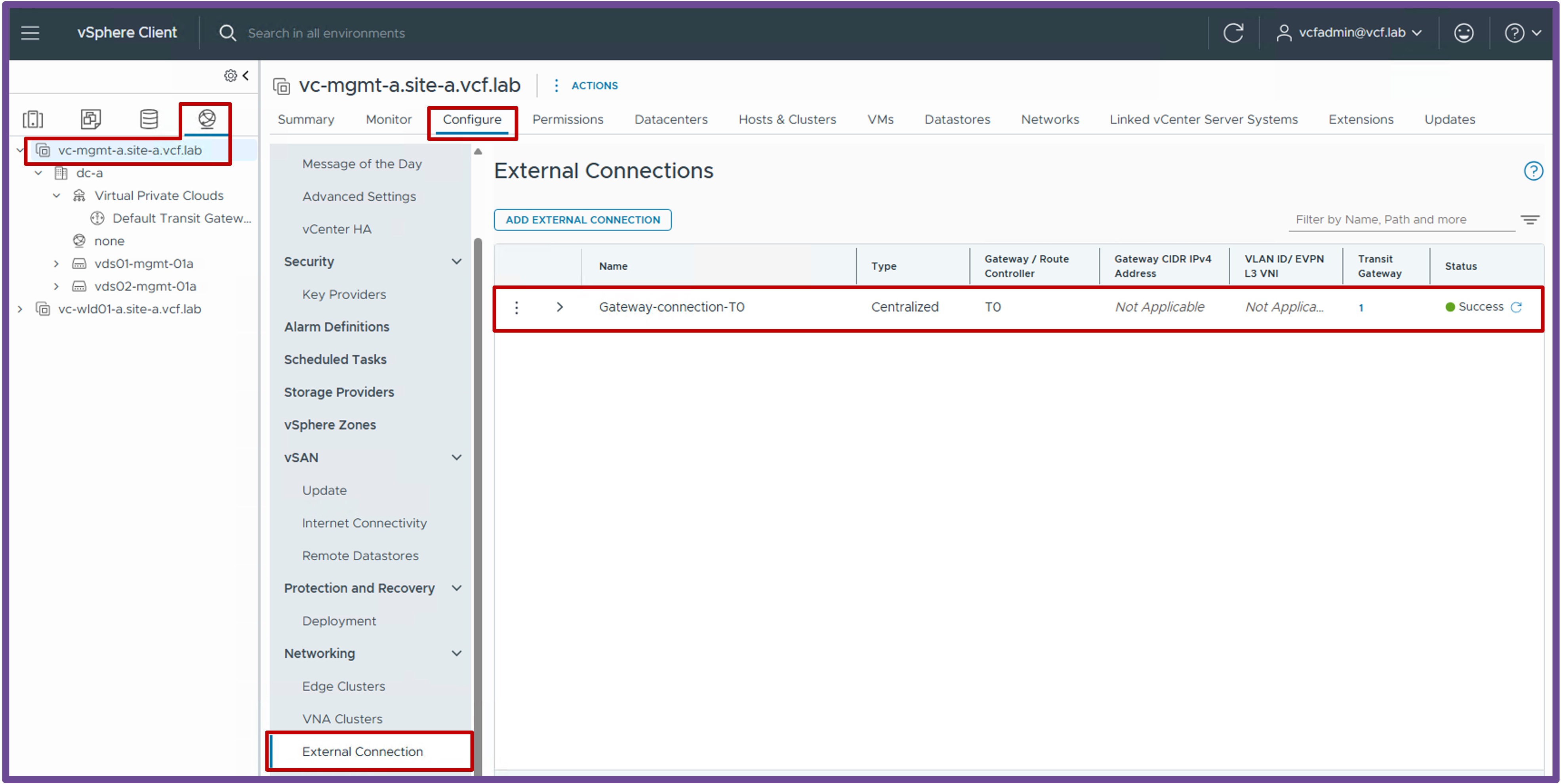

    Ensure you have at least 1 Centralized External Connection configured: Ext Conn Properties

  • IP Blocks
    The External IP Block is for the future K8s VIPs, VPC Outbound-NAT, and VPC Public Subnet (IP Block is the full Dataplane subnet or part of it).

    Status Validation

    Navigate to vCenter > Networking > Virtual Private Clouds > Configure > Settings > IP Blocks.

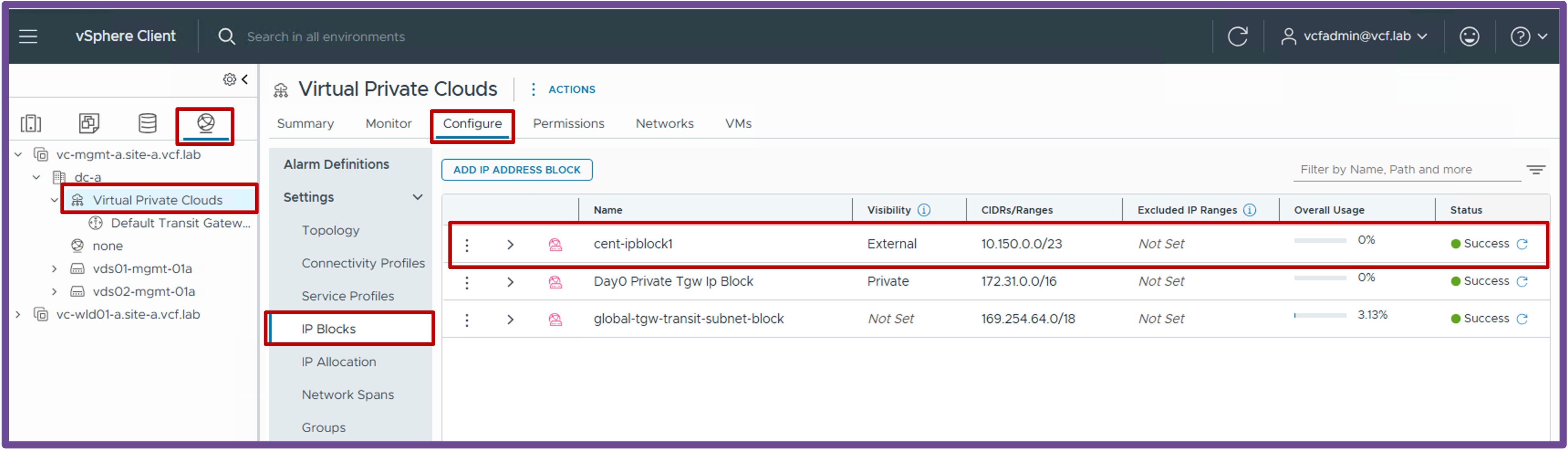

    Ensure you have at least 1 External IP Block configured: IP Blocks Properties

  • Connectivity Profile
    The Connectivity Profile binds the CTGW configuration (Edge Cluster, Outbound-NAT, and N-S Services for Load Balancing).

    Status Validation

    Navigate to vCenter > Networking > Virtual Private Clouds > Configure > Settings > Connectivity Profiles.
    Ensure the Connectivity Profile has the following configured:

    • External and Private Transit Gateway IP Blocks selected
    • An Edge Cluster selected
    • N-S Services enabled (for the LB service)
    • Default Outbound NAT enabled (for NAT)

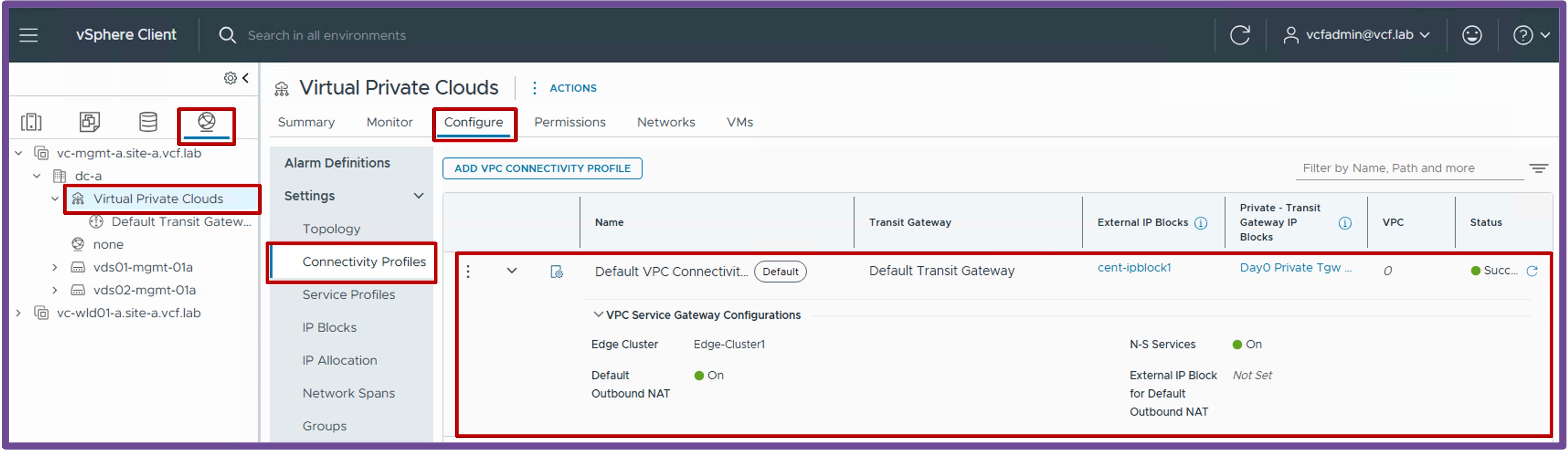

    Connectivity Profile Properties

  • Centralized Transit Gateway (CTGW)
    The Centralized Transit Gateway is the Centralized logical router responsible for routing traffic between the VPC(s) and Tier-0.

    Status Validation

    Navigate to vCenter > Networking > Default Transit Gateway > Configure > Settings > Properties.

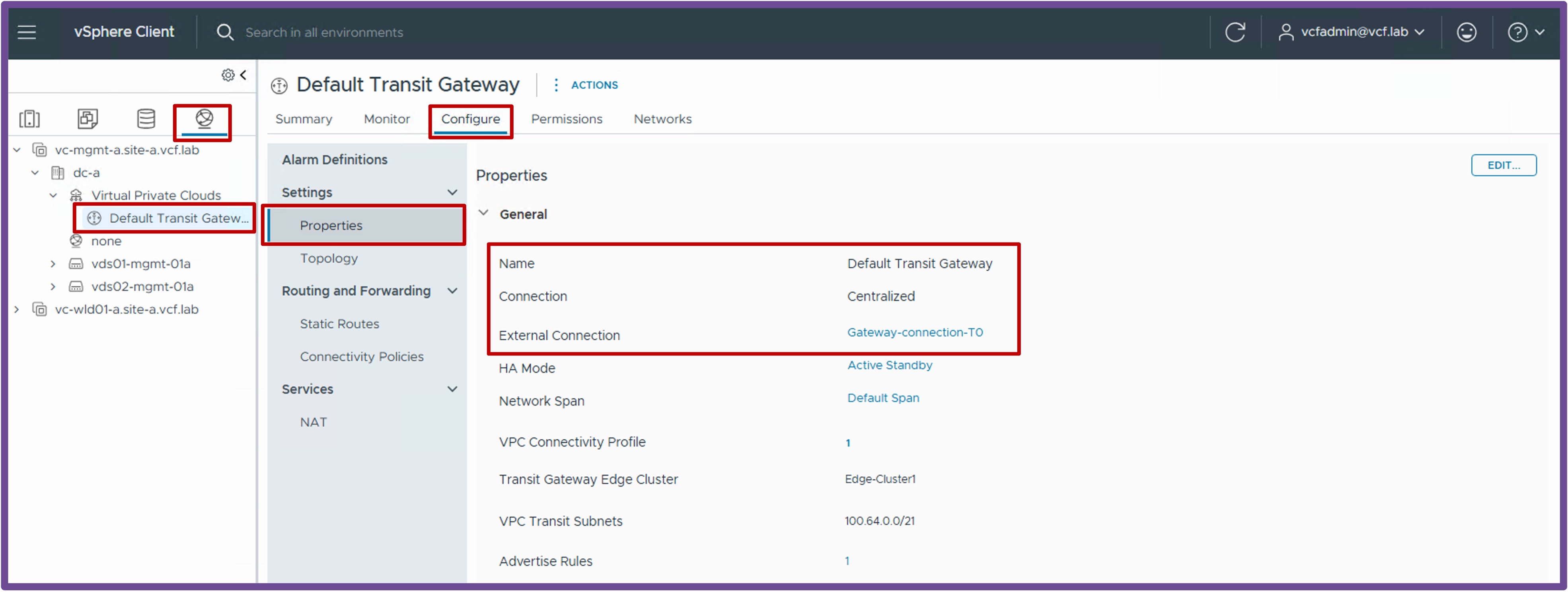

    Ensure the CTGW has a Connection Type of "Centralized", and an External Connection configured. CTGW Properties

  • Tier-0 (T0)
    The Tier-0 is the logical router responsible for routing traffic between the logical and physical networks.

    Status Validation

    The T0 status is only available from NSX.
    Navigate to NSX > Networking > Tier-0 Gateways.

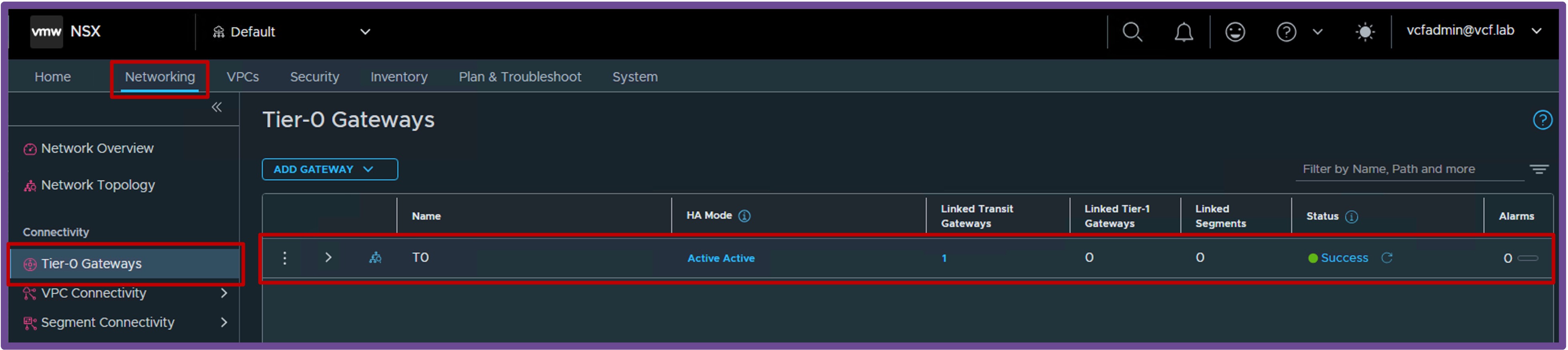

    Ensure the T0 has a Green status and no Alarms. T0 Status
