Supervisor with "VDS + FLB"

This section describes the procedures for deploying the Supervisor Namespace utilizing a "VDS + FLB" architecture inside a vSphere environment.

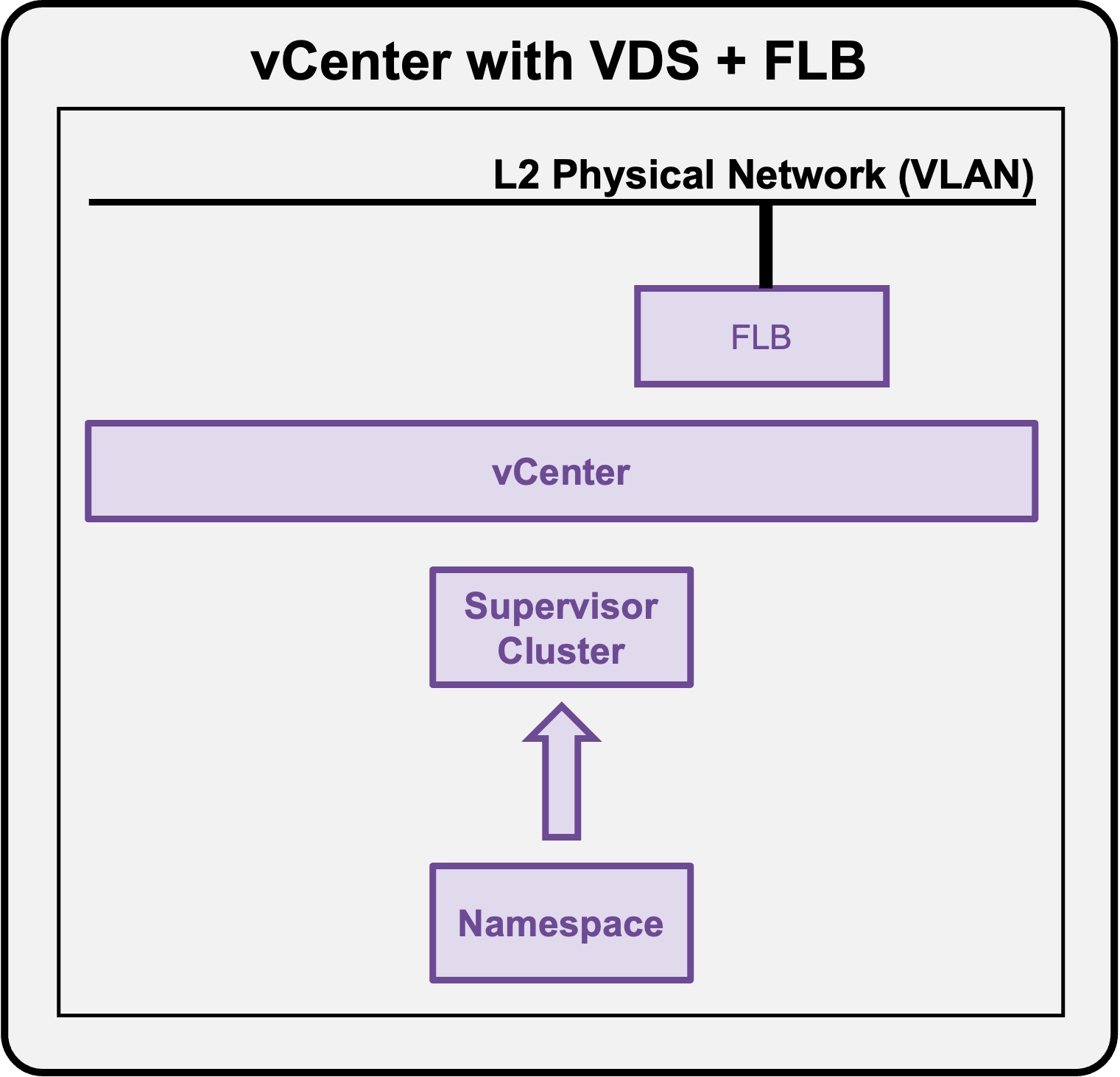

VDS Architecture

Supervisor Access

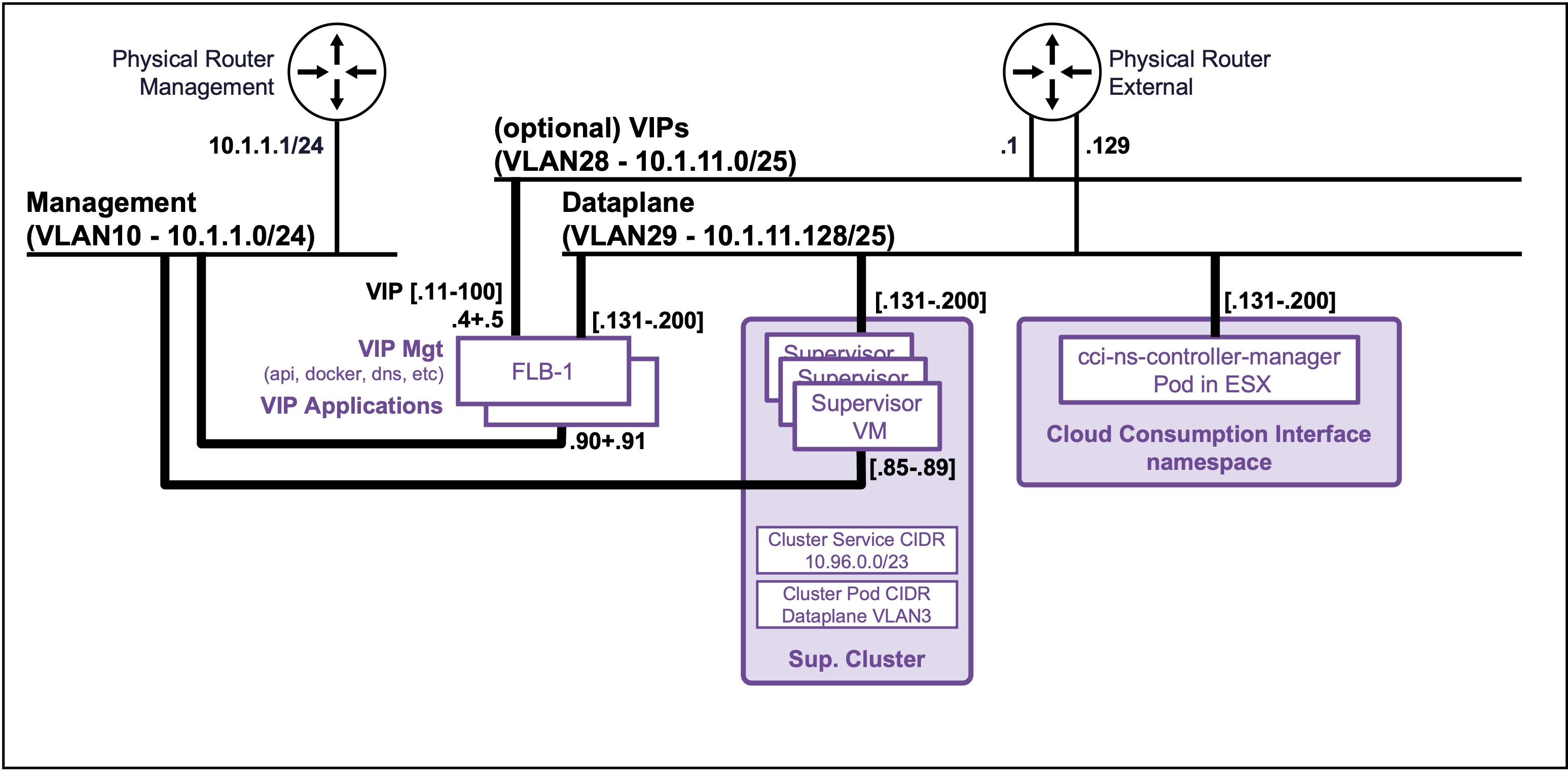

Topology

Client Operating System

While the command outputs below are captured from a Windows client, the vcf and kubectl CLI tools operate identically across Linux and macOS environments.

Connect to Supervisor

Find Supervisor Control Plane IP Address

Navigate to vCenter > Supervisor Management > Supervisors.

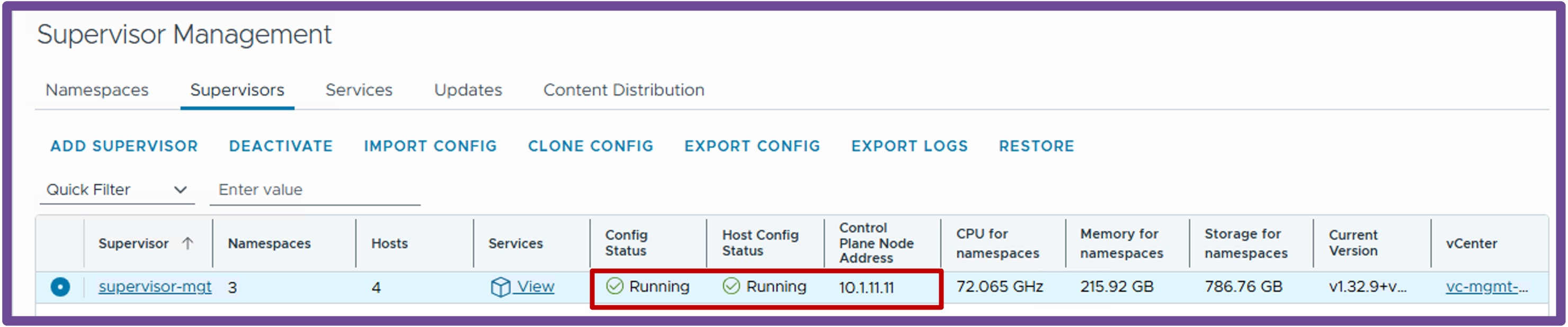

Supervisor Validation Status

Connect to the Supervisor

From your K8s client:

  • Create once the VCF Context

    vcf context create supervisor-mgt --endpoint=10.1.11.11 --type k8s --username administrator@vsphere.local --insecure-skip-tls-verify

    Output example

    PS C:\Users\Administrator\Documents> vcf context create supervisor-mgt --endpoint=10.1.11.11 --type k8s --username administrator@vsphere.local --insecure-skip-tls-verify
[i] Some initialization of the CLI is required.
[i] Let's set things up for you.  This will just take a few seconds.

[i] Refreshing plugin inventory cache for "projects.packages.broadcom.com/vcf-cli/plugins/plugin-inventory:latest", this will take a few seconds.
[i] Reading plugin inventory for "projects.packages.broadcom.com/vcf-cli/plugins/plugin-inventory:latest", this will take a few seconds.
[i]
[i] Initialization done!
[i] ==
[i] The vcf cli essential plugins have not been installed and are being installed now. The install may take a few seconds.
[i] Installing plugins from plugin group 'vmware-vcfcli/essentials:v9.0.2'
[i] Installed plugin 'telemetry:v9.0.2'

[i] Auth type vSphere SSO detected. Proceeding for authentication...
Provide Password: VMWware123!VMware123!

Logged in successfully.

You have access to the following contexts:
    supervisor-mgt
    supervisor-mgt:demo-space
    supervisor-mgt:svc-cci-ns-hzbv0
    supervisor-mgt:svc-tkg-m829h
    supervisor-mgt:svc-velero-xqgz5

If the namespace context you wish to use is not in this list, you may need to refresh the context again, or contact your cluster administrator.

To change context, use vcf context use <context_name>
[ok] successfully saved context: supervisor-mgt
[ok] successfully saved context: supervisor-mgt:svc-tkg-m829h
[ok] successfully saved context: supervisor-mgt:svc-velero-xqgz5
[ok] successfully saved context: supervisor-mgt:svc-cci-ns-hzbv0
[ok] successfully saved context: supervisor-mgt:demo-space

  • Connect to the Supervisor

    vcf context use supervisor-mgt
    Output example

    PS C:\Users\Administrator\Documents> vcf context use supervisor-mgt
[ok] Token is still active. Skipped the token refresh for context "supervisor-mgt"
[i] Successfully activated context 'supervisor-mgt' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-mgt'...
[i] Installing the following plugins recommended by context 'supervisor-mgt':
  NAME                INSTALLING
  addon               v3.6.1
  cluster             v3.6.1
  kubernetes-release  v3.6.1
  namespaces          v9.1.0
  package             v3.6.1
  registry-secret     v3.6.1
  vm                  v9.1.0
[i] Installed plugin 'addon:v3.6.1'
[i] Installed plugin 'cluster:v3.6.1'
[i] Installed plugin 'kubernetes-release:v3.6.1'
[i] Installed plugin 'package:v3.6.1'
[i] Installed plugin 'registry-secret:v3.6.1'

Validate Supervisor Access

  • Validate Supervisor Connection

    vcf context list
    Output example

    PS C:\Users\Administrator\Documents> vcf context list
NAME                             CURRENT  TYPE
supervisor-mgt                   true     kubernetes
supervisor-mgt:demo-space        false    kubernetes
supervisor-mgt:svc-cci-ns-hzbv0  false    kubernetes
supervisor-mgt:svc-tkg-m829h     false    kubernetes
supervisor-mgt:svc-velero-xqgz5  false    kubernetes

[i] Use '--wide' to view additional columns.

  • Validate the access to the Supervisor context
    To test the connection, you can check the worker nodes on that Supervisor (these are the hosts).

    kubectl get nodes

    Output example

    PS C:\Users\Administrator\Documents> kubectl get nodes
NAME                               STATUS   ROLES                  AGE   VERSION
421fc1eaaae9d72dee945e941a9d76e9   Ready    control-plane,master   2d    v1.32.9+vmware.2-fips
esx-01a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-02a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-03a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-04a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
