Deploy "NSX Overlay in vCenter Cluster"

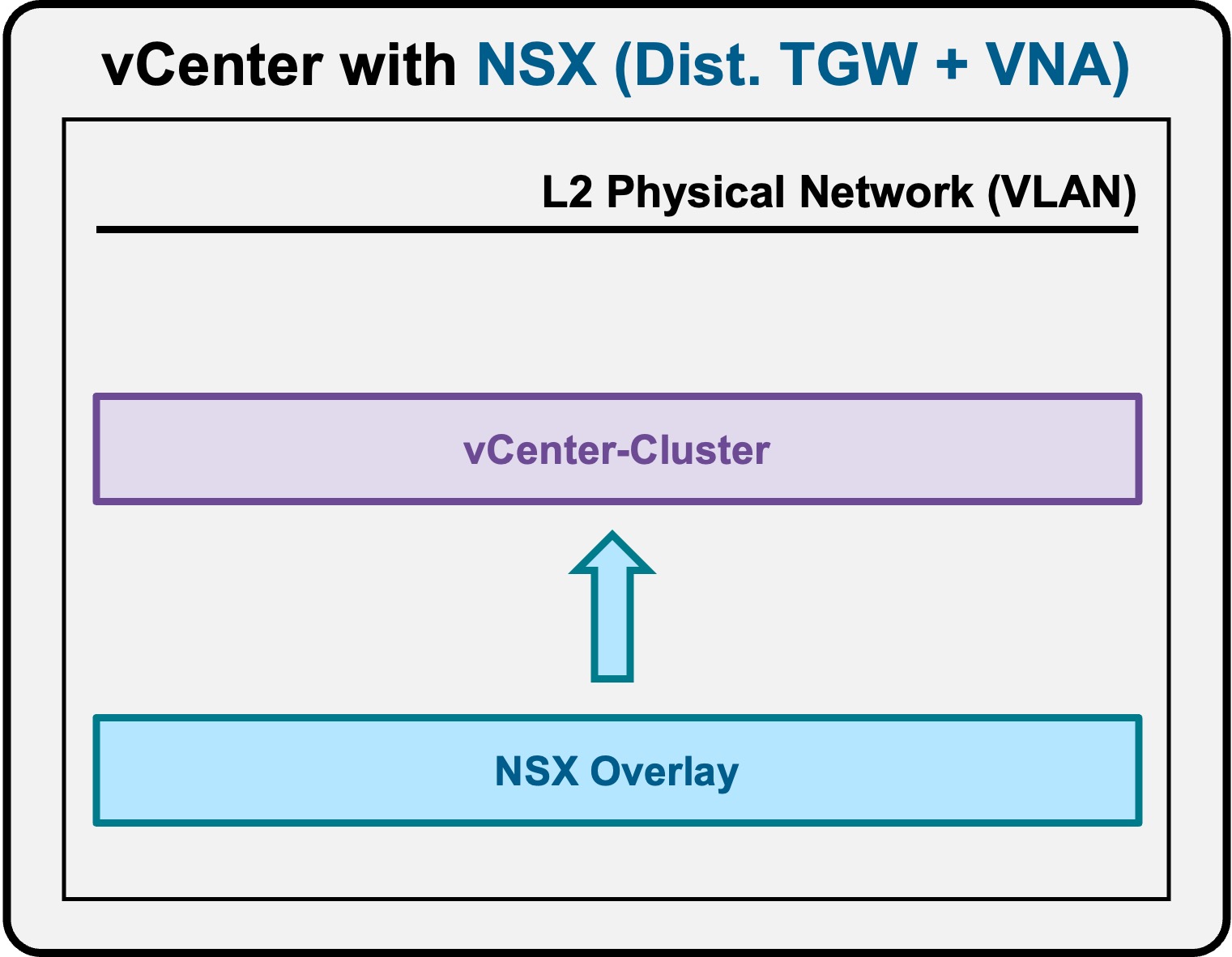

This section describes the requirements for deploying the Supervisor utilizing an "NSX + DTGW/VNA" architecture inside a vSphere environment.

• Requirements
• Install Requirements
  • NSX Overlay
  • DTGW + VNA

---

Installation

From VCF 9.0, all workload domains have NSX Overlay configured in vCenter Clusters.

---

Validate NSX Overlay

Navigate to vCenter > Host and Clusters > [your vCenter Cluster] > Configure > Networking > Network Configuration.
Ensure "Cluster Status" and "Host Status" are "Green", and ESX have at least 1 TEP IP Address:
Note: If no workloads are deployed on logical networks yet, it is expected to have no Tunnels established on the ESX hosts.
