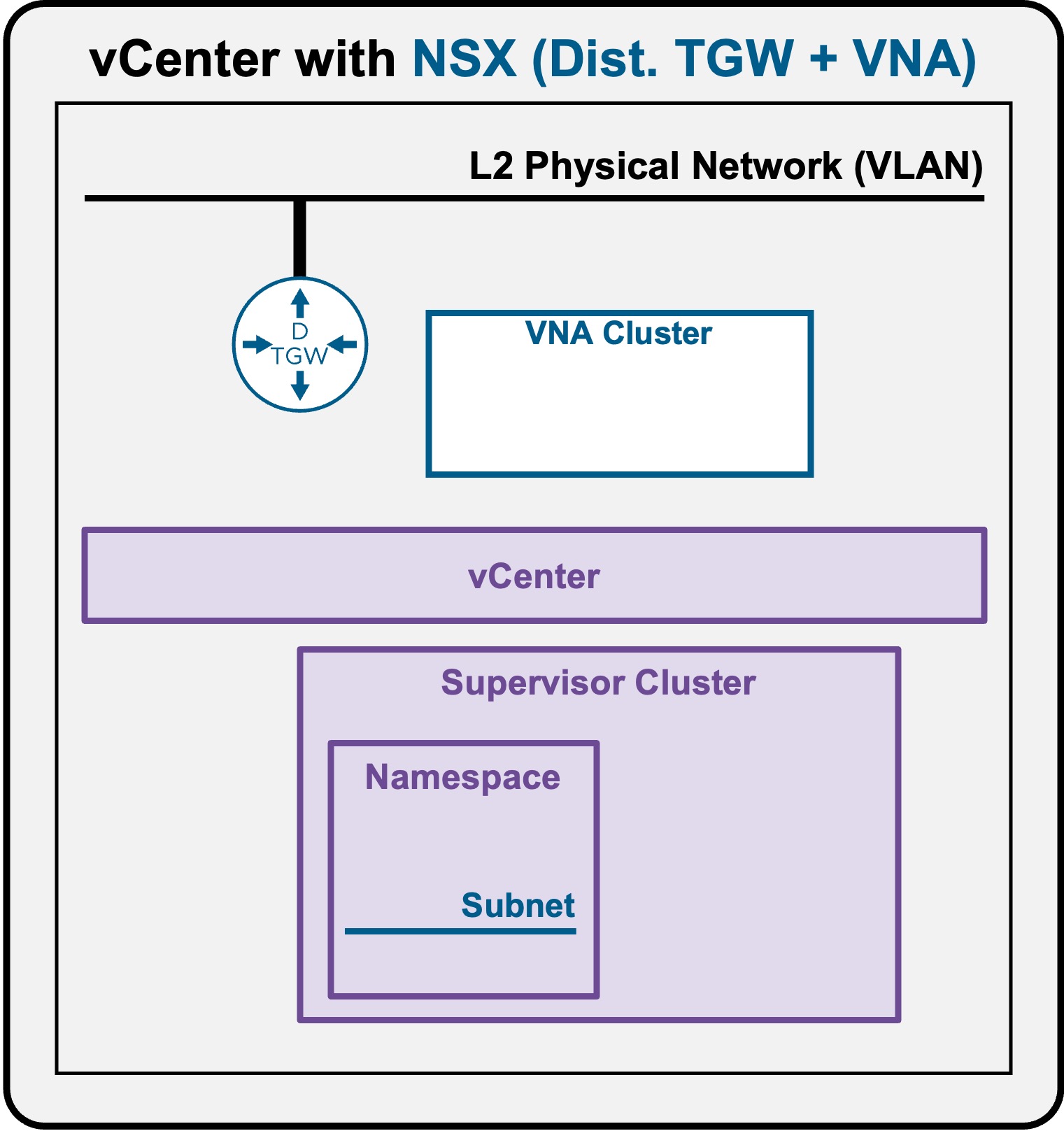

Supervisor with "NSX + DTGW/VNA"

This section describes the procedures for provisioning and managing Network Services within a VKS Namespace utilizing an "NSX + DTGW/VNA" architecture inside a vSphere environment.

• Network Services
  • Subnets
  • SubnetSets
  • Static Routes
  • External IPs
  • VM Load Balancers

---

Network Services - Subnets

Create Subnet

Navigate to vCenter > Supervisor Management > Supervisors, select your target Supervisor, click the Namespaces tab, and select your specific Namespace.

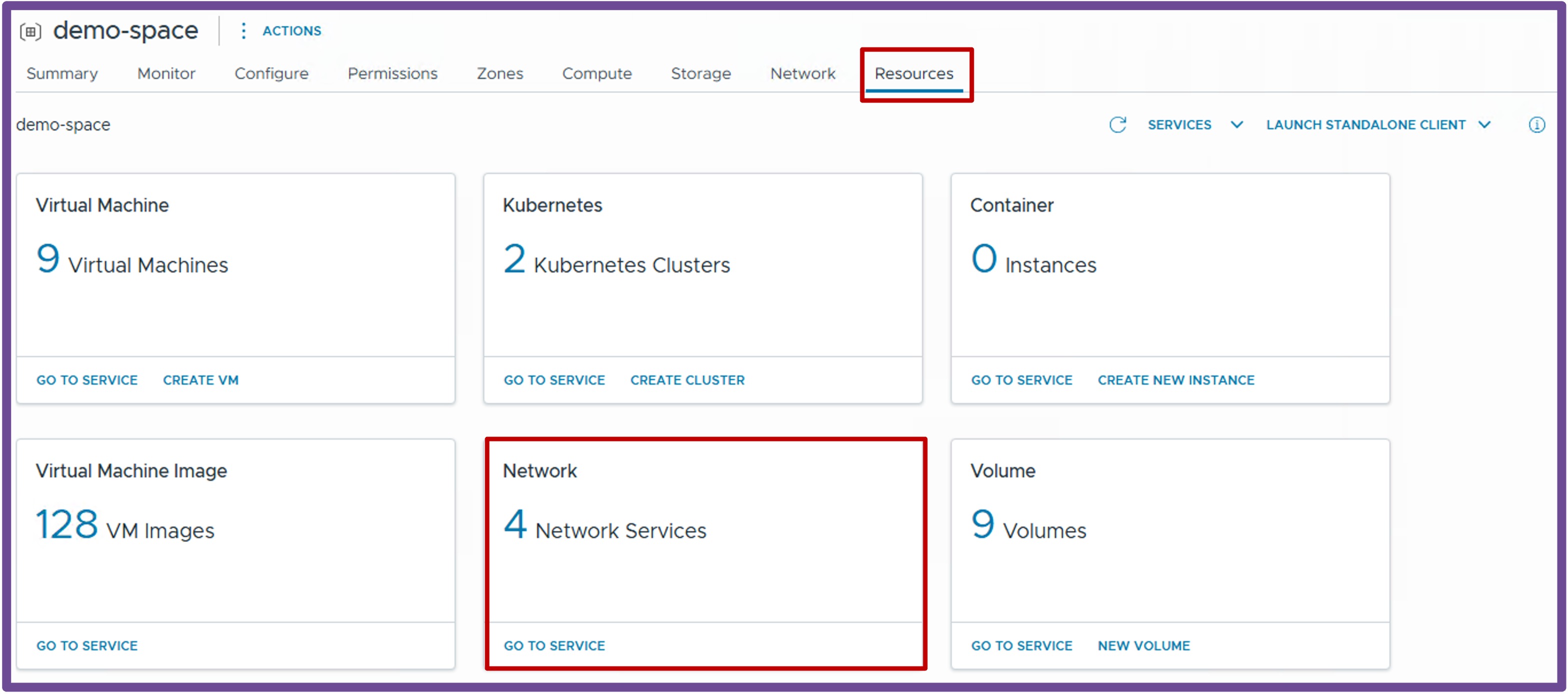

Under the Resources card, click Network - Go to Service.

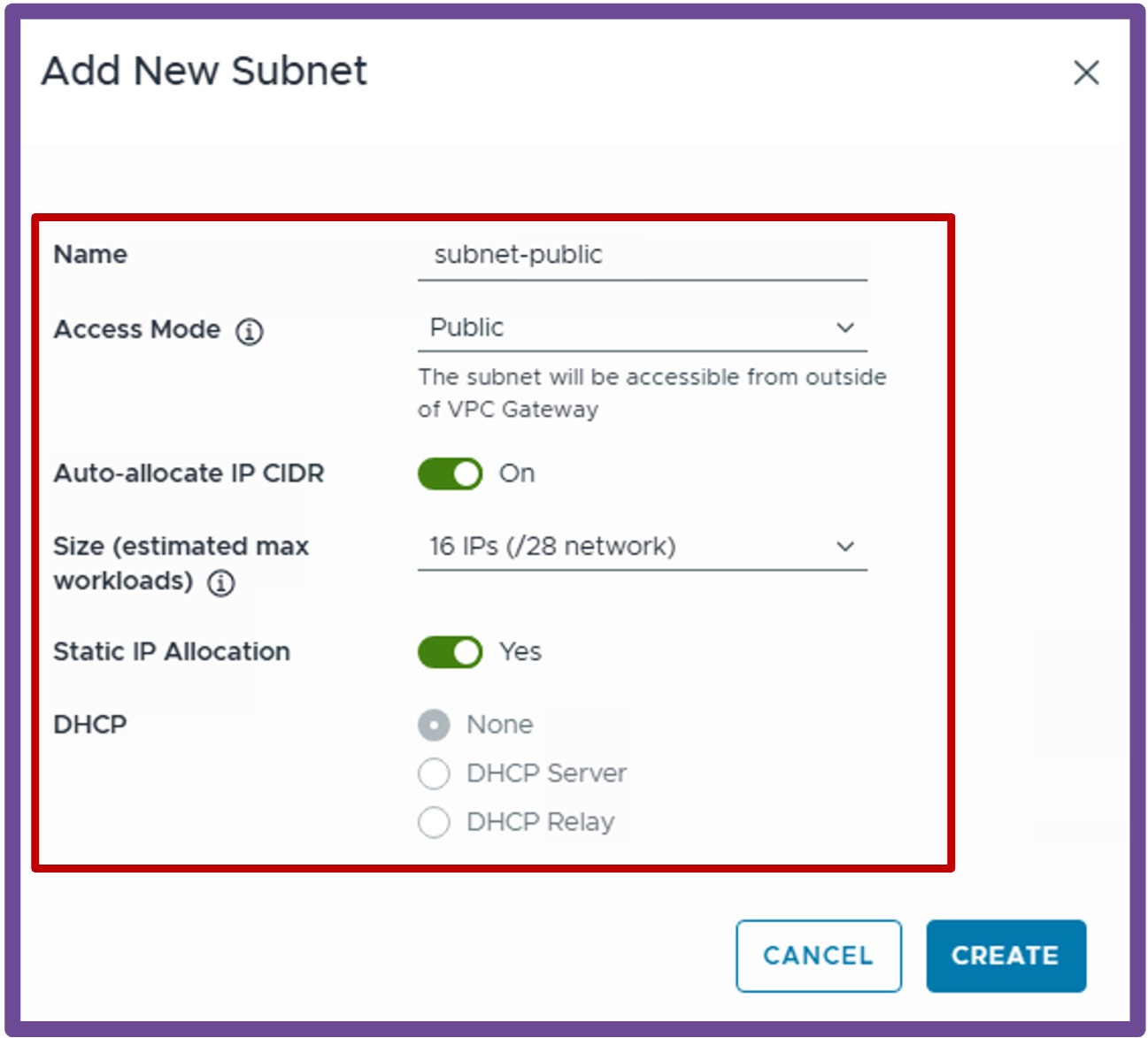

1. Create New Subnet
   Navigate to Subnets, and click New Subnet.


For more information about Subnets settings review the VPC Subnet Overlay page.

---

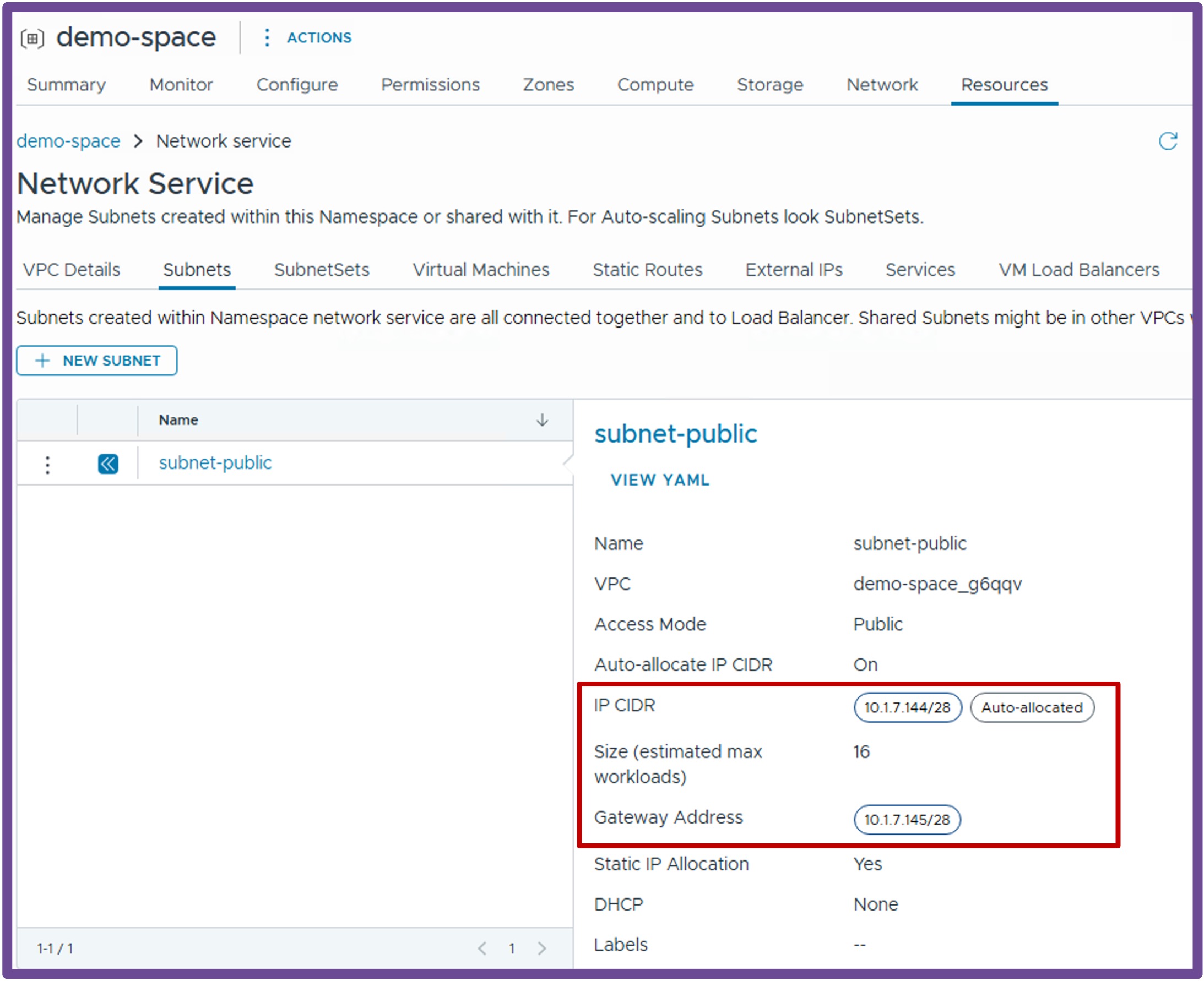

Validate Subnet Creation

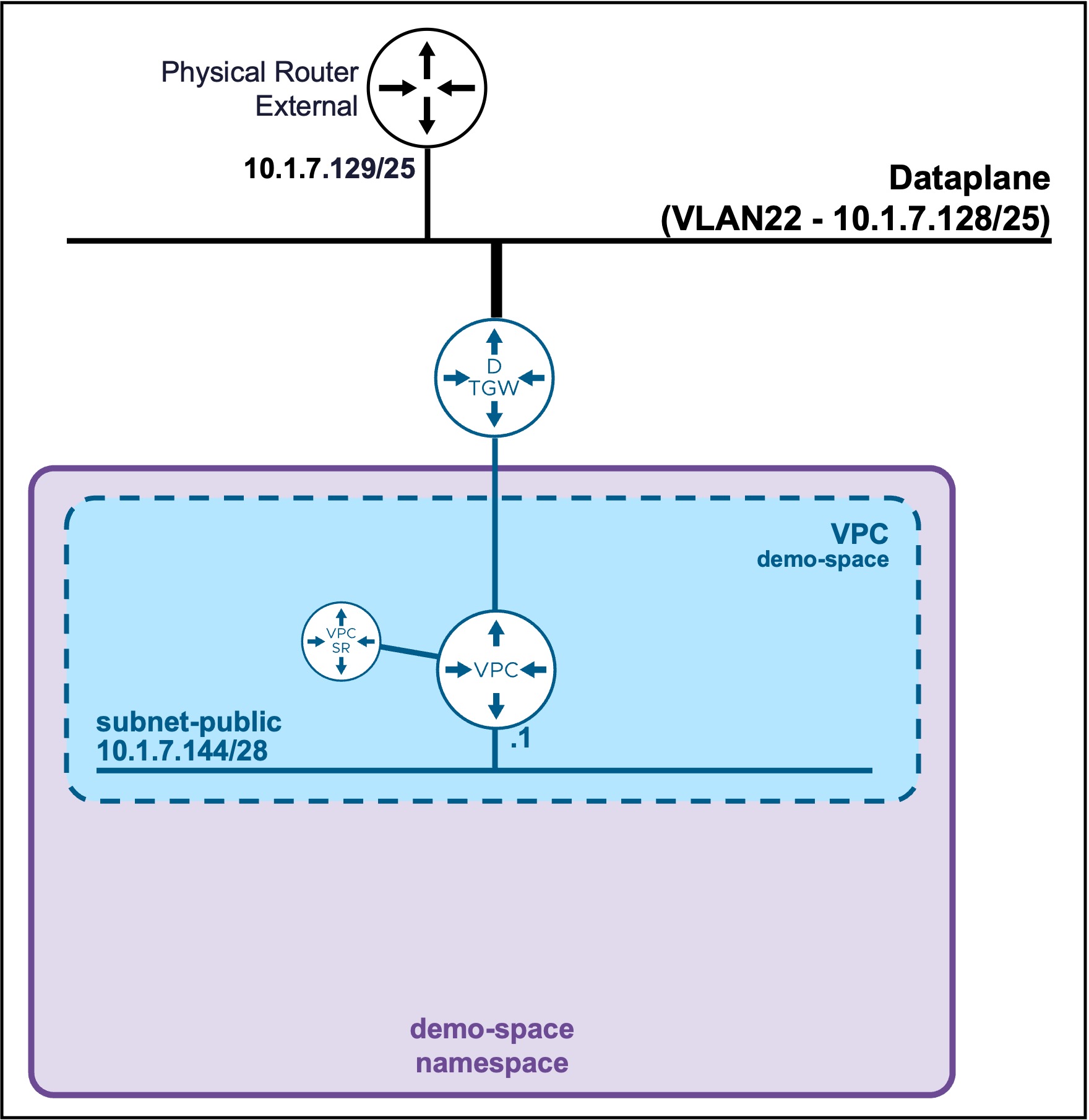

Expand the newly created Subnet to view its assigned CIDR and VPC Gateway.
