Supervisor with "VDS + FLB"
This section describes the procedures for Troubleshooting Network Services into the VKS Namespace utilizing a "VDS + FLB" architecture" inside a vSphere environment.
Packet Walk - E/W VM to VM
Multiple VMs have been deployed (see Application Deployment > App Deployment (VMs) > via CLI).
View

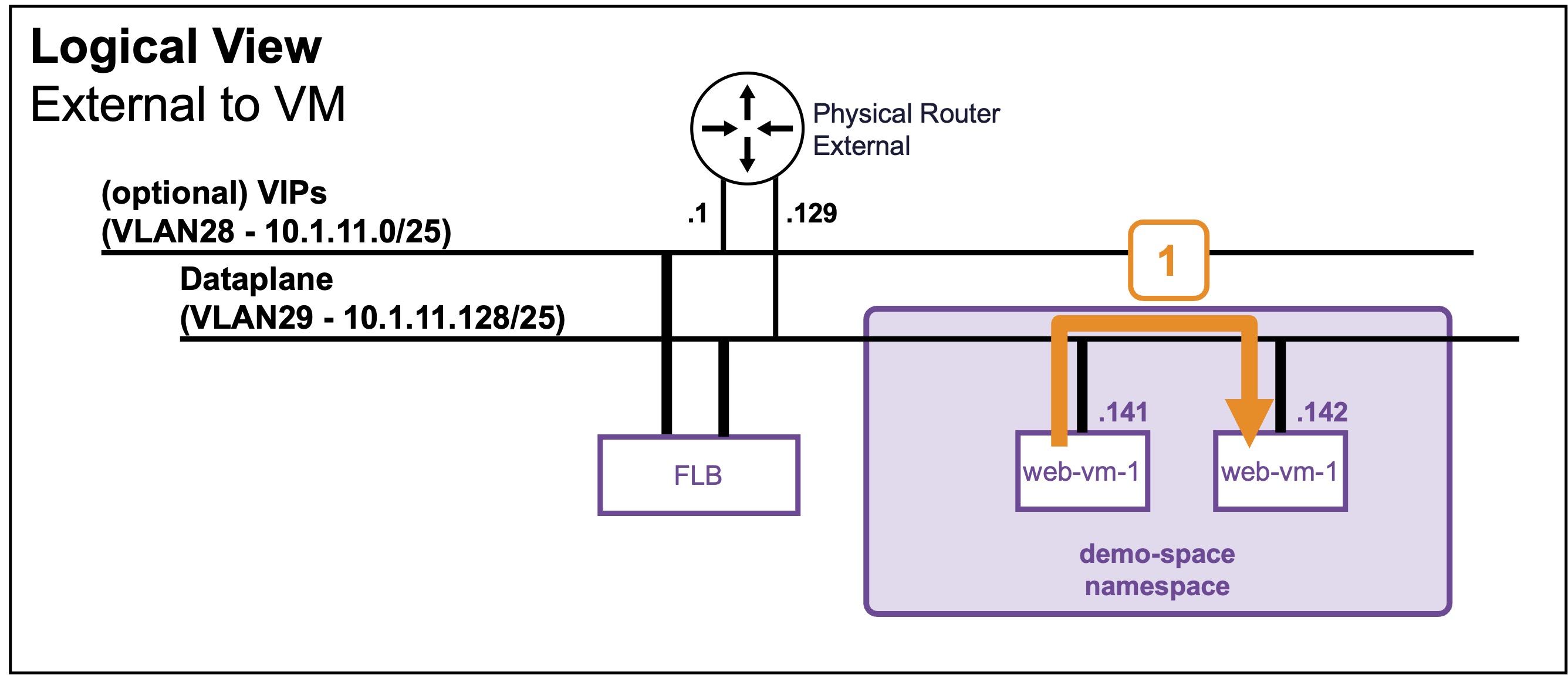

Logical View
Physical View

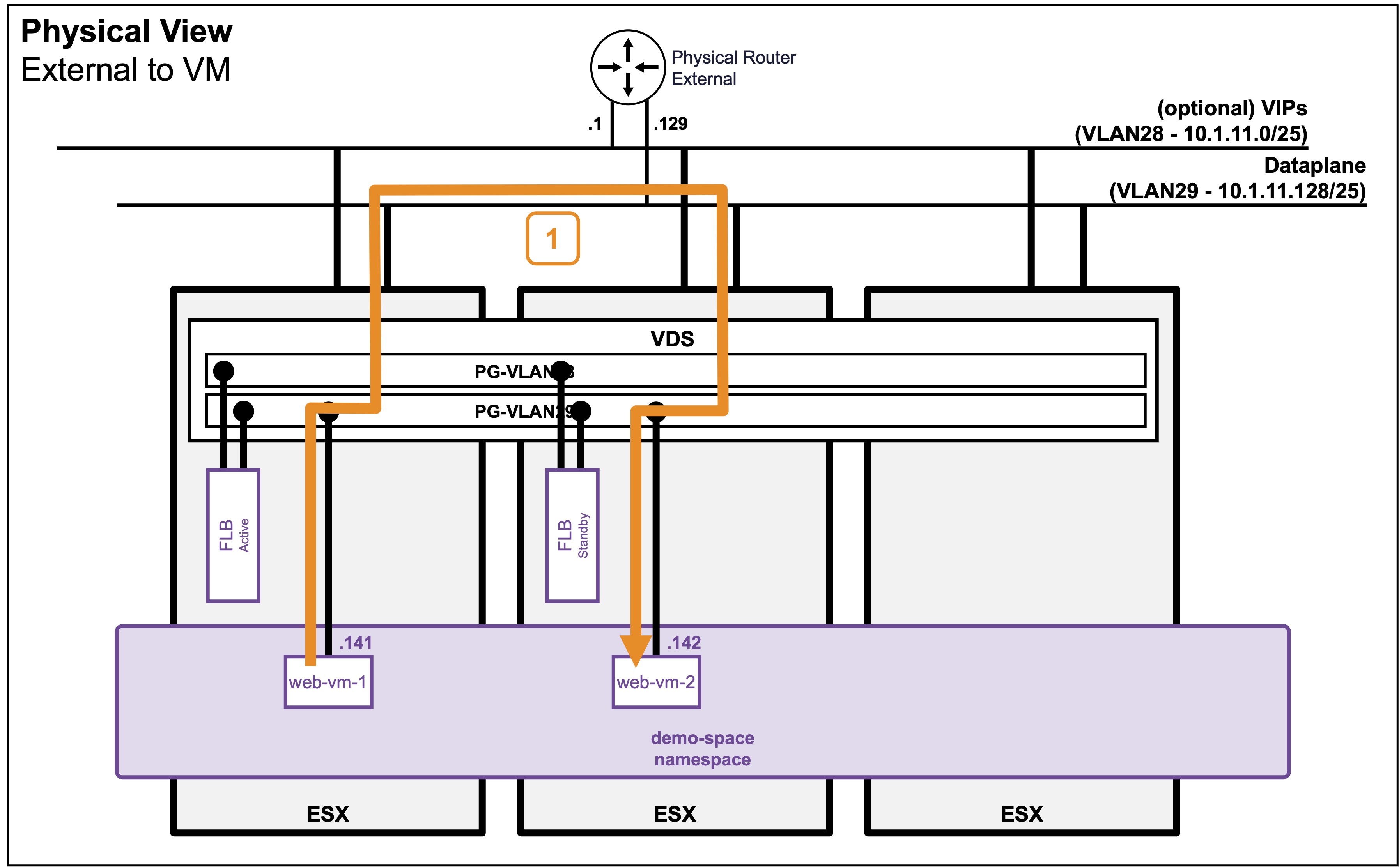

Packet Walk
- Step1: External Client accesses the VM
VM1 (10.1.11.141) => VM2 (10.1.11.142)
