Supervisor with "NSX + CTGW/Edge/T0"

This section describes the requirements for deploying a Supervisor Namespace utilizing an "NSX + CTGW/Edge/T0" architecture inside a vSphere environment.

VDS Architecture

Supervisor Access

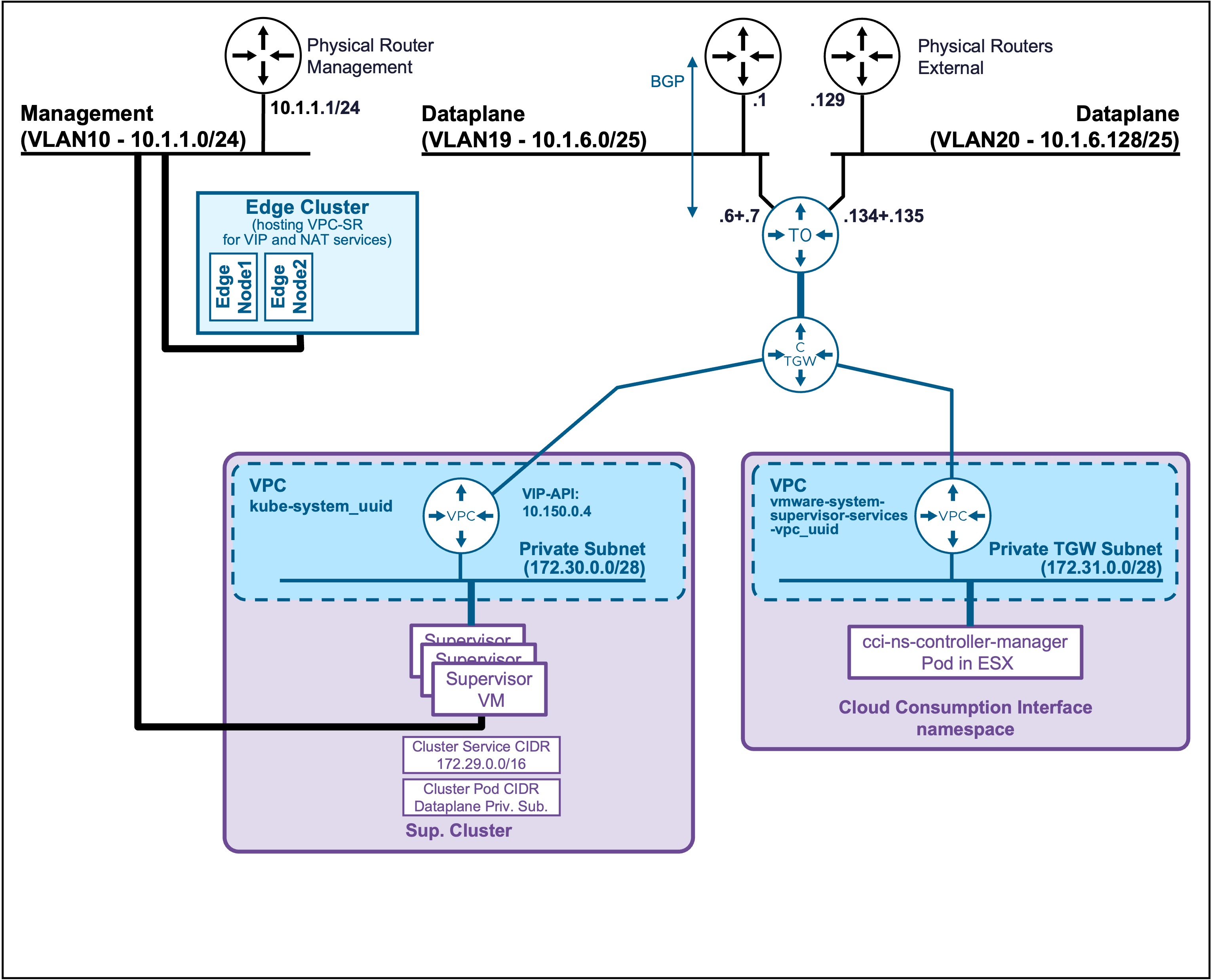

Topology

Client Operating System

While the command outputs below are captured from a Windows client, the vcf and kubectl CLI tools operate identically across Linux and macOS environments.

Connect to Supervisor

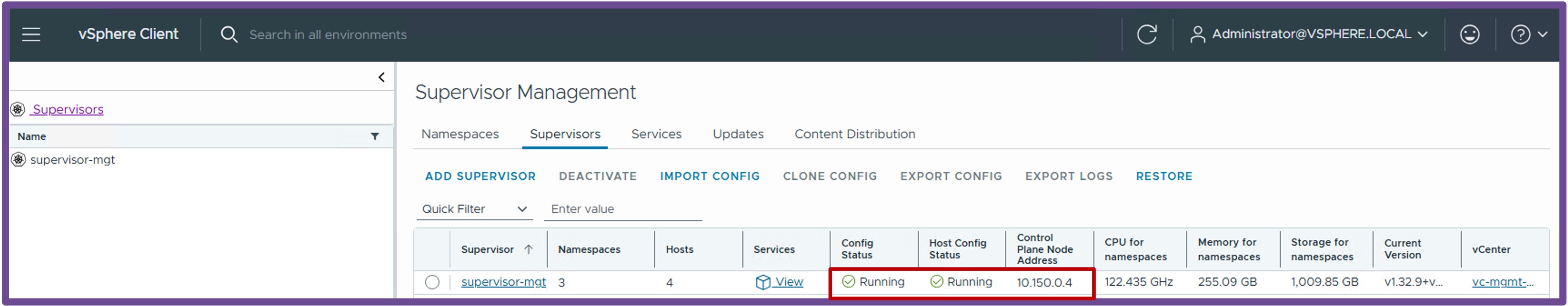

Find Supervisor Control Plane IP Address

Navigate to vCenter > Supervisor Management > Supervisors.
Supervisor Validation Status

Connect to the Supervisor

From your K8s client:

  • Create once the VCF Context

    vcf context create supervisor-mgt --endpoint=10.150.0.4 --type k8s --username administrator@vsphere.local --insecure-skip-tls-verify

    Output example

    PS C:\Users\Administrator\Documents> vcf context create supervisor-mgt --endpoint=10.150.0.4 --type k8s --username administrator@vsphere.local --insecure-skip-tls-verify
[i] Some initialization of the CLI is required.
[i] Let's set things up for you.  This will just take a few seconds.

[i] Refreshing plugin inventory cache for "projects.packages.broadcom.com/vcf-cli/plugins/plugin-inventory:latest", this will take a few seconds.
[i] Reading plugin inventory for "projects.packages.broadcom.com/vcf-cli/plugins/plugin-inventory:latest", this will take a few seconds.
[i]
[i] Initialization done!
[i] ==
[i] The vcf cli essential plugins have not been installed and are being installed now. The install may take a few seconds.
[i] Installing plugins from plugin group 'vmware-vcfcli/essentials:v9.0.2'
[i] Installed plugin 'telemetry:v9.0.2'

[i] Auth type vSphere SSO detected. Proceeding for authentication...
Provide Password: VMware123!VMware123!

Logged in successfully.

You have access to the following contexts:
  supervisor-mgt
  supervisor-mgt:svc-cci-ns-e3xwm
  supervisor-mgt:svc-tkg-ou5pn
  supervisor-mgt:svc-velero-z04hr

If the namespace context you wish to use is not in this list, you may need to refresh the context again, or contact your cluster administrator.

To change context, use vcf context use <context_name>
[ok] successfully saved context: supervisor-mgt
[ok] successfully saved context: supervisor-mgt:svc-cci-ns-e3xwm
[ok] successfully saved context: supervisor-mgt:svc-tkg-ou5pn
[ok] successfully saved context: supervisor-mgt:svc-velero-z04hr

  • Connect to the Supervisor

    vcf context use supervisor-mgt
    Output example

    PS C:\Users\Administrator\Documents> vcf context use supervisor-mgt
[ok] Token is still active. Skipped the token refresh for context "supervisor-mgt"
[i] Successfully activated context 'supervisor-mgt' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-mgt'...
[i] Installing the following plugins recommended by context 'supervisor-mgt':
  NAME                INSTALLING
  addon               v3.6.1
  cluster             v3.6.1
  kubernetes-release  v3.6.1
  namespaces          v9.1.0
  package             v3.6.1
  registry-secret     v3.6.1
  vm                  v9.1.0
[i] Installed plugin 'addon:v3.6.1'
[i] Installed plugin 'cluster:v3.6.1'
[i] Installed plugin 'kubernetes-release:v3.6.1'
[i] Installed plugin 'package:v3.6.1'
[i] Installed plugin 'registry-secret:v3.6.1'

Validate Supervisor Access

  • Validate Supervisor Connection

    vcf context list
    Output example

    PS C:\Users\Administrator\Documents> vcf context list
NAME                             CURRENT  TYPE
supervisor-mgt                   true     kubernetes
supervisor-mgt:svc-cci-ns-e3xwm  false    kubernetes
supervisor-mgt:svc-tkg-ou5pn     false    kubernetes
supervisor-mgt:svc-velero-z04hr  false    kubernetes

[i] Use '--wide' to view additional columns.

  • Validate the access to the Supervisor Namespace context
    To test the connection, you can check the worker nodes on that Supervisor (these are the ESX hosts).

    kubectl get nodes

    Output example

    PS C:\Users\Administrator\Documents> kubectl get nodes
NAME                               STATUS   ROLES                  AGE   VERSION
421f0786a120cf2c9c6b5d01ee31004b   Ready    control-plane,master   2d    v1.32.9+vmware.2-fips
esx-01a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-02a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-03a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
esx-04a.site-a.vcf.lab             Ready    agent                  2d    v1.32.5-sph-f4e887d
