Supervisor with "VDS + FLB"
This section describes the procedures for Troubleshooting Network Services into the VKS Namespace utilizing a "VDS + FLB" architecture" inside a vSphere environment.
Packet Walk - N/S External to VM
One or a few VMs have been deployed (see Application Deployment > App Deployment (VMs) > via CLI).
View

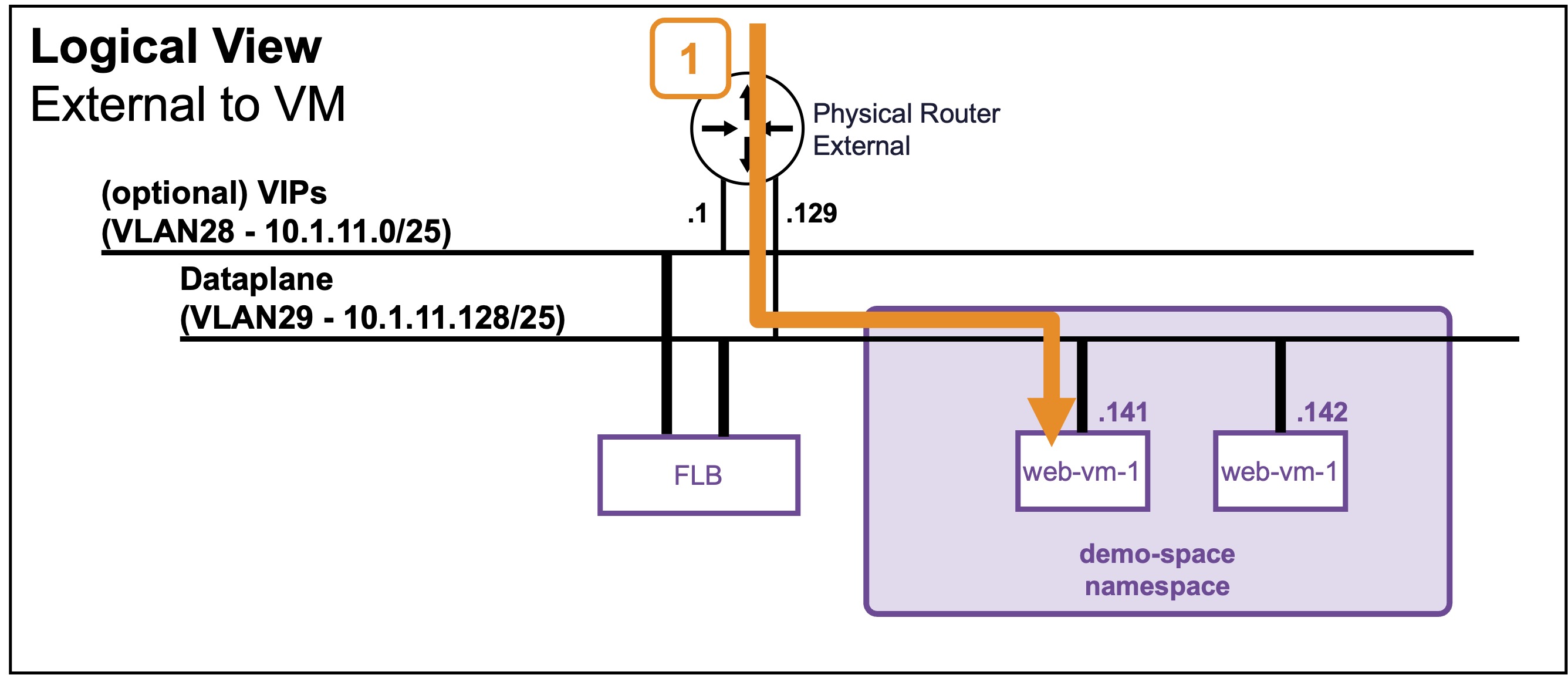

Logical View

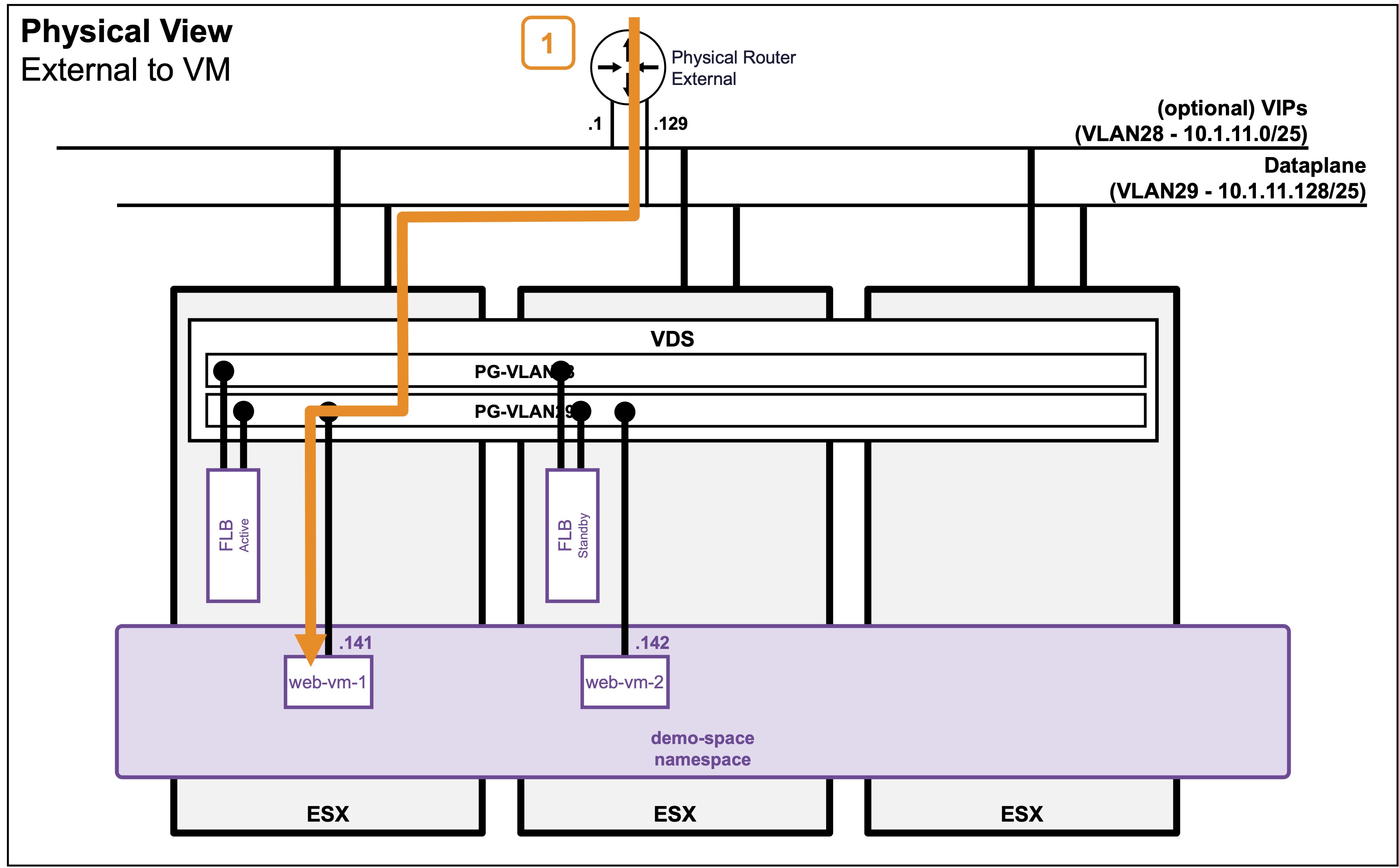

Physical View
- Use case: VM connected to Public Subnet
Packet Walk
-
Step1: External Client accesses the VM
Client-IP => VM1 (10.1.11.141)The traffic enters the ESX hosting the VM.
