Adding to an Adapter

Object Model

What is the Object Model?

At runtime, Aria Operations Manager creates objects representing data sources in the adapter. Every adapter must include an object model that provides object types, object properties, and semantic definitions describing resources and the metric data's meaning. The object model can be defined by using a describe.xml file, which should be defined in the conf directory, or it can be defined using the definition module from the Python Adapter Library by defining the AdapterDefinition object returned by The get_adapter_definition() method in app/adapter.py.

describe.xml vs. AdapterDefinition

When running mp-build, mp-test collect, or mp-test test they call the get_adapter_definition() method and then generate describe.xml file with the AdapterDefinition object. If a describe.xml file is present in the conf directory, then the object returned by the get_adapter_definition method will be ignored.

Defining an Adapter and Adapter Instance in the Object Model

To define an adapter in the conf/describe.xml file use the top-level AdapterKind element. Only one adapter can be defined in the object model. The key will be used when creating objects (See Creating an object), and must also be present in the manifest.txt file in the "adapter_kinds" array. When defining an adapter, we also have to define an adapter instance type. An adapter instance is a special object in VMware Aria Operations that stores user configuration for a connection. Every adapter must have exactly one adapter instance type. The Adapter instance type is set by defining a ResourceKind element with attribute type=7. in Python, we can use the AdapterDefinition.

1
2
def get_adapter_definition() -> AdapterDefinition:
   definition = AdapterDefinition("MyAdapter", "My Adapter")

1
2
3
4
5
6
<AdapterKind key="MyAdapter" nameKey="1" version="1" >
    <CredentialKinds/>
    <ResourceKinds>
        <ResourceKind key="MyAdapter_adapter_instance" nameKey="2" type="7" credentialKind=""/>
    </ResourceKinds>
</AdapterKind>
Info

For more information about the supported elements and attributes, see the describe.xml documentation. For more information about the Python module visit Python Adapter Library.

Once an adapter instance is defined, any configuration fields (ResourceIdentifier element) and credentials (CredentialKind element) will be prompted to the user when creating an account in VMware Aria Operations on the Data Sources → Integrations page (See Adding a Configuration Field to an Adapter Instance and Adding a Credential. After the account has been created, configuration fields will be available in the input to the collect, test, and get_endpoint methods. (See Creating an Adapter Instance.)

Adding a Configuration Field to an Adapter Instance in the Object Model

Adapter instance identifiers distinguish between adapter instances from the same adapter. They also allow for user configuration.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
  def get_adapter_definition() -> AdapterDefinition:
      definition = AdapterDefinition("MyAdapter", "My Adapter")

      definition.define_string_parameter(
          "instance",
          label="Instance",
          required=True,
      )
      definition.define_enum_parameter(
          "ssl_mode",
          values= ["Disable", "Require"],
          label="SSL",
          default="Require",
          advanced=True,
      )
      definition.define_int_parameter(
          "max_events",
          label="Max Events",
          advanced=True,
      )

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="My Adapter" nameKey="1" version="1">
  <ResourceKinds>
    <ResourceKind key="MyAdapter" nameKey="5" type="7" >
        <ResourceIdentifier dispOrder="1" key="instance" nameKey="6" required="true" type="string" identType="1"/>
        <ResourceIdentifier dispOrder="2" key="ssl_mode" nameKey="7" required="true" type="string" identType="2" enum="true">
            <enum default="false" value="Disable" />
            <enum default="true" value="Require" />
        </ResourceIdentifier>
        <ResourceIdentifier dispOrder="3" key="max_events" nameKey="8" required="false" type="integer" identType="2"/>
    </ResourceKind>
  </ResourceKinds>
  <!-- ... -->
</AdapterKind>
Info

For more information about the supported elements and attributes, see the describe.xml documentation. For more information about the Python module visit Python Adapter Library.

In the describe.xml adapter instance identifiers can have an identType of 1 or 2. A type of 1 means the identifier will be used for determining uniqueness, and will show up by default on the configuration page. If the type is 2, the identifier is non-identifying, and will show up under the 'advanced' section of the configuration page. In Python, the Parameter object has an advanced attribute that determines identType.

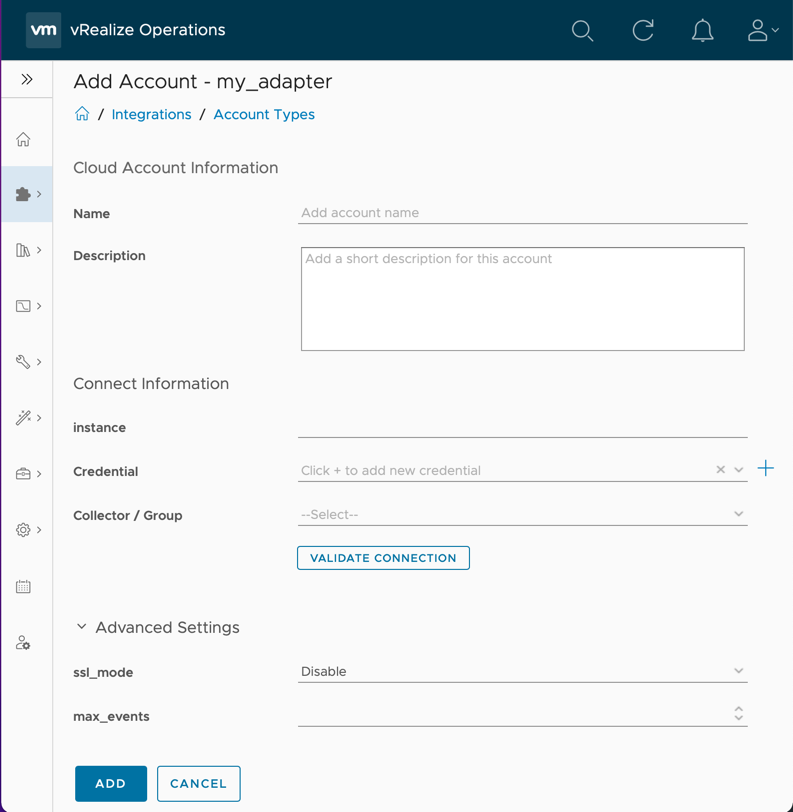

Account creation with above settings, plus a credential

Creating an account from the above xml (plus a credential). ssl_mode and max_events have an identType of 2, so they are present in 'Advanced Settings'.

Note: If there are any existing connections used by the mp-test tool before resource identifiers were created or updated, these will need to be deleted or updated.

Once an adapter instance is defined, any configuration fields (ResourceIdentifier element) will be prompted to the user when creating an account in VMware Aria Operations on the Data Sources → Integrations page. After the account has been created, configuration fields will be available to the AdapterInstance object passed to the collect, test, and get_endpoints methods defined in adapter.py. (See Creating an Adapter Instance.)

Defining a Credential in the Object Model

In order to connect to most targets a credential is required. If necessary, an adapter can have multiple different credential kinds. To add a credential to the Adapter using in the conf/describe.xml, add a CredentialKind element to AdapterKind/CredentialKinds. The CredentialKind element takes one or more CredentialField elements which correspond to an individual piece of data needed for a credential. In Python, we can use the AdapterDefinition.define_credential_type function to define a new credential type and add it to the AdapterDefinition object; then we can specify each credential field using the returned CredentialType. A typical credential that requires a username and password might look like this:

1
2
3
4
5
6
def get_adapter_definition() -> AdapterDefinition:
    definition = AdapterDefinition("MyAdapter", "My Adapter")

    credential = definition.define_credential_type("my_credential_type", "Credential")
    credential.define_string_parameter("user_name", "User Name")
    credential.define_password_parameter("user_password", "Password", required=False)

1
2
3
4
5
6
7
8
9
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="my_adapter" nameKey="1" version="1">
  <CredentialKinds>
    <CredentialKind key="my_credential_type" nameKey="2" >
      <CredentialField required="true" dispOrder="0" enum="false" key="user_name" nameKey="3" password="false" type="string"/>
      <CredentialField required="false" dispOrder="1" enum="false" key="user_password" nameKey="4" password="true" type="string"/>
    </CredentialKind>
  </CredentialKinds>
  <!-- ... -->
</AdapterKind>
Info

For more information about the supported elements and attributes, see the describe.xml documentation. For more information about the Python module visit Python Adapter Library.

When defining a credential in conf/describe.xml file, it must be added to the Adapter Instance. The adapter instance is a special ResourceKind that is used to configure an adapter. It is marked with the xml attribute/value type="7". To add the credential to the adapter instance, add an attribute credentialKind to the adapter instance's ResourceKind element, with a value of the CredentialKind's key attribute.

1
2
3
4
5
6
7
8
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="my_adapter" nameKey="1" version="1">
        <!--...-->
    <ResourceKinds>
        <ResourceKind key="my_adapter_instance" credentialKind="my_credential_type" nameKey="5" type="7" >
        <!-- ... -->
    </ResourceKind>
    </ResourceKinds>
</AdapterKind>

Adding a credential

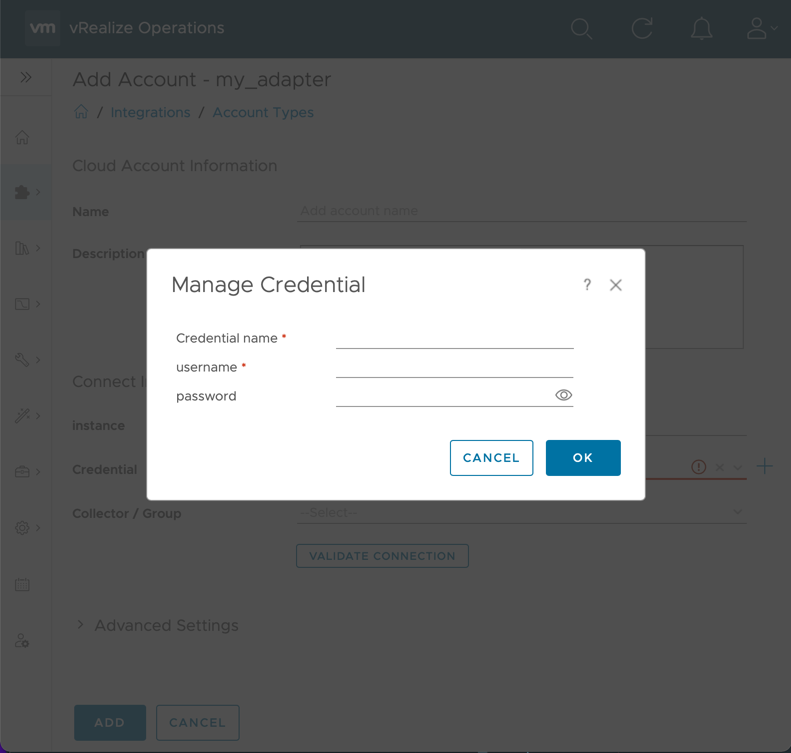

Adding a credential to an adapter instance with the username and password fields as defined above. 'Credential name' is always added (by VMware Aria Operations), and allows for credentials to be reused between adapter instances.

Both describe.xml and AdapterDefinition allow for the use of multiple credential types.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
 def get_adapter_definition() -> AdapterDefinition:
     definition = AdapterDefinition("MyAdapter", "My Adapter")

     # Basic Auth
     basic_auth_credential = definition.define_credential_type("basic_auth_credential", "Basic Auth")
     basic_auth_credential.define_string_parameter("user_name", "User Name")
     basic_auth_credential.define_password_parameter("user_password", "Password", required=False)

     # Token
     token_credential = definition.define_credential_type("token_credential", "Token")
     token_credential.define_password_parameter("token", "Token")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="MyAdapter" nameKey="1" version="1">
  <CredentialKinds>
      <CredentialKind key="basic_auth_credential" nameKey="2" >
        <CredentialField required="true" dispOrder="0" enum="false" key="user_name" nameKey="3" password="false" type="string"/>
        <CredentialField required="false" dispOrder="1" enum="false" key="user_password" nameKey="4" password="true" type="string"/>
      </CredentialKind>
      <CredentialKind key="token_credential" nameKey="2" >
          <CredentialField required="true" dispOrder="1" enum="false" key="token" nameKey="4" password="true" type="string"/>
      </CredentialKind>
  </CredentialKinds>
  <ResourceKinds>
      <ResourceKind key="MyAdapter_adapter_instance" nameKey="2" type="7" credentialKind="basic_auth_credential,token_credential"/>
  </ResourceKinds>
</AdapterKind>
Note

In the describe.xml credential kind keys are separated by a comma.

Once the credential is defined in the object model, it can be used in the adapter code.

Note

If there are any existing connections used by the mp-test tool before the credential was created or updated, these will need to be deleted or updated.

Once an adapter instance is defined, any credential defined in the object model will be prompted to the user when creating an account in VMware Aria Operations on the Data Sources → Integrations page. After the account has been created, credential fields will be available AdapterInstance object passed to the collect, test, and get_endpoints methods.(See Creating an Adapter Instance.)

Using the Python Adapter Library, the credentials are available in the AdapterInstance object passed to the collect, test, and get_endpoint methods in app/adapter.py(See Creating an Adapter Instance.). If an adapter supports multiple credential types, the AdapterInstance.get_credential_type() function can be used to determine the type of the credential used by the adapter instance.

Creating an Adapter Instance

Using the Python Adapter Library, the canonical method for creating an adapter instance is using the AdapterInstance object. Configuration fields and credentials can be accessed using get_identifier_value and get_credential_value, respectively. These methods return None if the given key does not exist in the adapter instance.

1
2
3
4
5
6
7
8
adapter_instance = AdapterInstance.from_input()

instance = adapter_instance.get_identifier_value("instance")
ssl_mode = adapter_instance.get_identifier_value("ssl_mode")
max_events = adapter_instance.get_identifier_value("max_events")

username = adapter_instance.get_credential_value("username")
password = adapter_instance.get_credential_value("password")

Note

AdapterInstance.from_input() can only be called once per collection, test connection, or getEndpointURL invocation.

For other languages, or using Python without the Python Adapter Library module, JSON representing the adapter instance is sent to a named pipe. The second-to-last argument the adapter is invoked with will always be the filename of the named pipe. The adapter instance JSON is described in the VMware Aria Operations Collector Framework OpenAPI Document.

Adding an Object Type to the Object Model

An object type is a class of objects (resources) that share the same set of metrics, properties, and identifiers. For example an adapter might have a 'Database' object kind, and when an adapter instance is created and connects to an application, several 'database' objects are created representing distinct databases in the application. To create a new object type in the conf/describe.xml file, add a ResourceKind element inside AdapterKind/ResourceKinds. A key attribute is required, and must be unique among other object types within the describe.xml file. To create a new object type using the Python Adapter Library use the AdapterDefinition.define_object_type function of AdapterDefinition object.

1
2
3
4
def get_adapter_definition() -> AdapterDefinition:
    definition = AdapterDefinition("MyAdapter", "My Adapter")

    definition.define_object_type("my_database_resource_kind", "Database")

1
2
3
4
5
6
7
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="MyAdapter" nameKey="1" version="1">
    <!--...-->
  <ResourceKinds>
    <!--...-->
    <ResourceKind key="my_database_resource_kind" nameKey="9"/>
  </ResourceKinds>
</AdapterKind>

In addition, an object type may have identifiers, which can distinguish between objects of the same type. In the database example, we may need to know a port and ip address to uniquely identify each database. If no identifiers are specified, an object's name is used for determining uniqueness. If any identifiers are present (see note), then the name is not used for this purpose.

1
2
3
4
5
6
def get_adapter_definition() -> AdapterDefinition:
    definition = AdapterDefinition("MyAdapter", "My Adapter")

    data_base = definition.define_object_type("my_database_resource_kind", "Database")
    data_base.define_string_identifier("server_ip", "IP")
    data_base.define_string_identifier("server_port", "Port")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="MyAdapter" nameKey="1" version="1">
    <!--...-->
  <ResourceKinds>
    <!--...-->
    <ResourceKind key="my_database_resource_kind" nameKey="9">
        <ResourceIdentifier dispOrder="1" key="server_ip" nameKey="10" required="true" type="string" identType="1"/>
        <ResourceIdentifier dispOrder="2" key="server_port" nameKey="11" required="true" type="integer" identType="1"/>
        <!-- ... -->
    </ResourceKind>
  </ResourceKinds>
</AdapterKind>
Note

'ResourceIdentifier' element can have an identType of 1 or 2. A type of 1 is most common, and means the identifier will be used for determining uniqueness. If the type is 2, the identifier is non-identifying, and will show up in the identifiers of an object but will not cause a new object to be created if it changes. If all identifiers are non-identifying, then the object's name reverts to determining uniqueness of objects. When using Python Adapter Library the define_string_identifier accepts a is_part_of_uniqueness parameter, which is True by default.

Info

For more information about the supported elements and attributes, see the describe.xml documentation. For more information about the Python module visit Python Adapter Library.

Once the object type is defined in the object model, it can be used in the adapter code. See Creating an object.

Creating an Object

Before creating an object, ensure that the object type is present in the object model.

Using the Python Adapter Library, the canonical method for creating a new object is to use the CollectResult object.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
result = CollectResult()
database1 = result.object(adapter_kind="MyAdapter", object_kind="my_database_resource_kind", name="db1",
                          identifiers=[
                              Identifier("server_ip", "10.0.34.1"),
                              Identifier("server_port", 110)
                          ])
# <additional collection code>
# ...

# send database1 (and all other objects in the CollectResult) back to VMware Aria Operations
result.send_result()

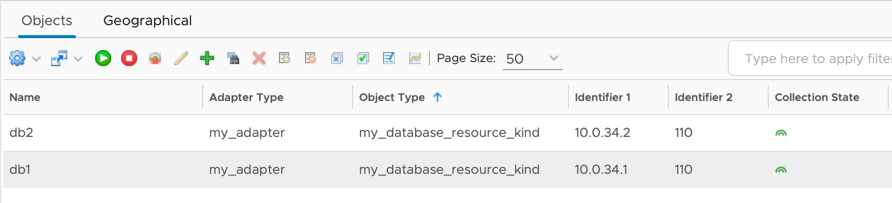

Example of a database object with the above settings

Two objects of type 'my_database_resource_kind'. The creation of the db1 object is shown above. This view is found in Environment → Inventory. By default, the identifiers are not shown. They can be enabled by clicking the menu icon in the lower left (not shown in this screenshot) and selecting the identifier columns. Identifiers are ordered in ascending dispOrder.

For other languages, or using Python without the VMware Aria Operations Integration module, objects must be returned as JSON, described in the VMware Aria Operations Collector Framework OpenAPI Document .

Defining an Attribute in the Object Model

An attribute is a class of metrics or properties similar to how an object type is a class of objects. Attributes can be either a metric or property. * A metric is numeric data that is useful to track over time. Examples: CPU Utilization (%), Used Disk Space (GB) * A property is numeric or string data that rarely changes and only the current (last) value is relevant. Examples: Operating System Name, CPU Count

Note

Properties should not be used for string data that has a large number of possible values. For example, if you want to have a property that shows the last time an operation was run on a server, it is better to convert that to a numeric metric such as hours_since_last_operation, rather than using a string property with a human-readable timestamp, as large numbers of distinct string values can degrade the performance of VMware Aria Operations.

in the conf/describe.xml file, attributes can be grouped together in ResourceGroup elements, which can be nested. ResourceGroups can also be instanced.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
    def get_adapter_definition() -> AdapterDefinition:
        definition = AdapterDefinition("MyAdapter", "My Adapter")

        data_base = definition.define_object_type("my_database_resource_kind", "Database")
        data_base.define_string_identifier("server_ip", "IP")
        data_base.define_string_identifier("server_port", "Port")

        table_space_group = data_base.define_group("tablespace", "Tablespace")
        table_space_group.define_string_property("tablespace_name", "Name")
        table_space_group.define_metric("reads", "Reads")

        data_base.define_metric("session_count", "Sessions")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
<AdapterKind xmlns="http://schemas.vmware.com/vcops/schema" key="MyAdapter" nameKey="1" version="1">
  <!--...-->
  <ResourceKinds>
    <!--...-->
    <ResourceKind key="my_database_resource_kind" nameKey="9">
      <ResourceIdentifier dispOrder="1" key="server_ip" nameKey="10" required="true" type="string" identType="1"/>
      <ResourceIdentifier dispOrder="2" key="server_port" nameKey="11" required="true" type="integer" identType="1"/>
      <ResourceGroup nameKey="4" key="tablespace">
        <ResourceAttribute nameKey="12" dashboardOrder="1" key="tablespace_name" dataType="string" isProperty="true" />
        <ResourceAttribute nameKey="13" dashboardOrder="2" key="reads" dataType="integer" isProperty="false" />
      </ResourceGroup>
      <ResourceAttribute nameKey="14" dashboardOrder="1" key="session_count" dataType="integer" isProperty="false" />
    </ResourceKind>
  </ResourceKinds>
</AdapterKind>
Info

For more information about the supported elements and attributes, see the describe.xml documentation. For more information about the Python module visit Python Adapter Library.

Once an attribute is defined in the object model, it can be used in the adapter code. See Creating a metric or property.

Creating a Metric or Property

Before creating a metric or property, ensure that the attribute describing the data is present in the object model.

Using the Python Adapter Library , metrics and properties can be added using the attribute key and a value. In the case of attributes in groups, the group key(s) and attribute key are separated by a pipe "|" and form the metric or property key.

1
2
3
4
database1 = # Object
database1.with_property("tablespace|tablespace_name", "MyTablespace")
database1.with_metric("tablespace|reads", 104)
database1.with_metric("session_count", 5)

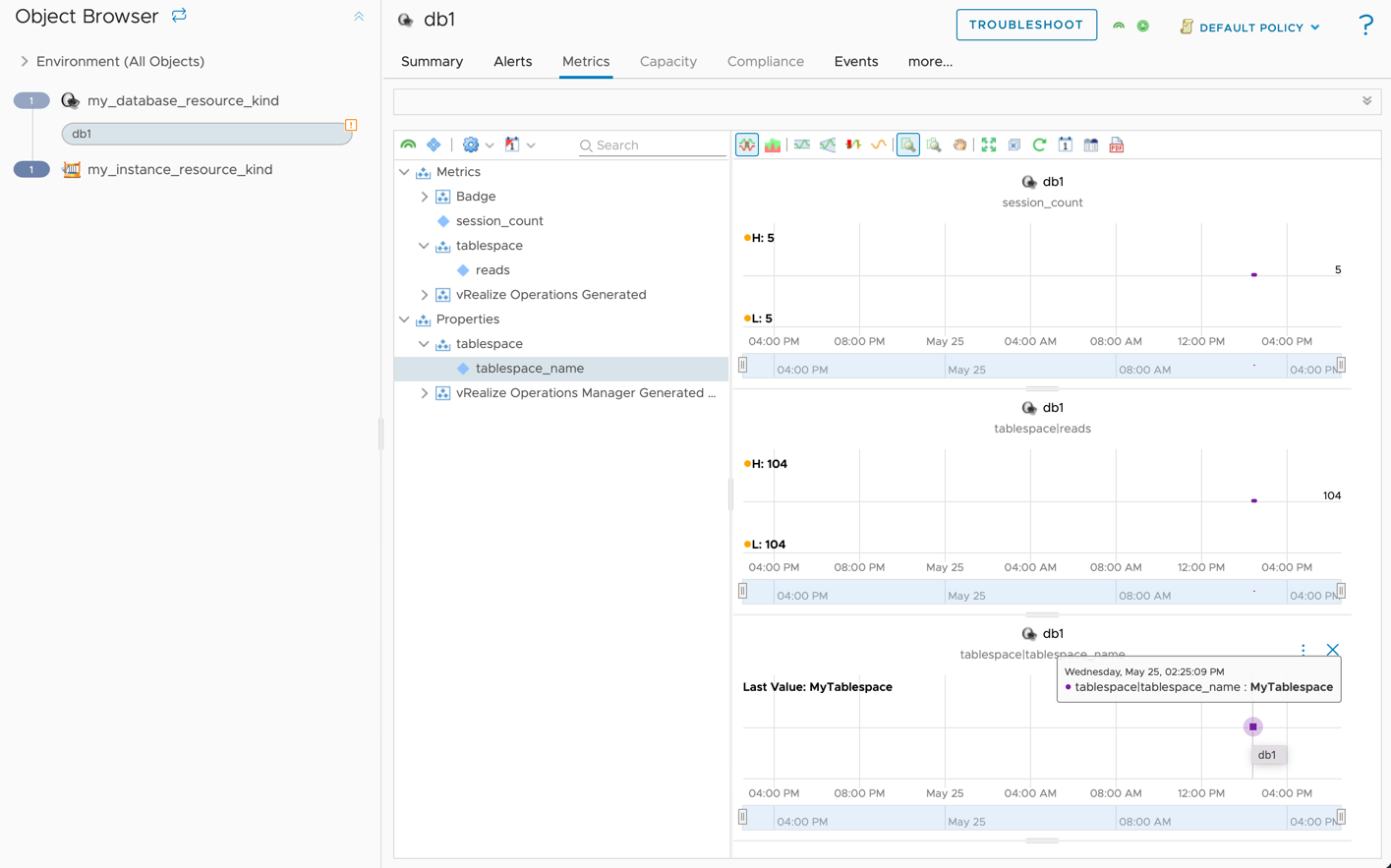

Metrics and properties in a my_database_resource_kind object

Result of the above code. Since the numbers and strings are hard-coded, these values will never change. For a real adapter, the values will be the result of querying the target for up-to-date information. Note that there are a number of automatically generated metrics and properties. The metric groups 'Badge', 'VMware Aria Operations Generated', and 'VMware Aria Operations Manager Generated Properties' (and the metrics and properties inside) are present on every object.

For other languages, or using Python without the VMware Aria Operations Integration module, metrics and properties are returned as JSON inside of objects, described in the VMware Aria Operations Collector Framework OpenAPI Document.

Creating an Event

Events do not need to be declared in the object model file, and can simply be added to an object at runtime.

Using the Python Adapter Library , events are added to resources. The only required parameter is the message, which describes and uniquely identifies the event.

1
2
3
database1 = # Object
database1.with_event(
    message="Database read latency is above threshold", criticality=Criticality.IMMEDIATE)

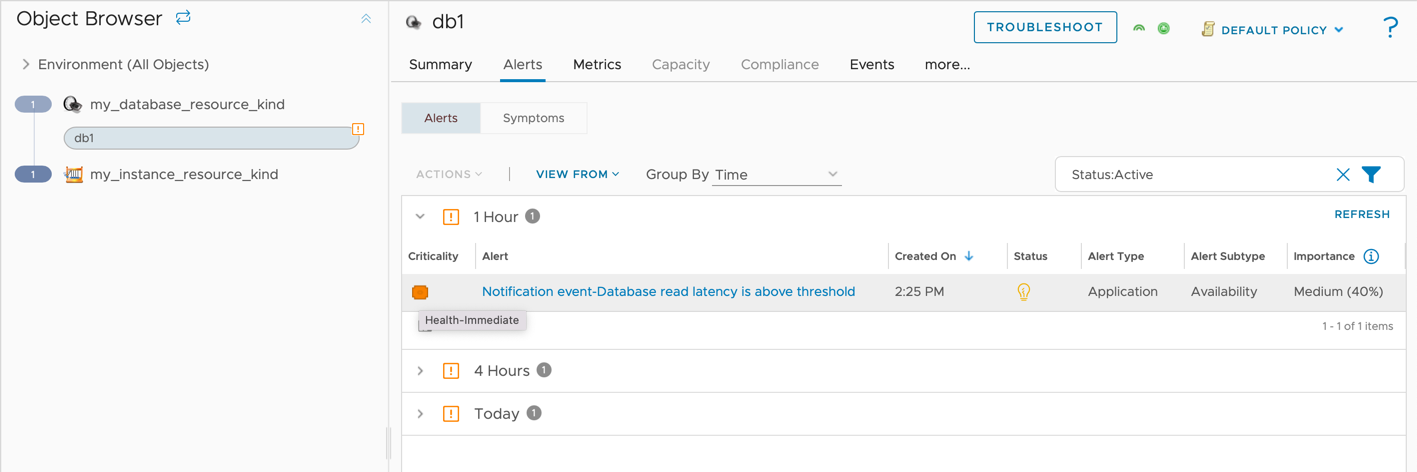

Result of the above code

Result of the above code. Note that the criticality is affecting the health of the db1 object it is attached to.

For other languages, or using Python without the Python Adapter Library module, events are returned as JSON inside of objects, described in the VMware Aria Operations Collector Framework OpenAPI Document .

Creating a Relationship

Relationships do not need to be declared in the object model file, and can simply be added between objects at runtime. Relationships are always between a parent and child, and if object1 is a parent of object2, that implies object2 is a child of object1.

Using the Python Adapter Library , relationships are added to resources.

1
2
3
4
5
6
instance = # Object
database1 = # Object
database2 = # Object
instance.add_child(database1)
database2.add_parent(instance)
# database2 and database1 both have the same relationship with respect to the instance object after these calls

Important: Relationships must not have cycles. A cycle happens when an object's relationships are structured in such a way that it is its own descendant (or ancestor). For example, object1 parentOf object2, object2 parentOf object3, object3 parentOf object1 creates a cycle. Care should be taken to avoid these, as they can adversely affect VMware Aria Operations' analytics calculations.

Result of the above code

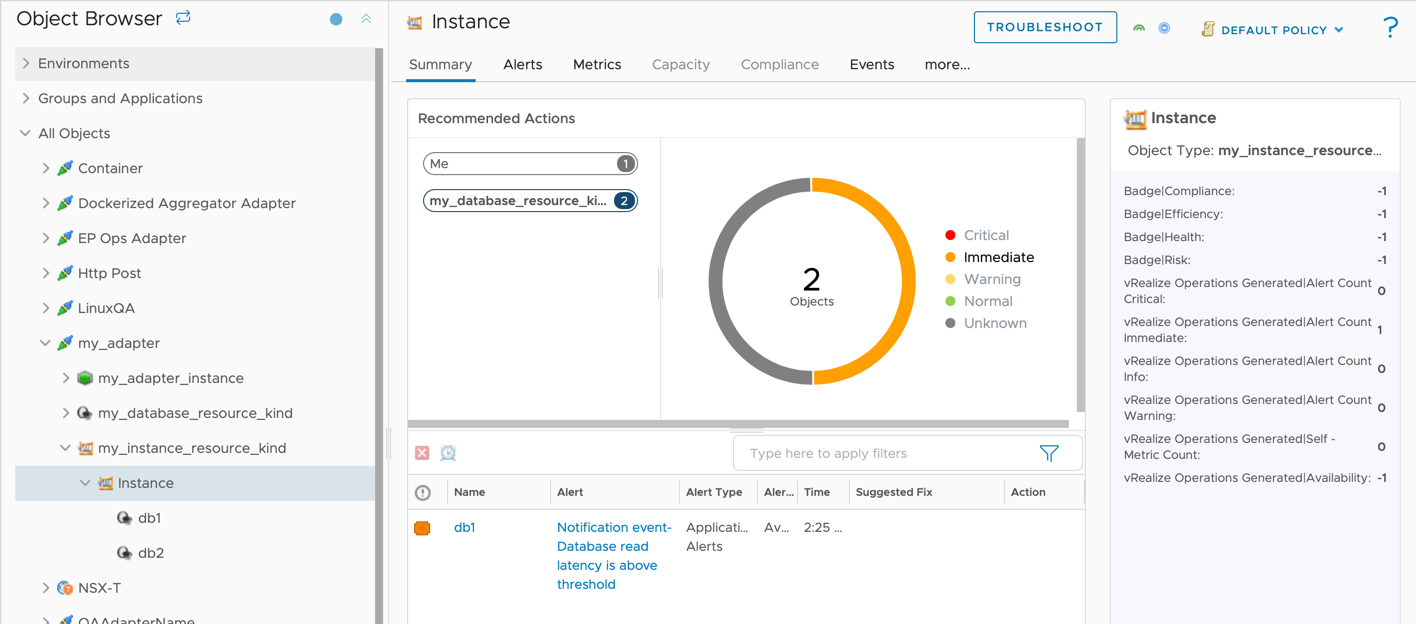

Result of the above code. The db1 and db2 objects are both children of the 'instance' object. The health of a child object can impact the health of a parent object.

For other languages, or using Python without the VMware Aria Operations Integration module, relationships are returned as JSON inside a collect result object, described in the VMware Aria Operations Collector Framework OpenAPI Document .
