Runtime Defined Entity Lifecycle Hooks

Overview

The processing of the events in the Runtime Defined Entities lifecycle can be automated by binding behaviors to the lifecycle events.

For example, an extension can define a type that has a property in its schema that describes the desired state of a system. Users can create new instances of that type and fill in the property with their desired system state.

The extension can bind behaviors to the OnCreate and OnUpdate hooks of that type to observe the modifications in the desired state requested by the users. The hook behaviors will be invoked upon such modifications and can initiate or perform processes to satisfy the modified desired state.

Example

Hooks are configured at the defined entity type level as part of the type definition. The hook behaviors must be defined in one of the interfaces that the defined entity type implements.

The following REST API call creates an RDE Type that implements the interface urn:vcloud:interface:clusterVendorA:containerCluster:1.0.0:

POST
https://:/cloudapi/1.0.0/entityTypes

{
    "name": "Basic Container Cluster",
    "vendor": "clusterVendorA",
    "nss": "basicContainerCluster",
    "version": "1.0.0",
    "interfaces": ["urn:vcloud:interface:clusterVendorA:containerCluster:1.0.0"],
    ...
    "hooks": {
        "PreCreate": "urn:vcloud:behavior-interface:validateCreate:clusterVendorA:containerCluster:1.0.0",
        "PostCreate": "urn:vcloud:behavior-interface:autoResolve:clusterVendorA:containerCluster:1.0.0",
        "PostUpdate": "urn:vcloud:behavior-interface:processUpdate:clusterVendorA:containerCluster:1.0.0",
        "PreDelete" : "urn:vcloud:behavior-interface:validateDelete:clusterVendorA:containerCluster:1.0.0",
    }
}

The type definition binds four of the interface behaviors to different lifecycle events of the entities of the type:

• the validateCreate behavior will be invoked before the entity is saved in the DB and will validate the entity contents to check whether they comply with some business-related prerequisite
• the autoResolve behavior will be invoked after the initial entity creation
• the processUpdate behavior will be invoked every time the entity is modified
• the validateDelete behavior will be invoked to check whether the entity can be deleted or not

Available RDE Lifecycle Hooks

Behaviors can be configured to execute at the different lifecycle stages of a defined entity:

• Pre Create
• Post Create
• Post Update
• Pre Delete
• Post Delete

Hook behaviors’ executions are triggered as part of each API call on the entity leading any of the aforementioned defined entity lifecycle stages (e.g. API call for creating a defined entity).

A failure in the execution of some of the hooks may cancel the requested entity operation if they fail.

Behavior executions as lifecycle hooks are not subject to any access control rules.

PreCreate Hook Behavior

The PreCreate hook is invoked automatically on a defined entity instance immediately upon its creation, before it enters the PRE_CREATED state.

Purpose: Validate and optionally modify entity content before creation proceeds

State Flow:

• Entity created → Enters PRE_VALIDATED state
• PreCreate hook executes
• On success → Entity moves to PRE_CREATED state
• On failure → Entity is deleted

Hook Response:

• Empty string (“”): No modification, use original entity content
• JSON string: Replace entity content with the returned JSON
• Error/Other: Entity creation fails, entity is deleted

API Trigger:

POST /cloudapi/1.0.0/entityTypes/<entity-type-id>

Response:

202 Accepted
Location: https://<vcfa-host>/api/task/<task-id>

The RDE create operation is a long-running process in VMware Cloud Foundation Automation which is traced by a task. If the RDE creation triggers a pre-create hook the task returned in the Location header of the create RDE API call response holds a reference to the PreCreate hook invocation task.

Use Cases:

• Validate entity content against business rules before creation
• Enrich entity content with computed/default values
• Enforce singleton patterns (allow only one entity of a type)
• Pre-populate fields based on external systems

Post Create Behavior Hook

The post-create hook behavior is invoked automatically on a defined entity instance after its creation. It can be used to create an external resource which the RDE represents, or to make some additional changes to the RDE’s entity contents depending on the specific business logic.

To trigger a post-create hook behavior, you need to create an RDE instance via the API:

POST /cloudapi/1.0.0/entityTypes/<entity-type-id>

Response:

202 Accepted

Headers:
...
Location: https://<vcfa-host>/api/task/<task-id>
...

The RDE create operation is a long-running process in VMware Cloud Foundation Automation which is traced by a task. If the RDE creation triggers a post-create hook the task returned in the Location header of the create RDE API call response holds a reference to the PostCreate hook execution task.

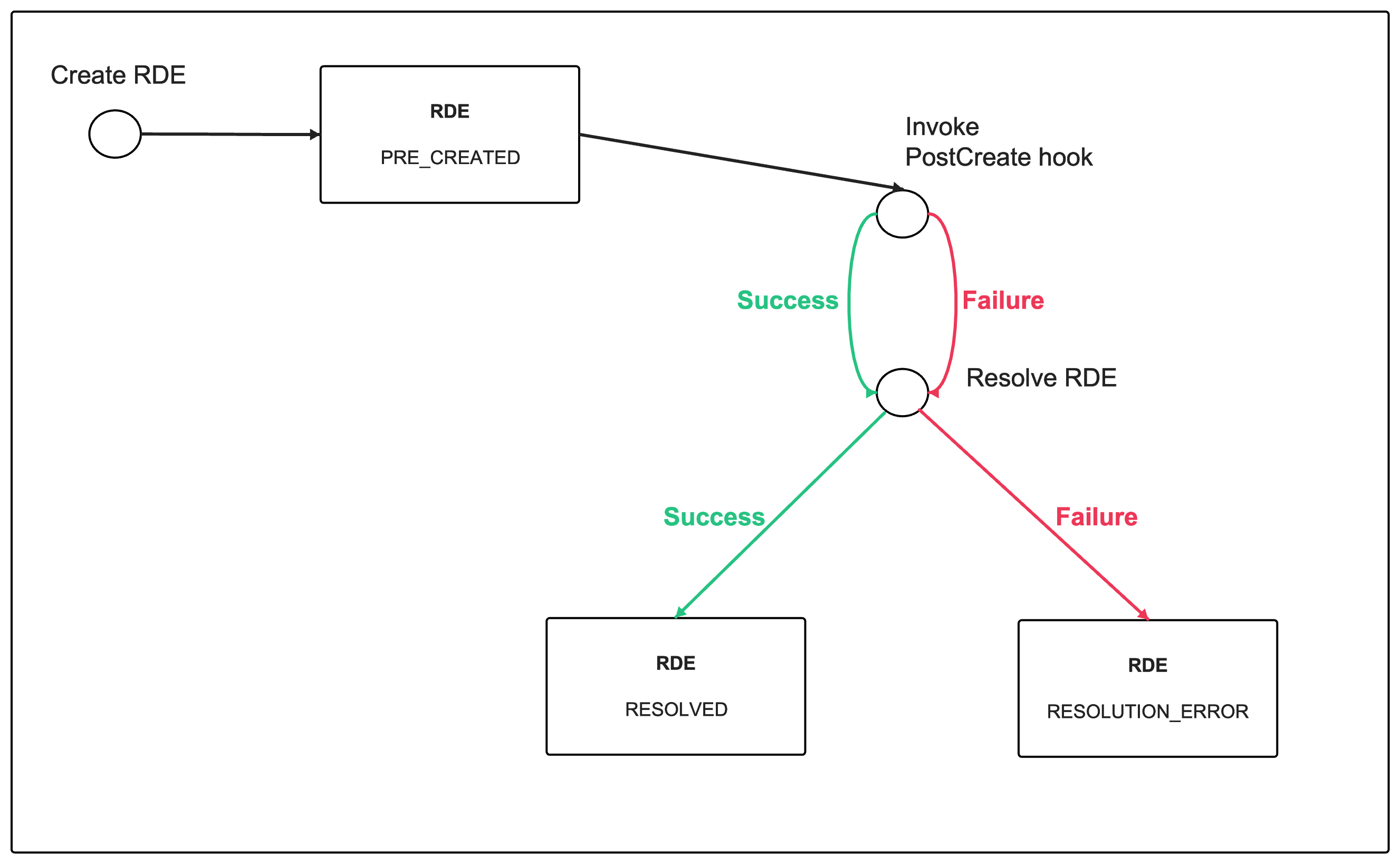

If the post-create behavior execution completes successfully, then the resolve operation is automatically invoked on the defined entity.

If the execution fails, then the entity state is switched to the RESOLUTION_ERROR state.

Post Update Behavior Hook

The post-update hook behavior is invoked automatically after a defined entity instance update. This hook behavior can be used to update the external resource that the RDE represents.

The post-update hook behavior execution does not affect the entity state of the RDE instance in any way.

To trigger a post-update hook behavior, you need to update an RDE instance via the API:

PUT /cloudapi/1.0.0/entities/<entity-id>

Response:

200 OK

Headers:
...
X-VMWARE-VCLOUD-TASK-LOCATION: https://<vcfa-host>/api/task/<task-id>
...

When a defined entity with a post-update hook is updated, the behavior invocation task is returned in a X-VMWARE-VCLOUD-TASK-LOCATION header in the response of the update RDE API call.

Pre Delete & Post Delete Behavior Hooks (Multi-stage RDE Deletion)

The pre-delete and post-delete hook behaviors are hooked to the RDE deletion operation. A multi-stage entity deletion process can be achieved using these hooks.

Pre Delete Hook Behavior

The pre-delete hook is intended to be used as a pre-check for whether an entity can be deleted depending on the extension logic. A failure of the pre-delete hook will abort the entity deletion leaving the entity unchanged.

The pre-delete hook behavior is the first operation to be executed when an entity is requested to be marked for deletion or requested to be deleted.

An entity is requested to be marked for deletion by moving the entity to the IN_DELETION state (more details).

An entity is requested to be deleted by executing a DELETE entity API call:

DELETE /cloudapi/1.0.0/entities/<entity-id>

If the pre-delete hook execution is successful, the requested entity operation is executed (moving entity to IN_DELETION or deleting entity). However, if the hook execution fails, then the entity deletion is “canceled” - the entity remains unchanged.

If an entity is in an IN_DELETION entity state before a pre-delete hook execution, the hook is not executed. VMware Cloud Foundation Automation proceeds as if the pre-delete hook execution is successful (we assume entity can be deleted).

Post Delete Hook Behavior

The intended use of the post-delete hook is to do any additional clean-up related to the entity deletion - e.g clean-up any external resources which this entity represents. A failure of the post-delete hook will abort the entity deletion leaving the entity as marked for deletion (in IN_DELETION state).

The post-delete hook behavior is invoked immediately before the entity is deleted from the DB (after pre-delete hook execution if there is one). If the hook execution is successful, the entity is permanently deleted. If the hook execution fails, the entity deletion fails and entity remains in IN_DELETION state.

Multi-stage RDE Deletion

The multi-stage RDE deletion allows RDE instances to be deleted over several stages and the deletion process can be stopped at any of these stages. This provides an opportunity for the solution backend to release and cleanup the resources that an RDE instance represents before the instance is permanently deleted from VMware Cloud Foundation Automation.

The multi-stage deletion can be set-up to be asynchronous or synchronous depending on they way the solution backend will get notified of an entity’s deletion starting.

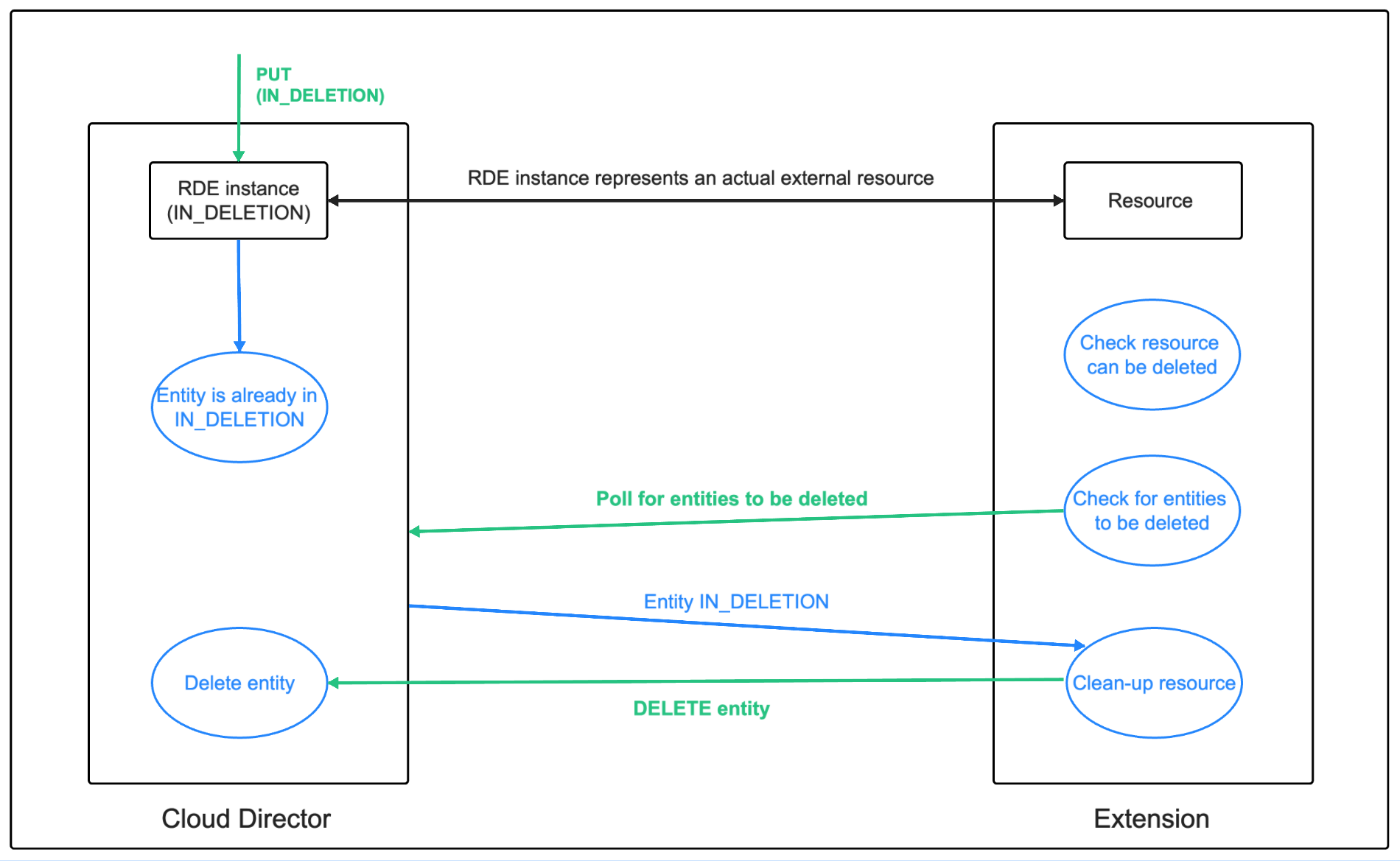

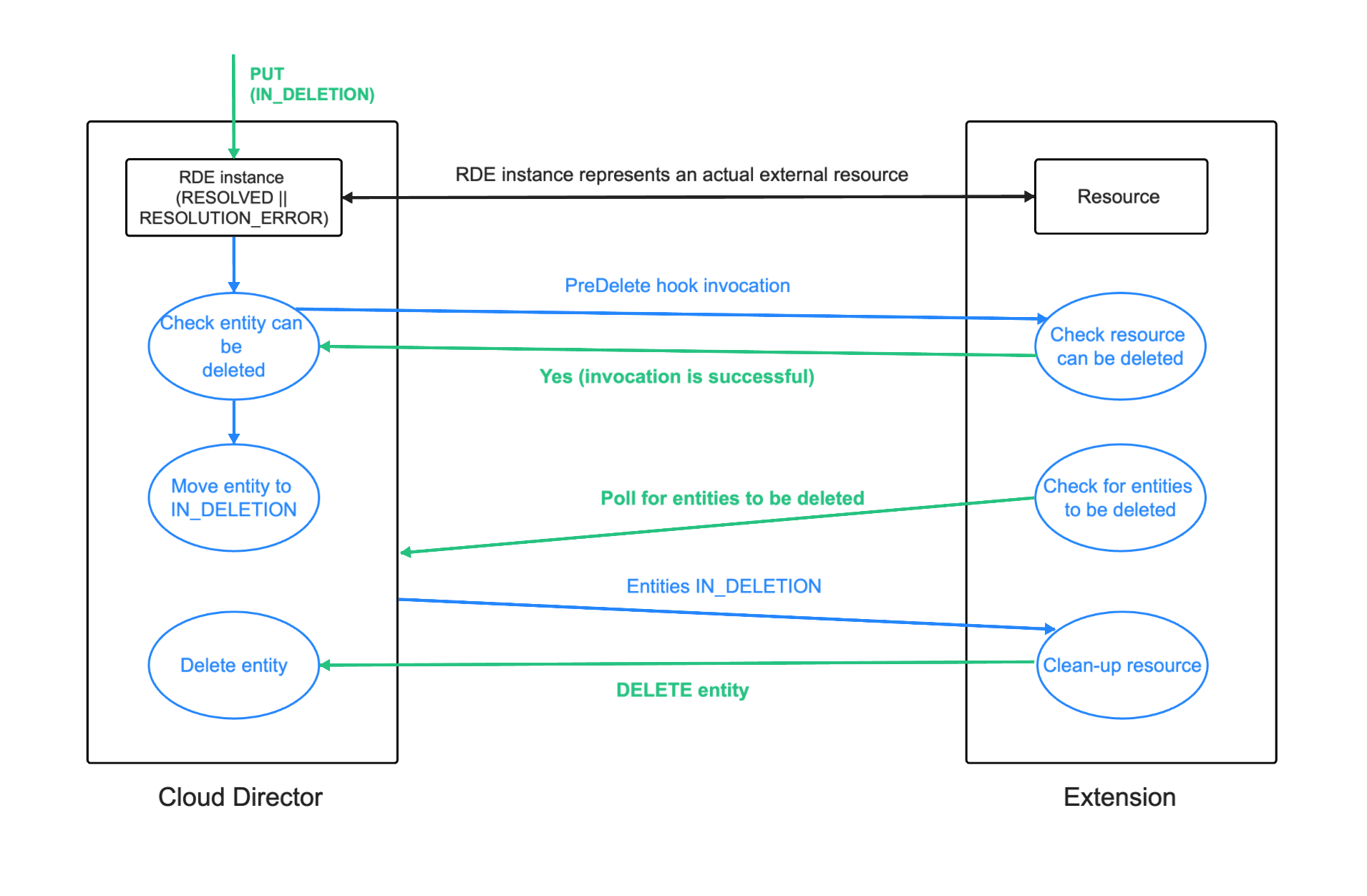

Asynchronous multi-stage deletion

In the async scenario, the solution backend is expected to poll the VMware Cloud Foundation Automation API for entities which are marked for deletion.

To put it simply, the async multi-stage deletion involves the following steps:

1. Marking entities for deletion by moving them to IN_DELETION state (more info here).
2. The solution backend polls for entities in IN_DELETION state and starts the deletion process for them (more info here).
3. Once resource clean-up is completed, solution backend can issue a DELETE API call for all entities, which are ready to be permanently deleted.

Synchronous multi-stage deletion

In the synchronous scenario, the solution backend is expected to configure a post-delete hook on the RDE Type to handle cleaning-up any additional resources.

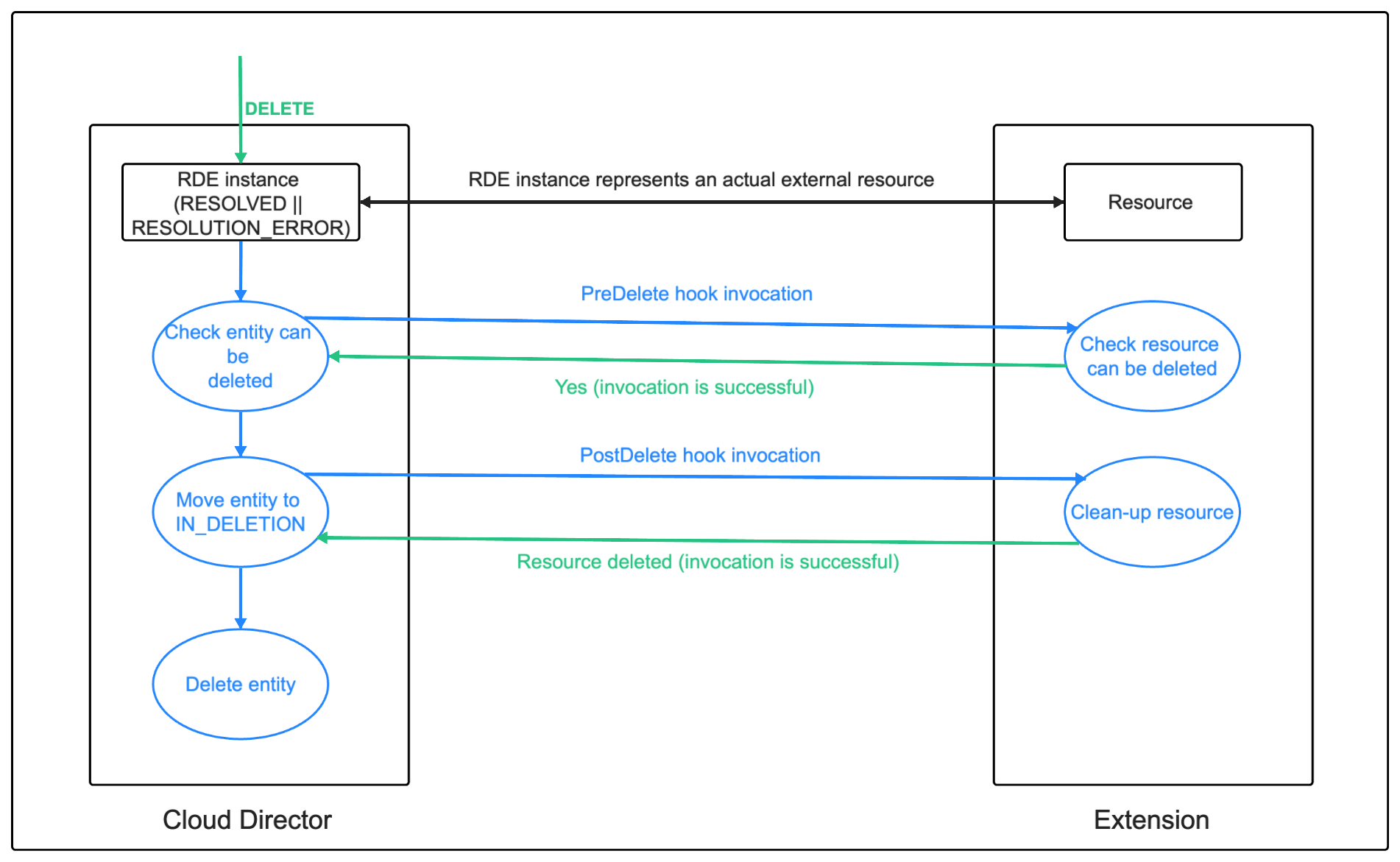

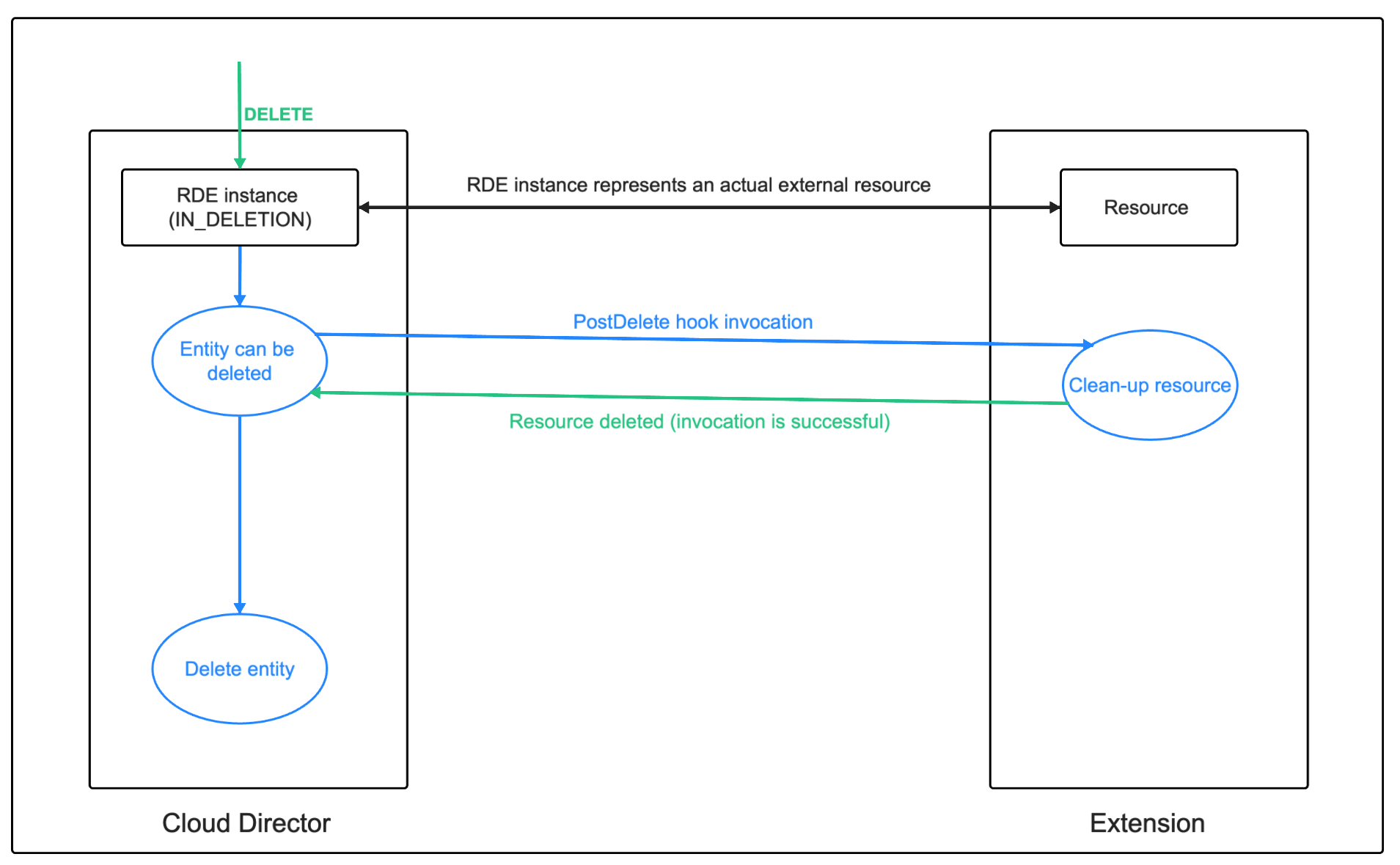

The following diagrams shows the synchronous multi-stage deletion flow:

The delete operation is kick-started with the DELETE RDE API call:

DELETE /cloudapi/1.0.0/entities/<entity-id>

Response:

202 Accepted

Headers:
Location: https://<vcfa-host>/api/task/<task-id>

The deleteDefinedEntity task can be found in the Location header of the response of the DELETE RDE API call. The operation field of this task holds references to the pre-delete and post-delete hook executions.

{
    ...
    "id": "urn:vcloud:task:bf1ba5ab-9a26-4061-ab5a-1fa7a4583100",
    "operationKey": null,
    "description": null,
    "tasks": null,
    "name": "task",
    "owner": {
        "otherAttributes": {},
        "href": "",
        "id": "urn:vcloud:entity:vmware:testType:0f9bf154-63c3-43f1-a190-aa1173152412",
        "type": "application/json",
        "name": "entity",
        "vCloudExtension": []
    },
    ...
    "result": null,
    "status": "success",
    "operation": "PreDelete hook: urn:vcloud:task:dc3b9f64-93a7-49a5-b3d3-2ea9666cf1f9. PostDelete hook: urn:vcloud:task:7dd7dc68-a84a-4130-a653-285877502ce8.",
    "operationName": "deleteDefinedEntity",
    ...
}

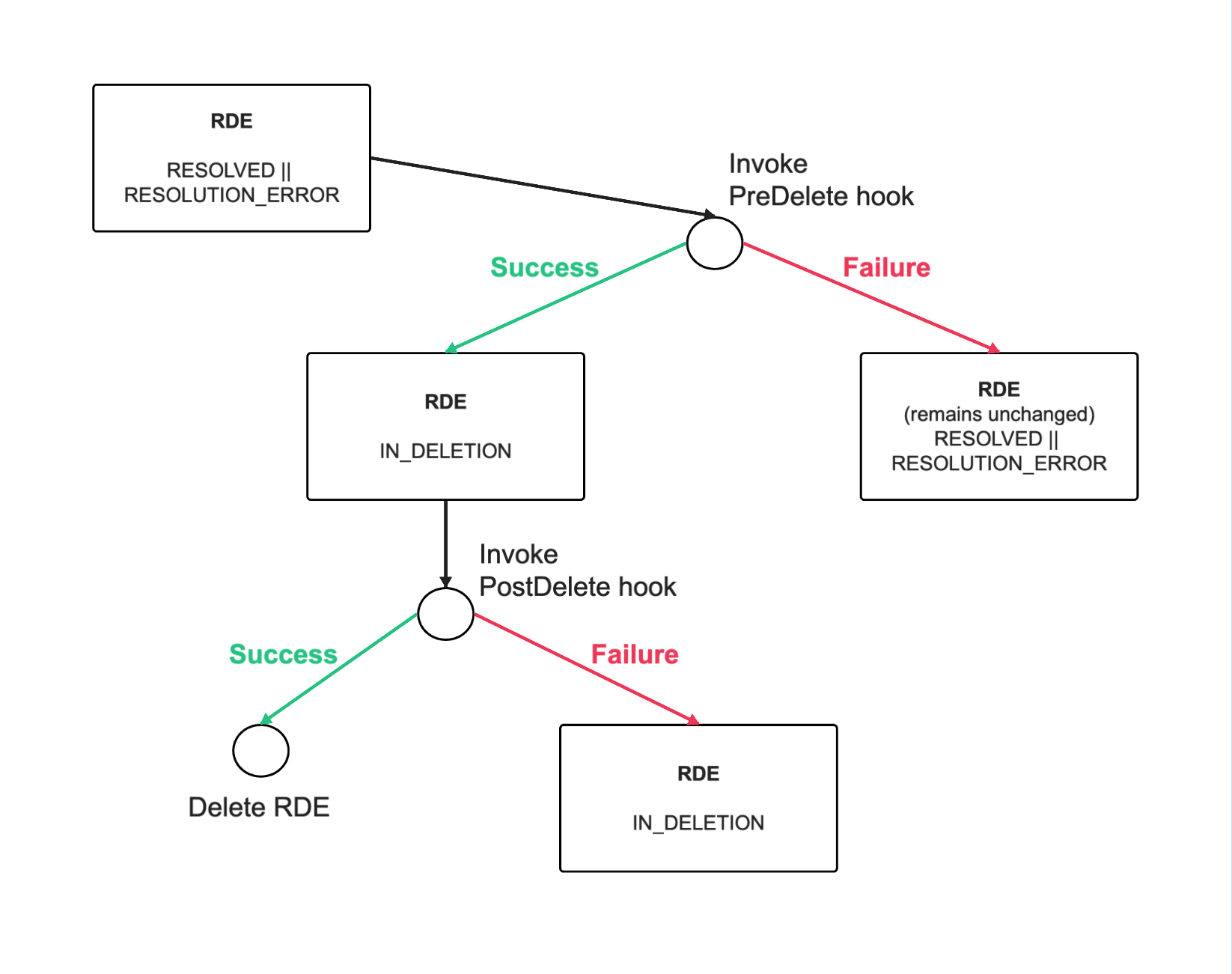

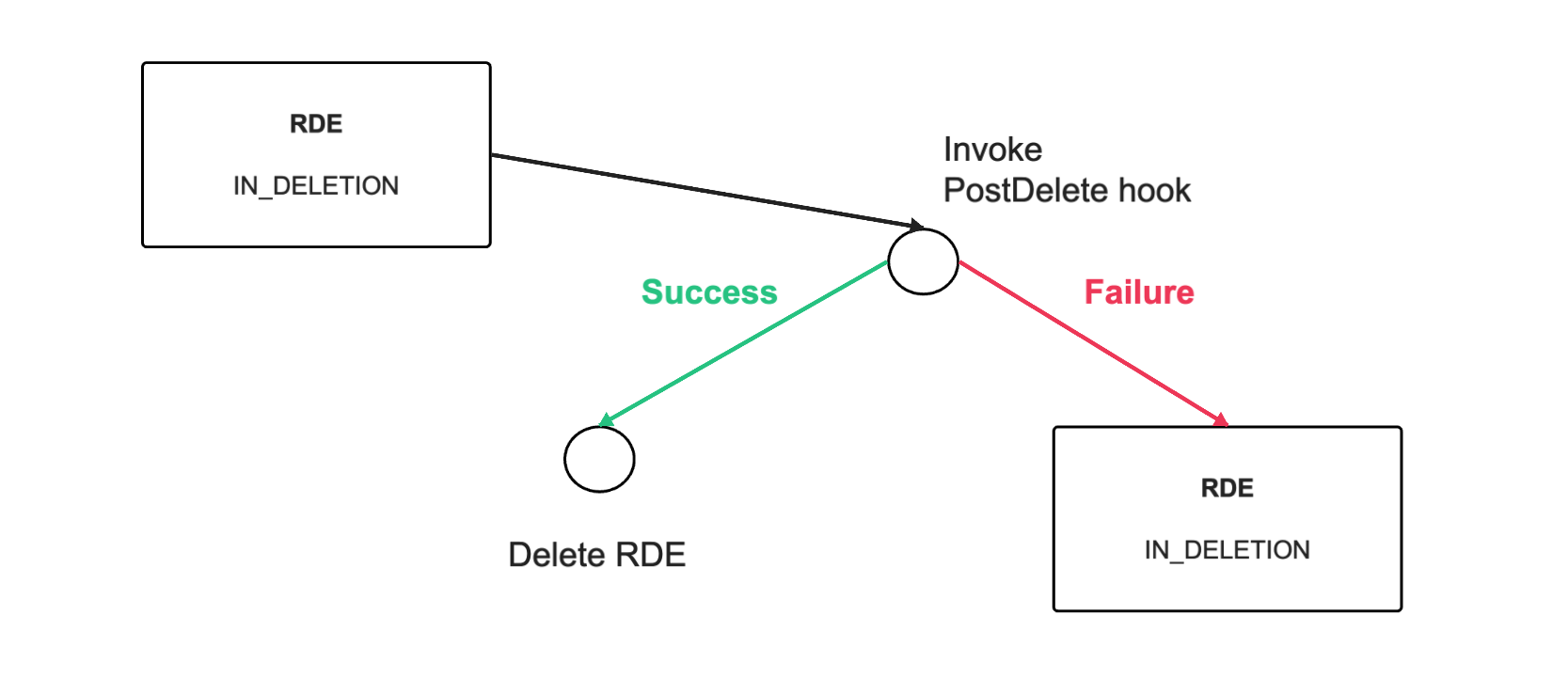

The following diagrams show what happens with the RDE’s state depending on the success or failure of the hook executions:

If the post-delete hook fails, the entity will remain in IN_DELETION state and will not be deleted.

Moving Entities to IN_DELETION State

A RDE instance can be moved to IN_DELETION state by issuing a PUT API call on the defined entity setting the entityState field to IN_DELETION:

PUT /cloudapi/1.0.0/entities/<entity_id>

{
    "name": "test",
    "externalId": null,
    "entity": {
        "entity": {
            "vm": {
                "name": false
            }
        }
    },
    "entityState": "IN_DELETION",
    ...
}

Response:

200 OK

If there is a pre-delete hook defined in the RDE type of the entity, the hook will be executed prior to moving the entity into IN_DELETION state. If the hook execution succeeds, the entity is moved into IN_DELETION state. Otherwise, the entity remains unchanged.

In the case of pre-delete hook existing, the PUT call will respond with 202 Accepted and a task will be returned in the Location header of the response: Response:

202 ACCEPTED

Headers:
Location: https://localhost:8443/api/task/06533e8a-e3a0-4502-9cb7-5c758e6da815

And the Update RDE task holds a reference to the actual pre-delete hook invocation task:

 {
    ...
    "href": "https://localhost:8443/api/task/06533e8a-e3a0-4502-9cb7-5c758e6da815",
    "type": "application/vnd.vmware.vcloud.task+json",
    "id": "urn:vcloud:task:06533e8a-e3a0-4502-9cb7-5c758e6da815",
    "operationKey": null,
    "description": null,
    "tasks": null,
    "name": "task",
    "owner": {
        "otherAttributes": {},
        "href": "",
        "id": "urn:vcloud:entity:vmware:testType1:39f88374-6e03-4d39-8c81-f9e92a3020cf",
        "type": "application/json",
        "name": "entity",
        "vCloudExtension": []
    },
  ...
    "result": null,
    "status": "success",
    "operation": "PreDelete hook: urn:vcloud:task:7d0f585f-75ea-4af1-a94c-5a0727124d8f.", // pre-delete hook task
    "operationName": "updateDefinedEntity",
    ...
}

Polling for Entities to IN_DELETION State

To get all entities of a RDE Type in state IN_DELETION, you GET all entities of the RDE Type filtered by entityState:

GET /cloudapi/1.0.0/entities/types/vmware/testType1/1.0.0?filter=(entityState==IN_DELETION)

Hook Execution Control

The creators of an RDE Type use the hooks to specify the behaviors that an entity of the RDE Type must follow. Thus the hook execution cannot be turned off by users of the type.

Users who have Full Control access to the type definition, however, can explicitly turn off the hook executions for an operation by providing the invokeHooks=false query parameter in the request. This applies to all hook types including PreCreate, PostCreate, PreDelete, and PostDelete. For example:

POST https://:/cloudapi/1.0.0/entityTypes/urn:vcloud:type:clusterVendorA:basicContainerCluster:1.0.0?invokeHooks=false

The invokeHooks query parameter is accepted only if the user making the request has a Full Control ACL for the specific type. The creator of the RDE type is granted such ACL by default. An ACL can be granted to other users as well via the Type Access Controls API.
