Workflows

Overview

You can use the method decorators to define various canvas items that will be included in the Workflow.

Workflow Decorator

@Workflow({
  id: "",
  name: "Sample Workflow",
  path: "VMware/PSCoE",
  version: "1.0.0",
  description: "Sample workflow description",
  attributes: {},
  input: {
    foo: { type: "string" },
    bar: { type: "string" },
  },
  output: {
    result: { type: "Any" },
  },
  presentation: "",
  restartMode: 1,
  resumeFromFailedMode: 0
})

Supported Parameters

• id - workflow id.
• name - workflow name.
• path - workflow location path.
• version - workflow version.
• description - workflow description.
• attributes - list of workflow attributes. See details below.
• input - list of workflow input parameters. See details below.
• output - list of workflow output parameters. See details below.
• presentation - custom presentation of the workflow. If omitted, presentation is build based on parameters definitions.
• restartMode - server restart behaviour (0 - do not resume workflow run, 1 - resume workflow run (default)).
• resumeFromFailedMode - resume workflow from failed behavior (0 - system default, 1 - enabled, 2 - disabled).

The following parameters are supported for each element of attributes, input, and output:

• type - parameter type.
• title - parameter name.
• description - parameter description.
• value or defaultValue - parameter value (attributes only).
• bind - parameter bind to configuration flag (attributes only). Configuration reference is stored in value or defaultValue parameter.
• parameters that apply to presentation, ignored when custom presentation is used:
  • required - if parameter to be marked mandatory.
  • multiLine - if parameter to be marked as multiline.
  • hidden - if parameter to be hidden.
  • maxStringLength - parameter max string length.
  • minStringLength - parameter min string length.
  • numberFormat - parameter number format.
  • availableValues - list of parameter available values.

Argument Decorators

• @In - Used to bind an input to a function.
• @Out - Used to bind an output to a function.
• @Err - Used to bind an error to a function.

Available Method Decorators

@DefaultErrorHandler

This decorator is used to specify a default error handler. It can be bound either to a workflow item component or workflow end.

Supported Parameters

• target - target item to be attached to the default error handler, could be one of workflow item or workflow end.
• exceptionVariable - Exception variable that will hold the exception data when triggered.
• exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

In order to bind inputs and outputs, you do it with the @In and @Out decorators. This is the same way we do it for other items.

Example

import {
  Workflow,
  RootItem,
  In,
  Out,
  Err,
  Item,
  DefaultErrorHandler,
  WorkflowEndItem,
} from "vrotsc-annotations";

@Workflow({
  name: "Default Error Handler Workflow",
  path: "VMware/PSCoE",
  description:
    "Default error handler workflow with error handler redirecting to a workflow item",
  attributes: {
    errorMessage: {
      type: "string",
    },
  },
})
export class DefaultErrorHandlerWorkflow {
  @RootItem({ target: "workflowEnd" })
  public initiateWorkflow() {
    System.log("Initiating workflow execution");
  }

  @Item({
    target: "end",
  })
  public goToEnd() {
    // NOOP
  }

  @Item({
    target: "workflowEnd",
  })
  public processError(@In errorMessage: string) {
    System.log(
      `Processing error using custom task with message '${errorMessage}'`
    );
  }

  @DefaultErrorHandler({
    target: "processError",
    exceptionBinding: "errorMessage",
  })
  public defaultErrorHandler(@Out @Err errorMessage: string) {
    // NOOP
  }

  @WorkflowEndItem({
    endMode: 0,
  })
  public workflowEnd(@Out @Err errorMessage: string) {
    System.log(`Terminating workflow with error ${errorMessage}`);
  }
}

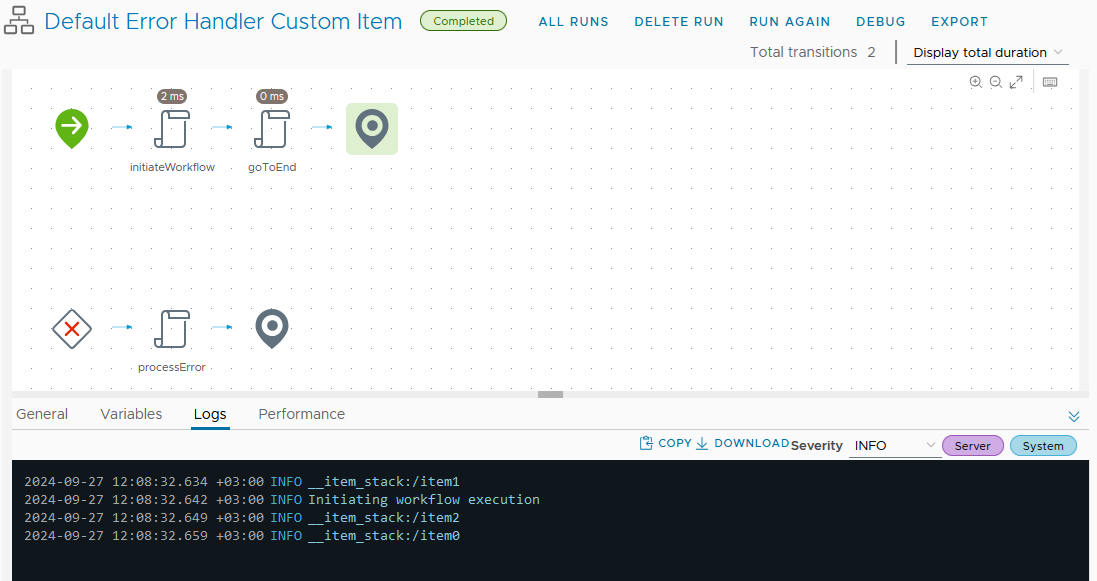

The example above would generate the following workflow.

@WorkflowEndItem

The decorator is used to specify a custom workflow end item.

Supported Parameters

• endMode - End mode of the component, could be one of 0 or 1, where 0 is exit success and 1 is error.
• exceptionVariable - Exception variable that will hold the exception data when triggered.
• businessStatus - Value of the business status in the end component.

@Item

This decorator is used to specify a scriptable task.

Supported Parameters

• target - The name of the next in line item. If this is set to end, it will point to the end of the workflow. If this is set to null, it will point to the next item or if none, the end of the wf. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.
• exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

@WaitingTimerItem

This decorator is used to specify a waiting timer.

Supported Parameters

• target - The name of the next in line item. Same as @Item. This decorator expects an @In parameter with the name of the waiting timer. If one isn't added, the workflow will not work.
• exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

Example

import { Workflow, In, WaitingTimerItem } from "vrotsc-annotations";

@Workflow({
  name: "Waiting Timer Workflow",
  path: "VMware/PSCoE",
  description: "Waiting timer will point with target to shouldGoHere",
  attributes: {
    waitingTimer: {
      type: "Date",
    },
  },
})
export class WaitingTimerWorkflow {
  @WaitingTimerItem({
    target: "shouldGoHere",
  })
  public waitForEvent(@In date: Date) {
    // NOOP
  }

  public shouldGoHere() {
    // NOOP
  }
}

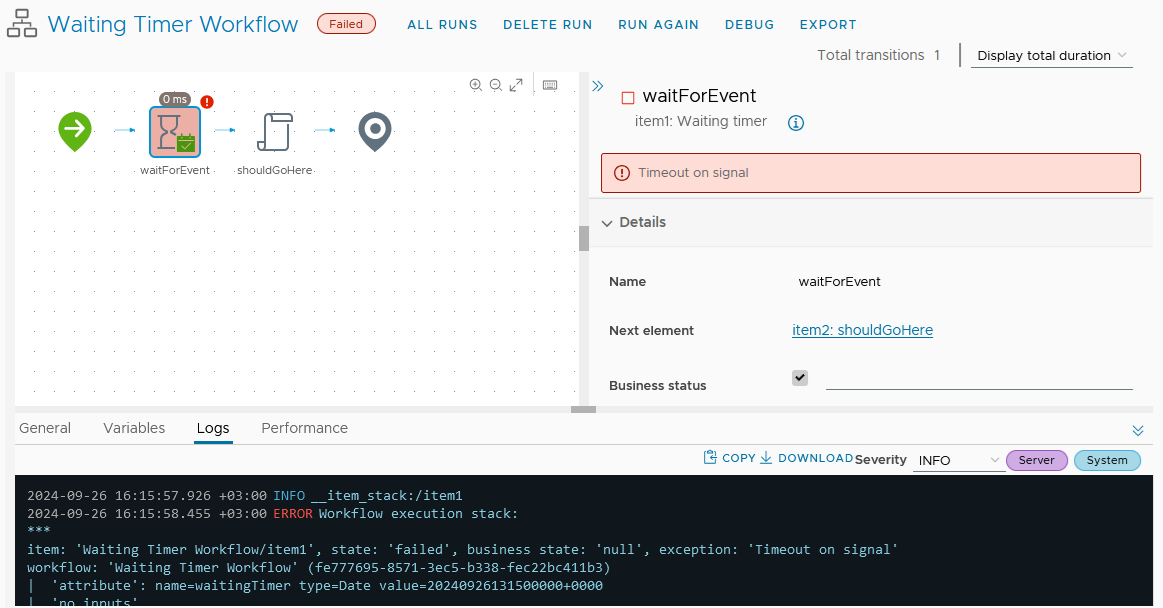

The example above would generate the following workflow.

@DecisionItem

This decorator is used to specify a decision item.

Supported Parameters

• target - The name of the next in line item. Same as @Item.
• else - The name of the next in line item if the decision is false. If this is set to end, it will point to the end of the workflow. If this is set to null, it will point to the next item or if none, the end of the wf. If this is set to a string, but it does not exist in the workflow, it will point to the end of the wf.
• exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

Example

import { Workflow, DecisionItem } from "vrotsc-annotations";

@Workflow({
  name: "Decision Item Workflow",
  path: "VMware/PSCoE",
  description:
    "decisionElement is the root, it will point with else to end and target to shouldGoHere. shouldGoHere will point to end too",
  attributes: {
    waitingTimer: {
      type: "Date",
    },
  },
})
export class DecisionItemWorkflow {
  @DecisionItem({
    target: "shouldGoHere",
    else: "end",
  })
  public decisionElement(waitingTimer: Date) {
    return waitingTimer !== null;
  }

  // This will point to end too, but no incoming
  public shouldGoHere() {
    // NOOP
  }
}

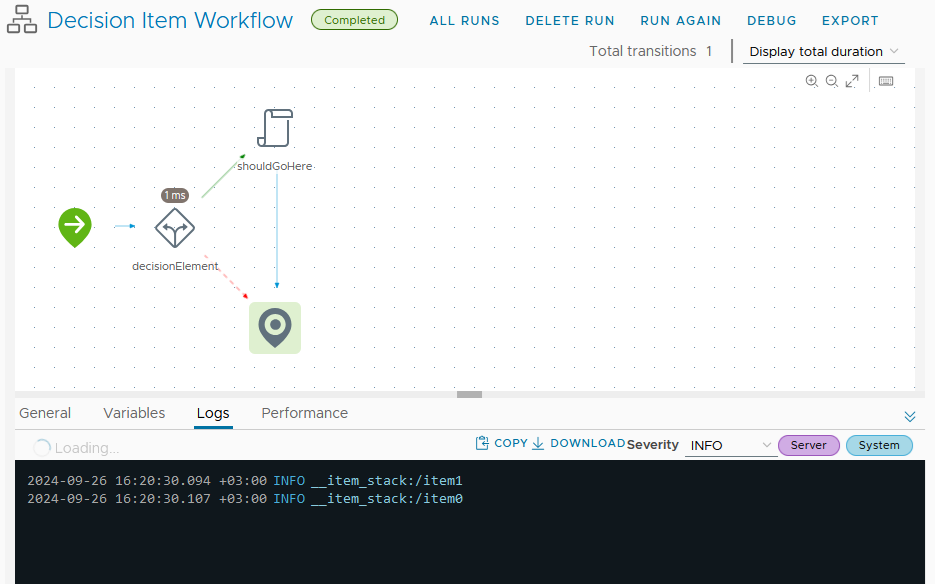

The example above would generate the following workflow.

@SwitchItem

This decorator is used to specify a switch item that routes workflow execution to different paths based on the value of a variable or expression.

Supported Parameters

• cases - An array of case objects that define the routing logic. Each case object contains:
  • condition - The value to match against the switch variable
  • target - The name of the next item to execute when this condition is met
  • variable - The name of the variable to evaluate (optional, can be inferred from method parameters)
  • type - The data type of the variable being switched on (e.g., "number", "string", "boolean")
  • comparator - The comparison operator to use when evaluating cases. Supported values are:
    • "equals" - Equals (default behaviour if not specified)
    • "different" - Not equals
    • "smaller" - Less than
    • "smaller or equals" - Less than or equal
    • "greater" - Greater than
    • "greater or equals" - Greater than or equal
    • "is true" - Boolean true
    • "is false" - Boolean false
    • "contains" - Contains a value
    • "match" - Matches a value
    • "is defined" - Value is defined
• defaultTarget - The name of the next item to execute when none of the cases match. If this is set to end, it will point to the end of the workflow. If this is set to null, it will point to the next item or if none, the end of the workflow.

Example

import { Workflow, SwitchItem } from "vrotsc-annotations";

@Workflow({
  name: "Switch Edge Cases",
  path: "VMware/PSCoE",
  description: "Switch test covering edge cases - various operators, no default target, and complex conditions",
  attributes: {
    errorCode: {
      type: "number"
    },
    priority: {
      type: "number"
    },
    status: {
      type: "string"
    },
  }
})
export class SwitchEdgeCases {

  @SwitchItem({
    cases: [
      { condition: 404, target: "handleNotFound", variable: "errorCode", type: "number", comparator: "equals" },
      { condition: 500, target: "handleServerError", variable: "errorCode", type: "number", comparator: "different" }
    ],
    target: "switchPriority"
  })
  public switchErrorCodes(errorCode: number) {
    // Error code switch without default using various equality operators
    System.log("Processing error code: " + errorCode);
  }

  @SwitchItem({
    cases: [
      { condition: 1, target: "lowPriority", variable: "priority", type: "number", comparator: "smaller" },
      { condition: 5, target: "mediumPriority", variable: "priority", type: "number", comparator: "greater" }
    ],
    target: "switchStatus"
  })
  public switchPriority(priority: number) {
    // Priority switch using comparison operators
    System.log("Processing priority: " + priority);
  }

  @SwitchItem({
    cases: [
      { condition: "active", target: "processActive", variable: "status", type: "string", comparator: "equals" },
      { condition: "pending", target: "processPending", variable: "status", type: "string", comparator: "different" }
    ],
    target: "handleNotFound"
  })
  public switchStatus(status: string) {
    // String status switch with mixed operators
    System.log("Processing status: " + status);
  }

  public handleNotFound() {
    System.log("404 - Resource not found");
  }

  public handleServerError() {
    System.log("500 - Internal server error");
  }

  public handleForbidden() {
    System.log("403 - Access forbidden");
  }

  public lowPriority() {
    System.log("Low priority task (<=1)");
  }

  public mediumPriority() {
    System.log("Medium priority task (>5)");
  }

  public highPriority() {
    System.log("High priority task (>=10)");
  }

  public handleInvalidPriority() {
    System.log("Invalid priority level");
  }

  public processActive() {
    System.log("Processing active status");
  }

  public processPending() {
    System.log("Processing pending status (not equal to 'pending')");
  }

  public processInactive() {
    System.log("Processing inactive status (not strictly equal to 'inactive')");
  }

  public handleUnknownStatus() {
    System.log("Unknown status - using default handler");
  }

  public fallbackHandler() {
    System.log("Not handled error code - using fallback");
  }
}

Switch Item with String Cases

import { Workflow, SwitchItem } from "vrotsc-annotations";

@Workflow({
  name: "Switch String Cases",
  path: "VMware/PSCoE",
  description: "Switch test with string conditions and exception handling",
  attributes: {
    status: {
      type: "string"
    },
  }
})
export class SwitchStringCases {

  @SwitchItem({
    cases: [
      { condition: "active", target: "processActive", variable: "status", type: "string", comparator: "equals" },
      { condition: "pending", target: "processPending", variable: "status", type: "string", comparator: "different" },
      { condition: "inactive", target: "processInactive", variable: "status", type: "string", comparator: "equals" }
    ],
    target: "handleUnknownStatus",
    exception: "handleError"
  })
  public switchByStatus(status: string) {
    // Switch logic for string conditions
    if (status === null || status === undefined) {
      throw new Error("Status cannot be null");
    }
  }

  public processActive() {
    System.log("Processing active status");
  }

  public processPending() {
    System.log("Processing pending status");
  }

  public processInactive() {
    System.log("Processing inactive status");
  }

  public handleUnknownStatus() {
    System.log("Unknown status encountered");
  }

  public handleError() {
    System.log("Error occurred in switch processing");
  }
}
````

### `@WorkflowItem`

The decorator is used to specify a workflow item that will be called.

#### Supported Parameters

- `target` - The name of the next in line item. Same as `@Item`.
- `linkedItem` - The ID of the workflow to call.
- `exception` - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to `null` or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

In order to bind inputs and outputs, you do it with the `@In` and `@Out` decorators. This is the same way we do it for other items.

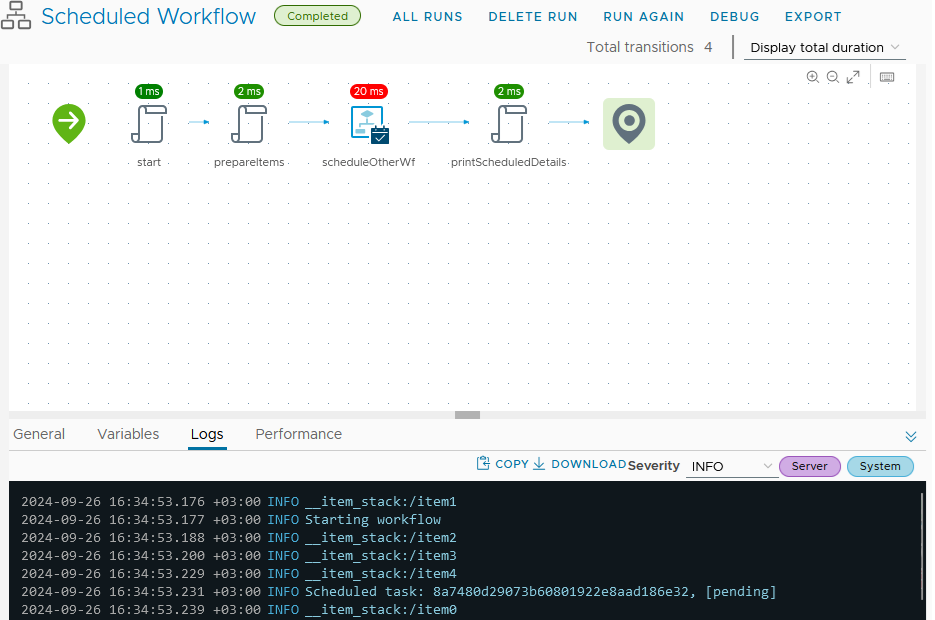

### `@ScheduledWorkflowItem`

The decorator is used to specify a scheduled workflow item that will be called.

#### Supported Parameters

- `target` - The name of the next in line item. Same as `@Item`.
- `linkedItem` - The ID of the workflow to schedule.
- `exception` - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to `null` or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

In order to bind inputs and outputs, you do it with the `@In` and `@Out` decorators. This is the same way we do it for other items.

#### Inputs

Special input is needed for the ScheduledWorkflowItem.

- `workflowScheduleDate` - {Date} is required. The name **must** be `workflowScheduleDate`. If this is missing an error is thrown. We don't check if the type is `Date` but Aria Orchestrator will complain.

#### Outputs

Special output is needed for the ScheduledWorkflowItem.

- `scheduledTask` - {Task} is optional. If it's missing nothing will happen, if it's added, then the name **must** be `scheduledTask`. This is the task that is scheduled.

#### Example

```ts
import {
  Workflow,
  Out,
  In,
  Item,
  RootItem,
  ScheduledWorkflowItem,
} from "vrotsc-annotations";

@Workflow({
  name: "Scheduled Workflow",
  path: "VMware/PSCoE",
  description: "Scheduling another workflow and binding values correctly",
  attributes: {
    workflowScheduleDate: {
      type: "Date",
    },
    scheduledTask: {
      type: "Task",
    },
  },
})
export class ScheduledWorkflow {
  @RootItem({ target: "prepareItems" })
  public start() {
    System.log("Starting workflow");
  }

  @Item({ target: "scheduleOtherWf" })
  public prepareItems(@In @Out workflowScheduleDate: Date) {
    workflowScheduleDate = System.getDate("1 minute from now", null);
  }

  @ScheduledWorkflowItem({
    target: "printScheduledDetails",
    linkedItem: "c2c9d5c4-468e-3cde-a64a-d1de50989214",
  })
  public scheduleOtherWf(
    @In first: number,
    @In second: number,
    @In workflowScheduleDate: Date,
    @Out scheduledTask: Task
  ) {
    // NOOP
  }

  @Item({ target: "end" })
  public printScheduledDetails(@In scheduledTask: Task) {
    System.log(`Scheduled task: ${scheduledTask.id}, [${scheduledTask.state}]`);
  }
}

The example above would generate the following workflow.

@RootItem

This is a meta decorator. Add this to whichever function you want to be the entry point of the workflow.

@AsyncWorkflowItem

Supported Parameters

• @AsyncWorkflowItem({target: "", linkedItem: "" })
  • target - The name of the next in line item.
  • linkedItem - The ID of the workflow to call
  • exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

Outputs

Special output is needed for the AsyncWorkflowItem.

• wfToken - {WorkflowToken} is required. The name must be wfToken. If this is missing an error is thrown. We don't check if the type is WorkflowToken but Aria Orchestrator will complain.

Inputs

No special inputs are needed for the AsyncWorkflowItem.

@ActionItem

Supported Parameters

• @ActionItem({target: "", scriptModule: "" })
  • target - The name of the next in line item. Same as @Item.
  • scriptModule - The path of the action you want to call and the action name, separated by /. Example: com.vmware.pscoe.library.general/echo.
  • exception - The name of the next in line item in case an exception is encountered during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

In order to bind inputs and outputs, you do it with the @In and @Out decorators. This is the same way we do it for other items.

Outputs

There is a requirement to have only one output, and it will be of type ActionResult.

@UserInteractionWorkflowItem

The decorator is used to specify an user interaction workflow item.

Supported Parameters

• target - The name of the target to that user interaction workflow item is connected to. You can specify another user interaction workflow item as a target, thus chaining multiple user interaction components.
• exception - The name of the next in line item in case an exception or a timeout is encountered occured during the execution of the current item. If this is set to null or empty string, the parameter is ignored. If this is set to a string, but it does not exist in the workflow, it will point to the end of the workflow.

In order to bind inputs and outputs, you do it with the @In and @Out decorators.

Inputs

If you need to specify certain access limitation for the user interaction component you can specify them with @In decorators. Those inputs are optional.

• security_assignees (type Array/LdapUser) - Any user from this array of users will be authorized to fill in this form.
• security_assignee_groups (type Array/LdapGroup) - Any user member of any of the groups will be authorized to fill in this form.
• security_group (type LdapGroup) - Any user member of this group will be authorized to fill in this form.
• timeout_date (type Date) - If not null, this input item will wait until date and will continue workflow execution.

Note that those parameters should match the input or attribute parameters of the workflow to ensure proper typization.

Known Limitations for the Input Parameters

The names of the variables in the additional method decorators should be as following:

• security_assignees - for the security assignees parameter.
• security_assignee_groups - for the security assignee group parameter.
• security_group - for the security group parameter.
• timeout_date - for the timeout date parameter.

Outputs

You can specify multiple output variables that would hold the answer of the user interaction components.

Example

import {
    Workflow,
    In,
    Item,
    RootItem,
    UserInteractionItem,
} from "vrotsc-annotations";

@Workflow({
    name: "User Interaction",
    path: "VMware/PSCoE",
    description: "Adding user interaction parameters",
    input: {
      security_assignee_groups: {
        type: "Array/LdapGroup"
      },
      security_group: {
        type: "LdapGroup"
      },
      timeout_date: {
        type: "Date"
      }
    },
    attributes: {
      security_assignees: {
        type: "Array/LdapUser",
        value: "configurationadmin"
      }
    }
})
export class UserInteractionWorkflow {

    @RootItem({ target: "userInteraction1Enter", exception: "" })
    public start() {
        System.log("Starting workflow");
    }

    @UserInteractionItem({
        target: "userInteraction2Enter",
    })
    public userInteraction1Enter() {
        System.log("User interaction component 1 activation");
    }

    @UserInteractionItem({
        target: "userInteractionExit",
    })
    public userInteraction2Enter(
        @In security_assignees: LdapUser[],
        @In security_assignee_groups: LdapGroup[],
        @In security_group: LdapGroup,
        @In timeout_date?: Date,
        @In userInteractionAnswer?: string
    ) {
        System.log("User interaction component 2 activation");
    }

    @Item({ target: "end" })
    public userInteractionExit(@In userInteractionAnswer: string) {
        System.log("User Interaction exit");
    }
}

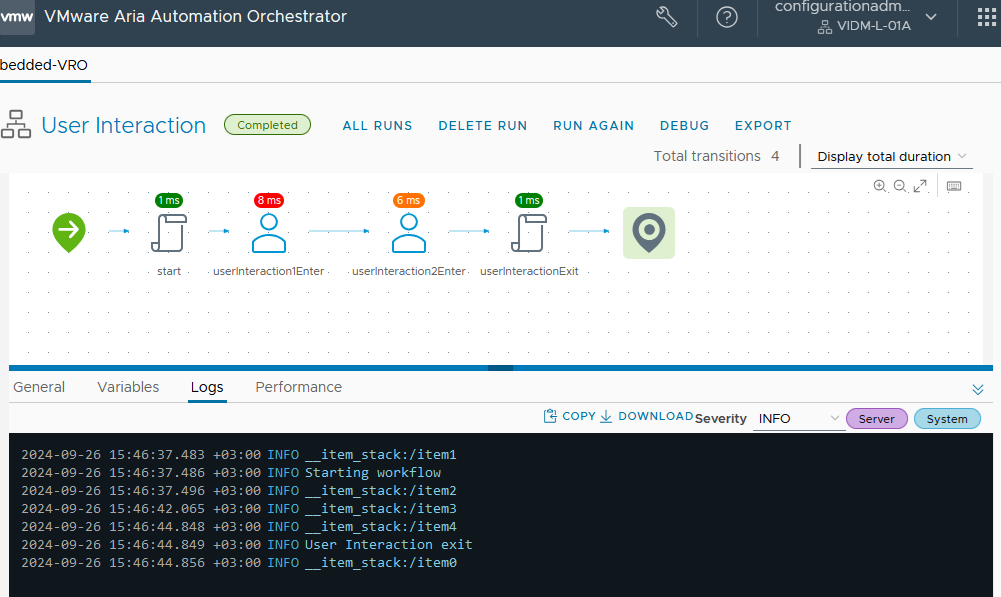

The example above would generate the following workflow.

Custom Form Support

You can push Workflow Custom Form and User Interaction Custom Forms provided as separate files containing the forms as JSON definitions. The files need to be placed in the same folder as the related .wf.ts file and must follow naming conventions:

• Workflow Custom Form: {{ workflowFileName }}.wf.form.json where:
  • workflowFileName - is the actual file name of the .wf.ts definition file (which might be different from the Workflow name defined in the name key inside the @Workflow decorator parameters).
• User Interaction Custom Form - supports two conventions, if a file with the first convention is not found, the code validates for a file that follows the second:
  • {{ workflowFileName }}_input_form_{{ userInteractionItemId }}.wf.form.json where:
    • workflowFileName - is the actual file name of the .wf.ts definition file (which might be different from the Workflow name defined in the name key inside the @Workflow decorator parameters).
    • userInteractionItemId - the ID of the User Interaction component as defined in the UI (autogenerated if the component is manually added to the Workflow schema) or in the JSON definition under itemId key.
  • {{ workflowFileName }}_input_form_{{ userInteractionName }}.wf.form.json where:
    • workflowFileName - is the actual file name of the .wf.ts definition file (which might be different from the Workflow name defined in the name key inside the @Workflow decorator parameters).
    • userInteractionName - the name of the User Interaction component - corresponds to the decorated function name in the .wf.ts file and is translated to the display name of the User Interaction component in the Orchestrator UI. Please note that the function name (and thus - display name) cannot contain whitespaces and comes with any other function naming limitation of Typescript functions.

Only a single Workflow Custom Form is supported per Workflow and a single User Interaction Custom Form per User Interaction element (which can lead to having multiple User Interaction Custom Form definition files mapped to a single wf.ts file based on the number of User Interactions in the Workflow).

If no User Interaction Custom Form file definition is provided (or the naming convention is not properly followed) the following default empty definition is used which can then be editted in the Orchestrator UI:

{
    "schema": {},
    "layout": {
        "pages": []
    },
    "itemId": "{{ itemId }}"
}

:scroll:NOTE! Currently pull operation for Custom Forms is not supported. As a workaround you can: - use an XML based project to pull the forms, move them to the proper folder and rename them to match the naming convention. - Navigate to the Orchestrator UI, open the Workflow edit page and navigate to Version History from where you can extract the YAML definition, convert it to JSON and place it in a file.

Example

Example file structure based on the UserInteractionWorkflow Workflow sample above:

service-automation
├── README.md
├── pom.xml
├── release.sh
├── tsconfig.json
└── src
    └── integration-service-1
        └── workflows
            └── CreateIntegration.wf.ts
            └── CreateIntegration.wf.form.json
            └── CreateIntegration_input_form_item2.wf.form.json                   // Corresponds to 'userInteraction1Enter' item
            └── CreateIntegration_input_form_userInteraction2Enter.wf.form.json   // Corresponds to 'userInteraction2Enter' item

Example User Interaction Custom Form definition:

{
    "layout": {
        "pages": [
            {
                "id": "page_3efd02e1",
                "sections": [
                    {
                        "id": "section_f2d0f1d1",
                        "fields": [
                            {
                                "id": "textArea_f5932870",
                                "display": "textArea",
                                "state": {
                                    "visible": true,
                                    "read-only": false
                                },
                                "signpostPosition": "right-middle"
                            }
                        ]
                    }
                ],
                "title": "Approval details",
                "state": {}
            }
        ]
    },
    "schema": {
        "textArea_f5932870": {
            "label": "User name",
            "placeholder": "",
            "type": {
                "dataType": "string"
            },
            "constraints": {}
        }
    },
    "options": {
        "externalValidations": []
    },
    "itemId": "item2"
}

Example Workflow

This example workflow combines all currently supported method decorators in a single workflow.

/*-
 * #%L
 * vro.ts.workflows
 * %%
 * Copyright (C) 2024 TODO: Enter Organization name
 * %%
 * TODO: Define header text
 * #L%
 */
import {
  Workflow,
  Out,
  In,
  Item,
  RootItem,
  DecisionItem,
  WaitingTimerItem,
  WorkflowItem,
  WorkflowEndItem,
  ScheduledWorkflowItem,
} from "vrotsc-annotations";

@Workflow({
  name: "Complex Workflow",
  path: "VMware/PSCoE",
  attributes: {
    waitingTimer: {
      type: "Date",
    },
    counter: {
      type: "number",
    },
    first: {
      type: "number",
    },
    second: {
      type: "number",
    },
    result: {
      type: "number",
    },
    workflowScheduleDate: {
      type: "Date",
    },
    scheduledTask: {
      type: "Task",
    },
    errorMessage: {
      type: "string",
    },
    wfToken: {
      type: "WorkflowToken",
    },
    actionResult: {
      type: "ActionResult",
    },
  },
})
export class ComplexWorkflow {
  @RootItem({ target: "execute" })
  public start() {
    System.log("Starting workflow");
  }

  @Item({ target: "decisionItem" })
  public execute(@Out @In waitingTimer: Date, @Out @In counter: number): void {
    if (!counter) {
      counter = 0;
    }
    counter++;
    if (counter < 2) {
      const tt = Date.now() + 5 * 1000;
      waitingTimer = new Date(tt);
    } else {
      waitingTimer = null;
    }
    System.log("Counter: " + counter);
    System.log("Waiting Timer: " + waitingTimer);
  }

  @DecisionItem({ target: "waitForEvent", else: "prepareItems" })
  public decisionItem(waitingTimer: Date) {
    return waitingTimer !== null;
  }

  @WaitingTimerItem({ target: "callAction" })
  public waitForEvent(@In waitingTimer: Date) {
    // NOOP
  }

  @ActionItem({
    target: "printActionResult",
    scriptModule: "com.vmware.pscoe.library.ecmascript/Set",
  })
  public callAction(
    @In first: number,
    @In second: number,
    @Out actionResult: ActionResult
  ) {
    // NOOP
  }

  @Item({ target: "callOtherWf" })
  public prepareItems(
    @In @Out first: number,
    @In @Out second: number,
    @In @Out workflowScheduleDate: Date
  ) {
    first = 1;
    second = 2;
    workflowScheduleDate = System.getDate("1 minute from now", undefined);
  }

  @WorkflowItem({
    target: "print",
    linkedItem: "c2c9d5c4-468e-3cde-a64a-d1de50989214",
  })
  public callOtherWf(
    @In first: number,
    @In second: number,
    @Out result: number
  ) {
    // NOOP
  }

  @Item({ target: "scheduleOtherWf" })
  public print(@In result: number) {
    System.log("Result: " + result);
  }

  @ScheduledWorkflowItem({
    target: "printScheduledDetails",
    linkedItem: "9e4503db-cbaa-435a-9fad-144409c08df0",
  })
  public scheduleOtherWf(
    @In first: number,
    @In second: number,
    @In workflowScheduleDate: Date,
    @Out scheduledTask: Task
  ) {
    // NOOP
  }

  @Item({ target: "asyncCall" })
  public printScheduledDetails(@In scheduledTask: Task) {
    System.log(`Scheduled task: ${scheduledTask.id}, [${scheduledTask.state}]`);
  }

  @AsyncWorkflowItem({
    target: "printAsync",
    linkedItem: "9e4503db-cbaa-435a-9fad-144409c08df0",
  })
  public asyncCall(
    @In first: number,
    @In second: number,
    @Out wfToken: WorkflowToken
  ) {
    // NOOP
  }

  @Item({ target: "printActionResult" })
  public printAsync(@In wfToken: WorkflowToken) {
    System.log(`Workflow token: ${wfToken.id} and state: ${wfToken.state}`);
  }

  @Item({ target: "end" })
  public printActionResult(@In actionResult: ActionResult) {
    System.log(`Action result: ${JSON.stringify(actionResult, null, 4)}`);
  }
}

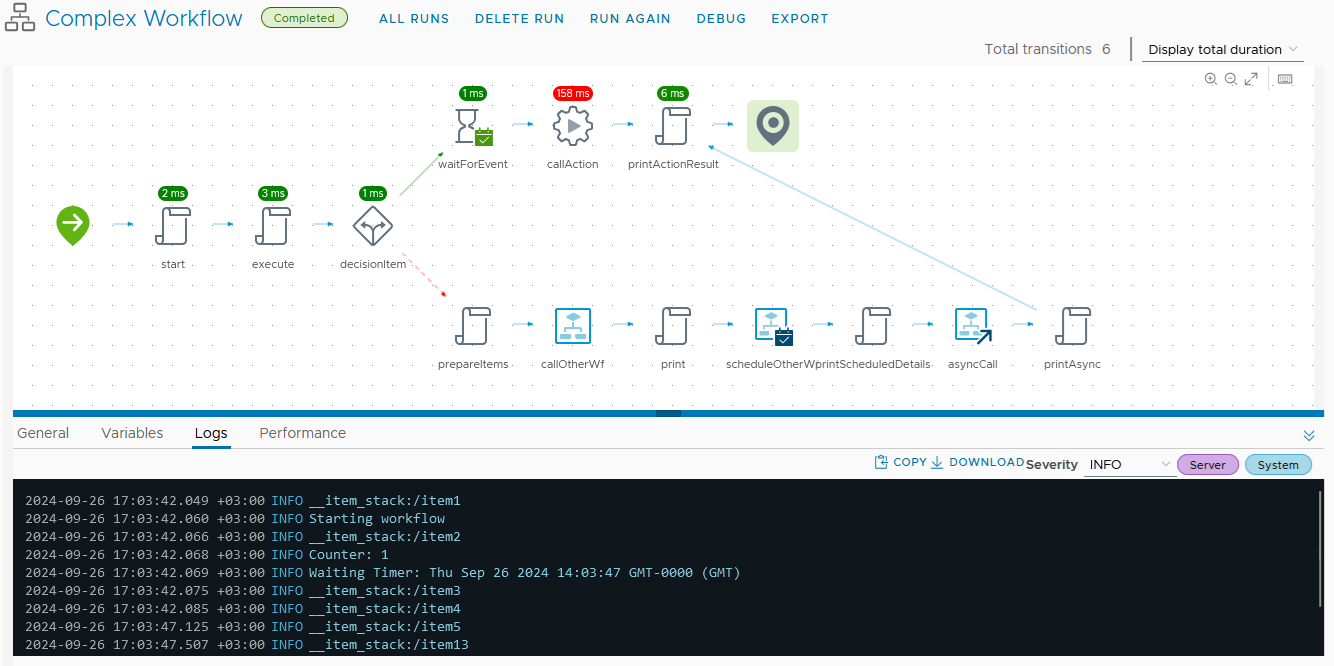

The example above would generate the following workflow.
